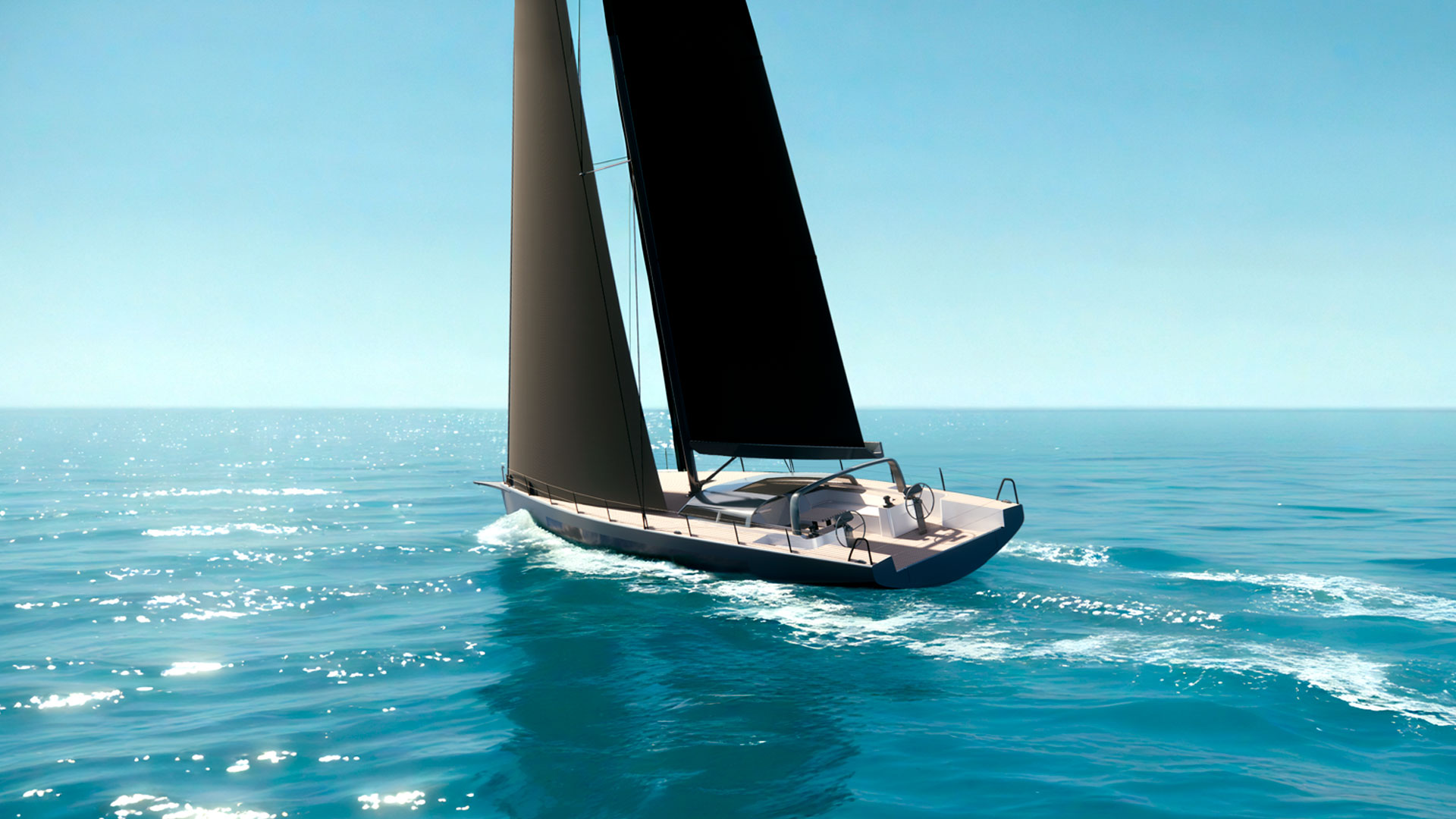

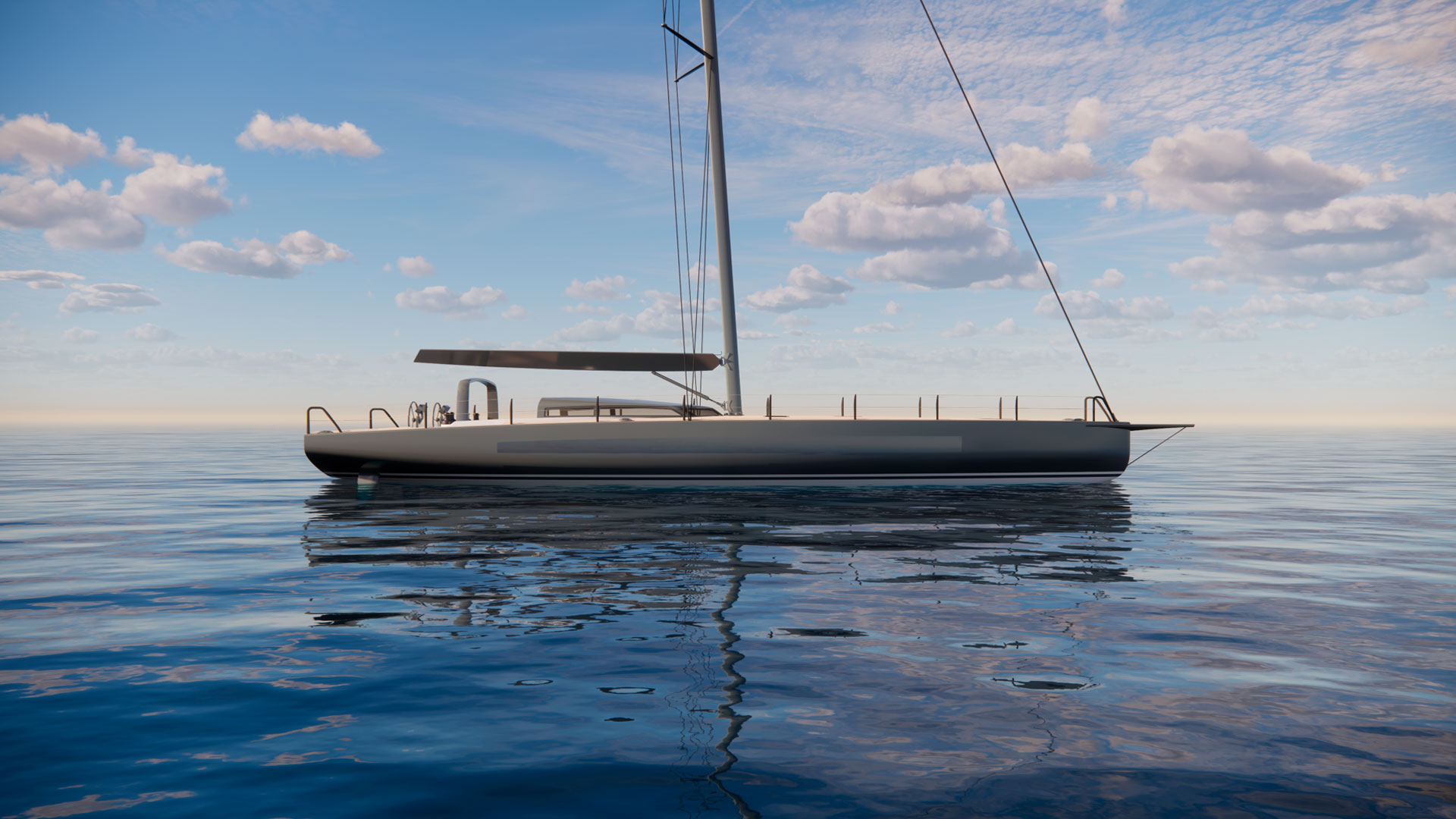

Exterior
Dimensions
Polar Diagram
Fluid Dynamics
Layouts

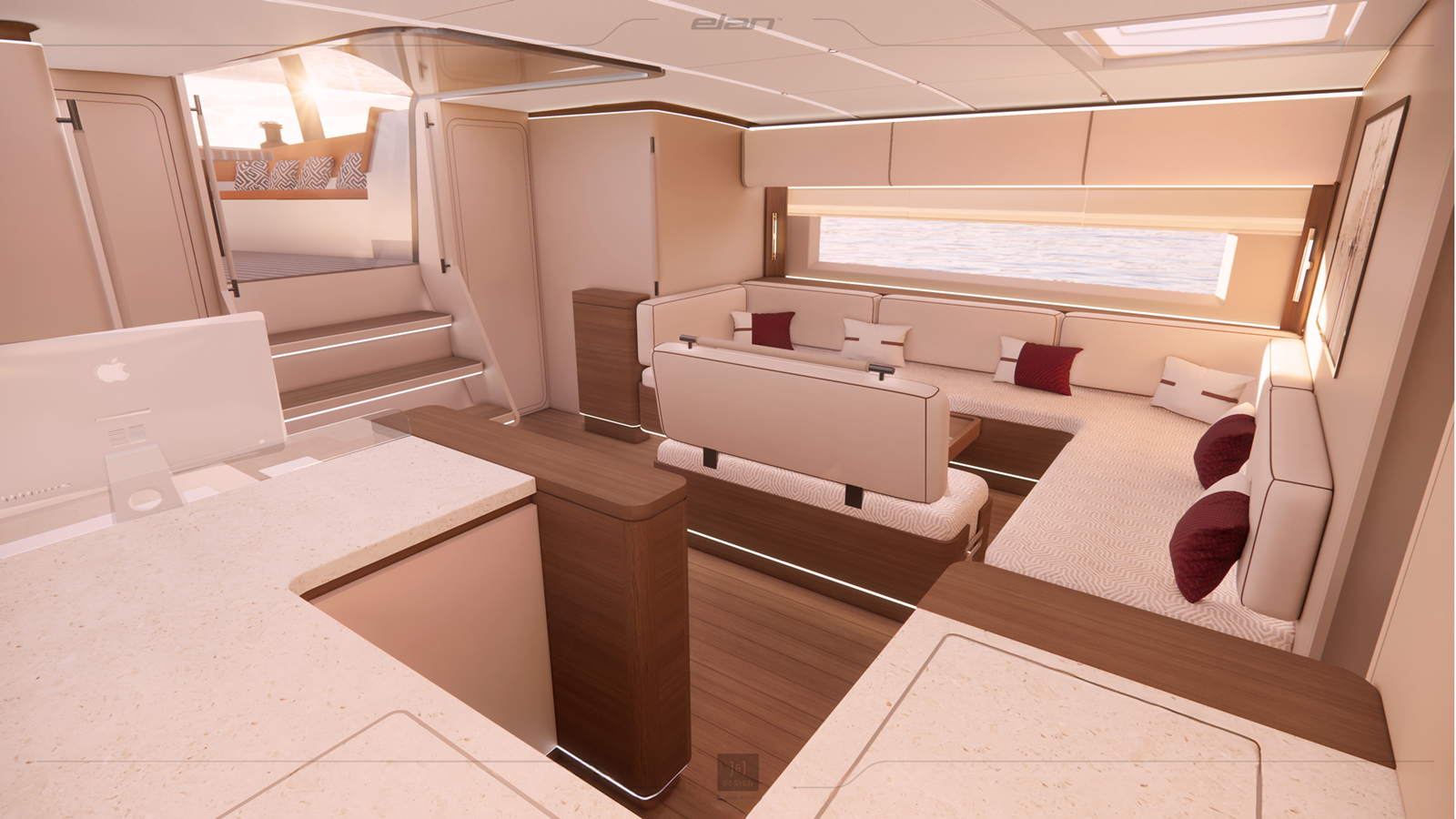

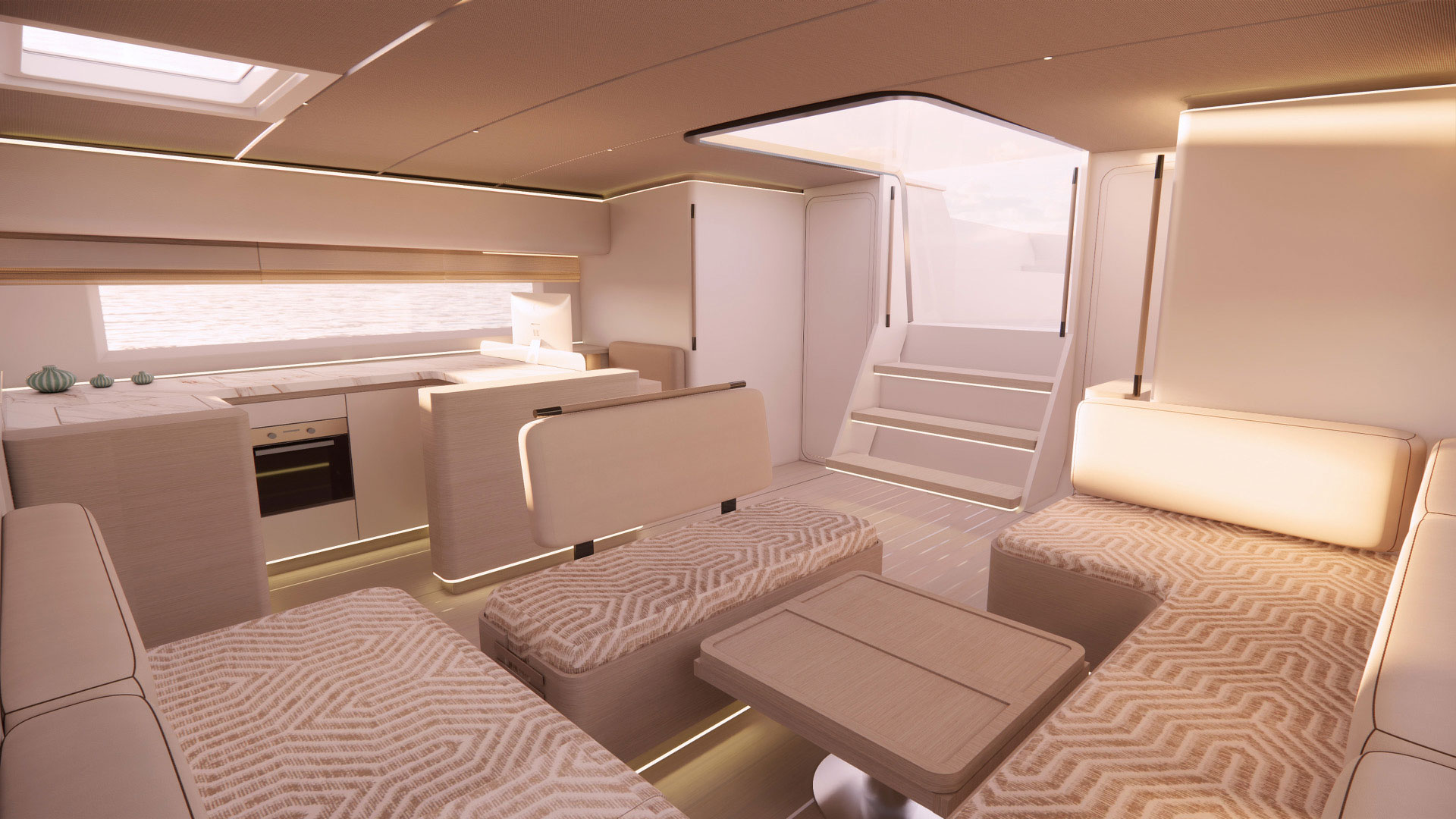

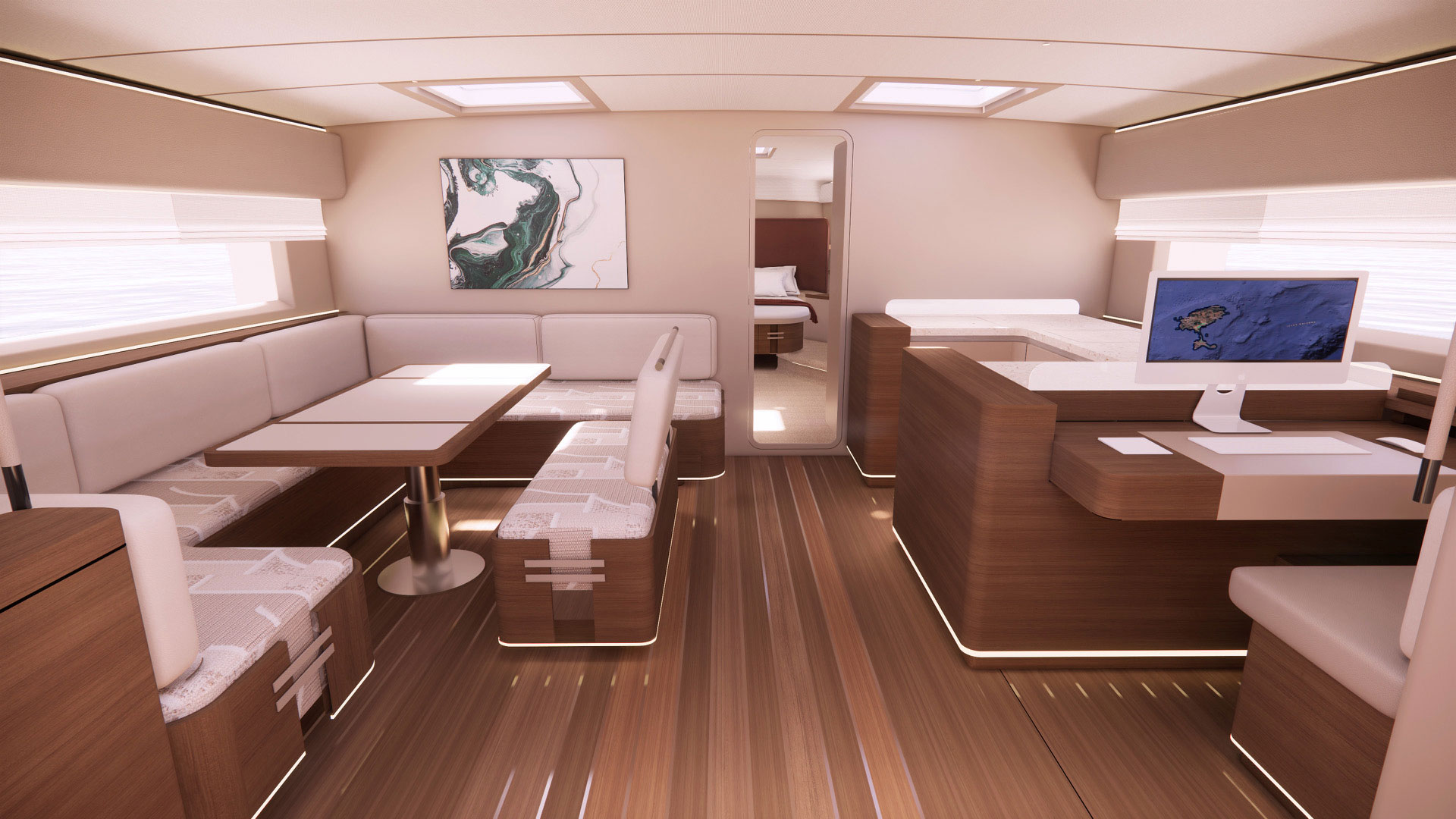

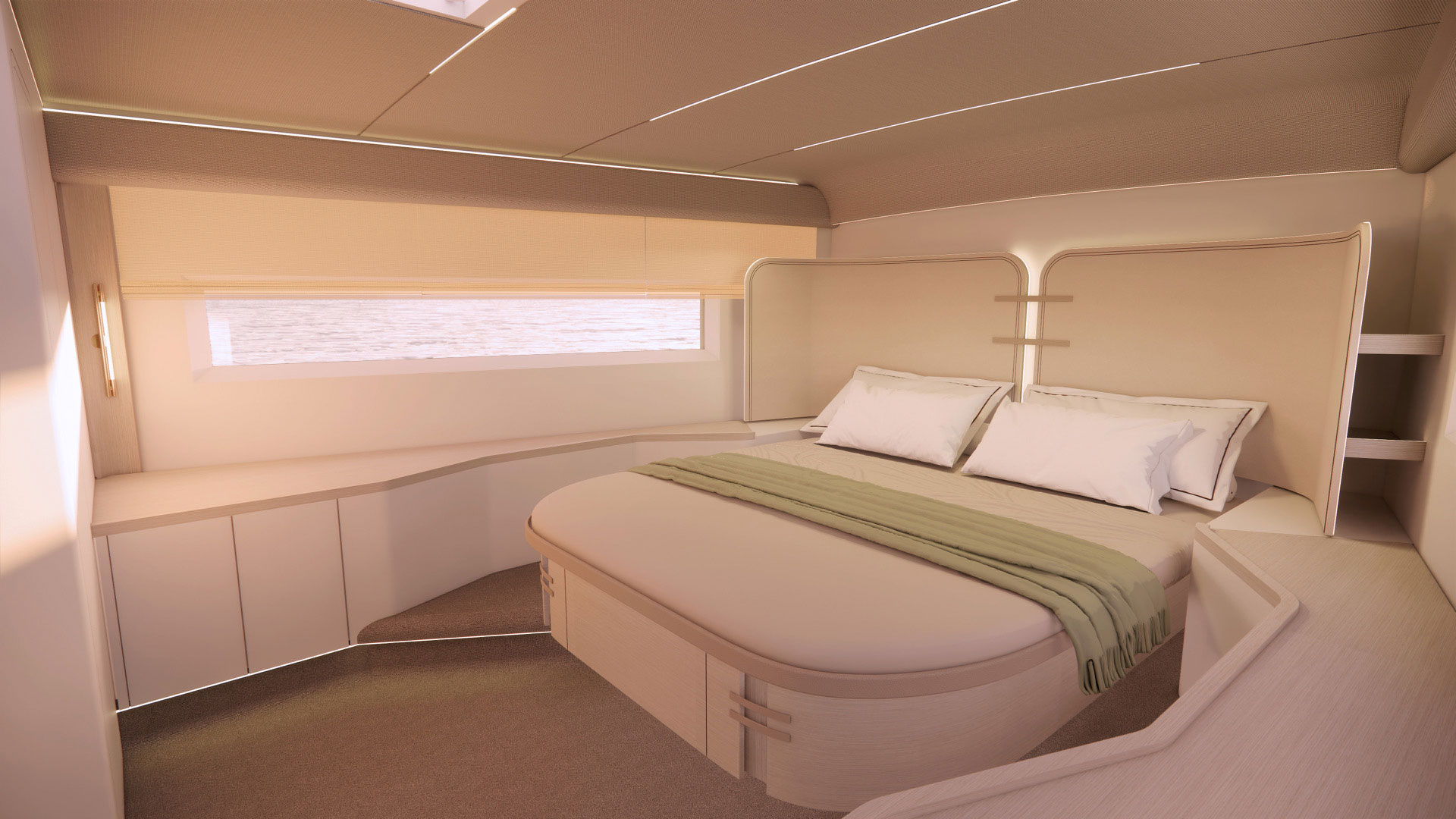

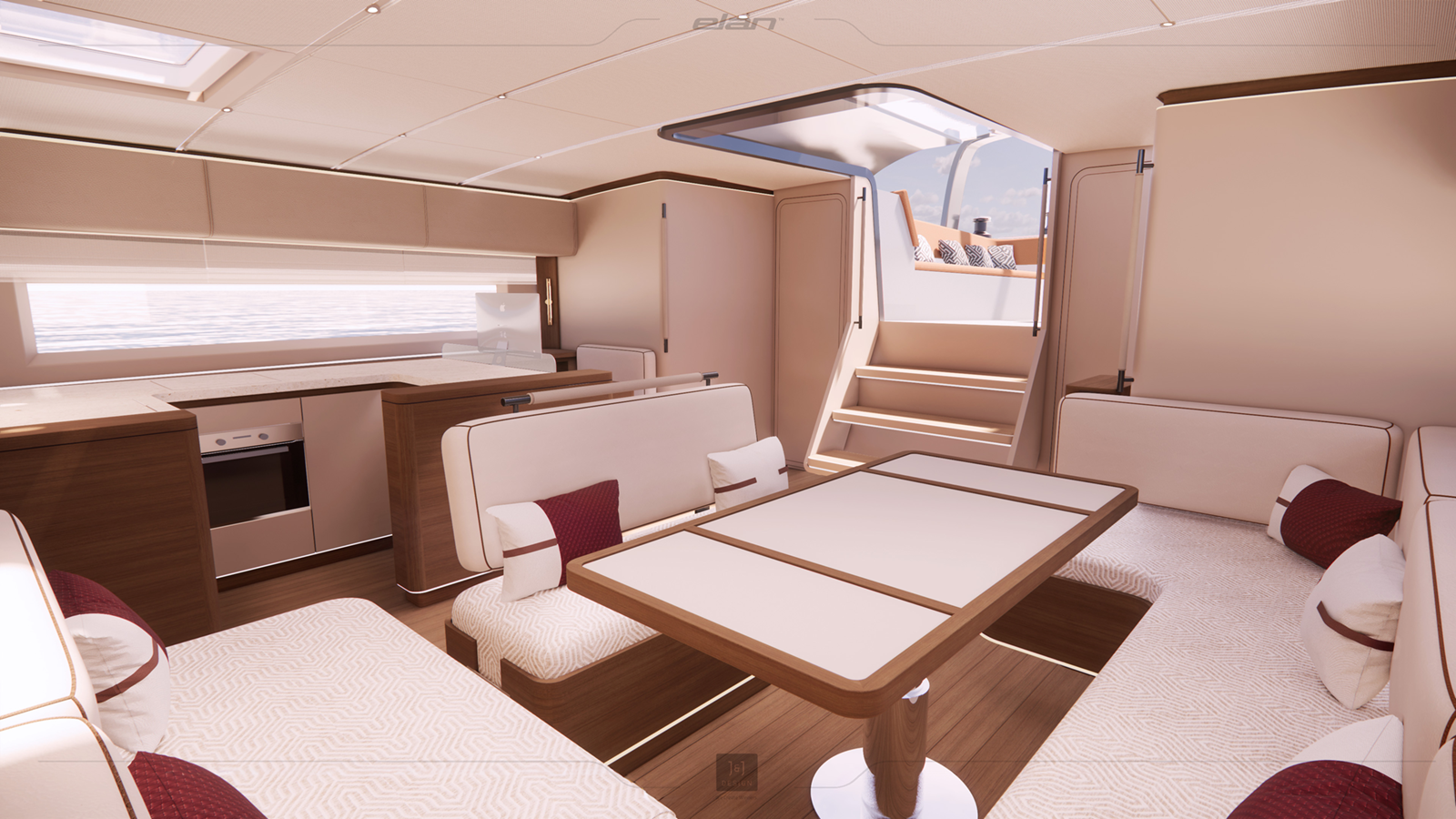

Interior
Download

SixtyFive

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Main dimensions

Length Overall

15.18 m | 49’10’’

Hull length

14.83 m | 48’8’’

Length at waterline

13.76 m | 45’2’’

Beam

4.68 m | 15’4’’

Draft (standard)

2.23 m | 7’4’’

Draft (option)

1.84 m | 6’1’’

Light displacement

12.660 kg | 27.910 lbs

Ballast (standard)

4.500 kg | 9.920 lbs

Ballast (option)

4.800 kg | 10.582 lbs

Water capacity

605 liters | 160 US gal

Fuel capacity

255 liters | 67 US gal

Engine (standard)

Yanmar 4JH80

58.8 kW / 80 mhp

Engine (electric option)

15 kW twin Oceanvolt electric

Air Draft (incl. antenna 22.9 m | 75’2’’

Mainsail

57.96 m² | 623.9 ft²

Mainsail (Furling)

55.94 m² | 602.2 ft²

Genoa

50.65 m² | 545.2 ft²

Gennaker

173 m² | 1862.1 ft²

I

19 m | 62’4’’

J

5.61 m | 18’5’’

P

17.9 m | 58’9’’

E

6.25 m | 20’6’’

Design

Humphreys Yachts Design & Elan Design Team

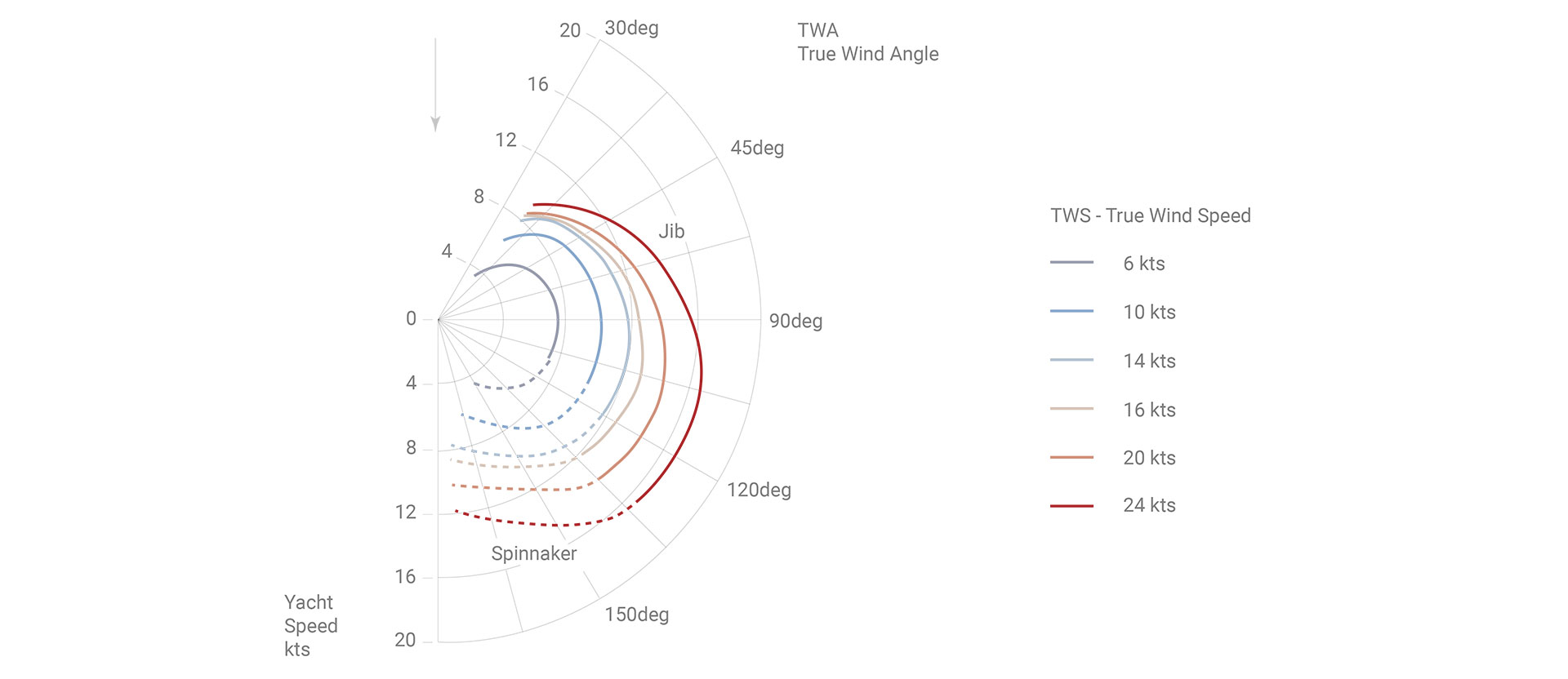

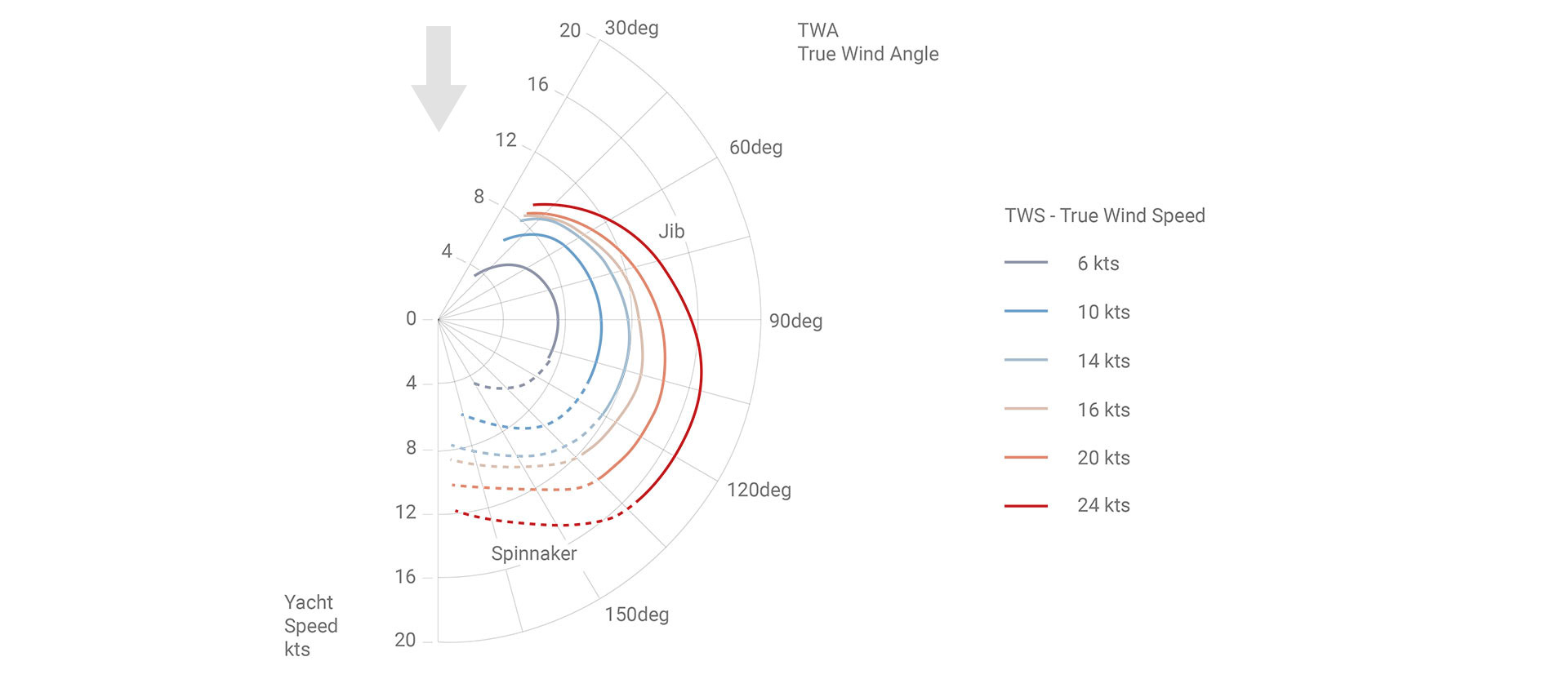

Polar diagram

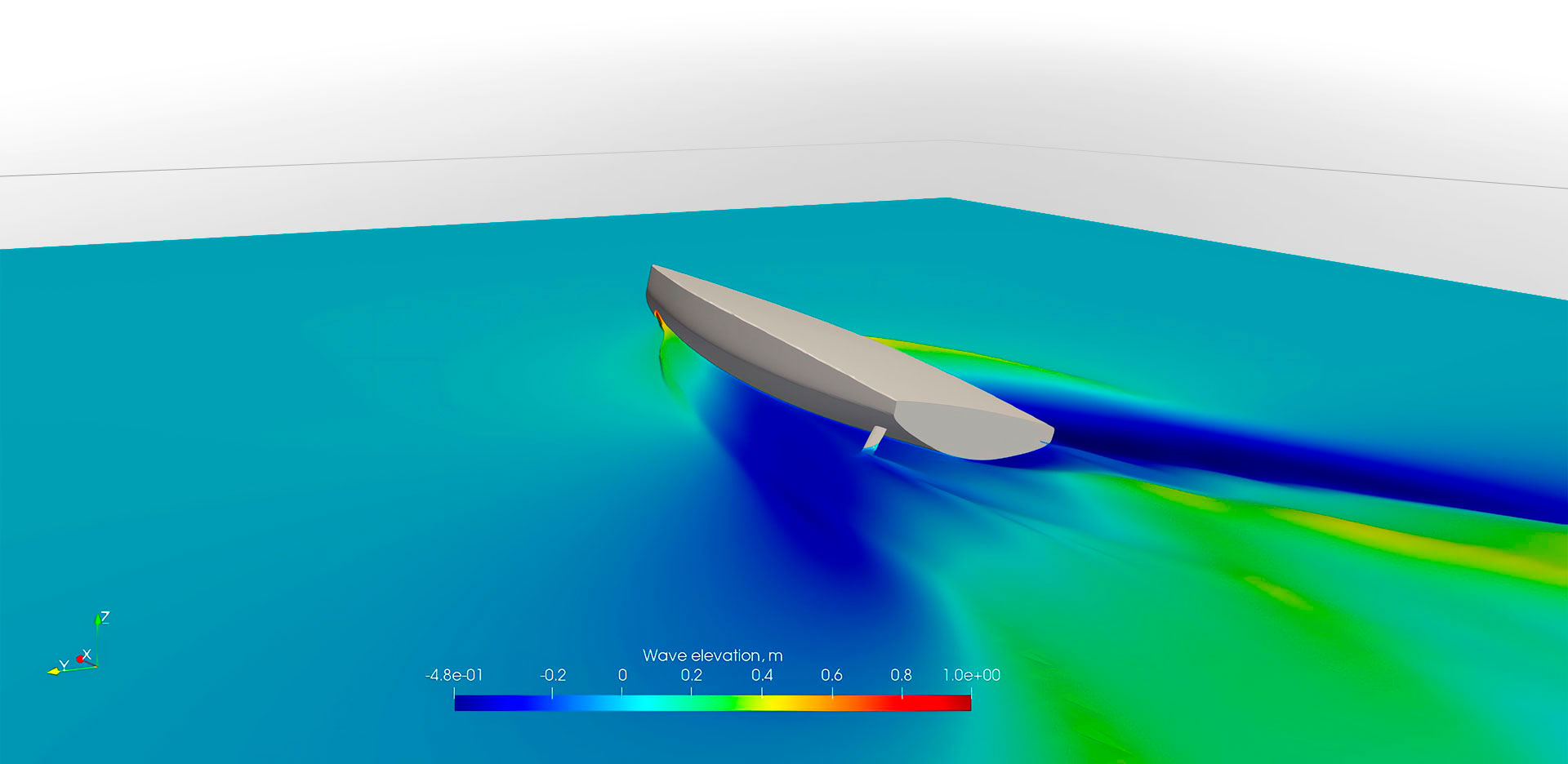

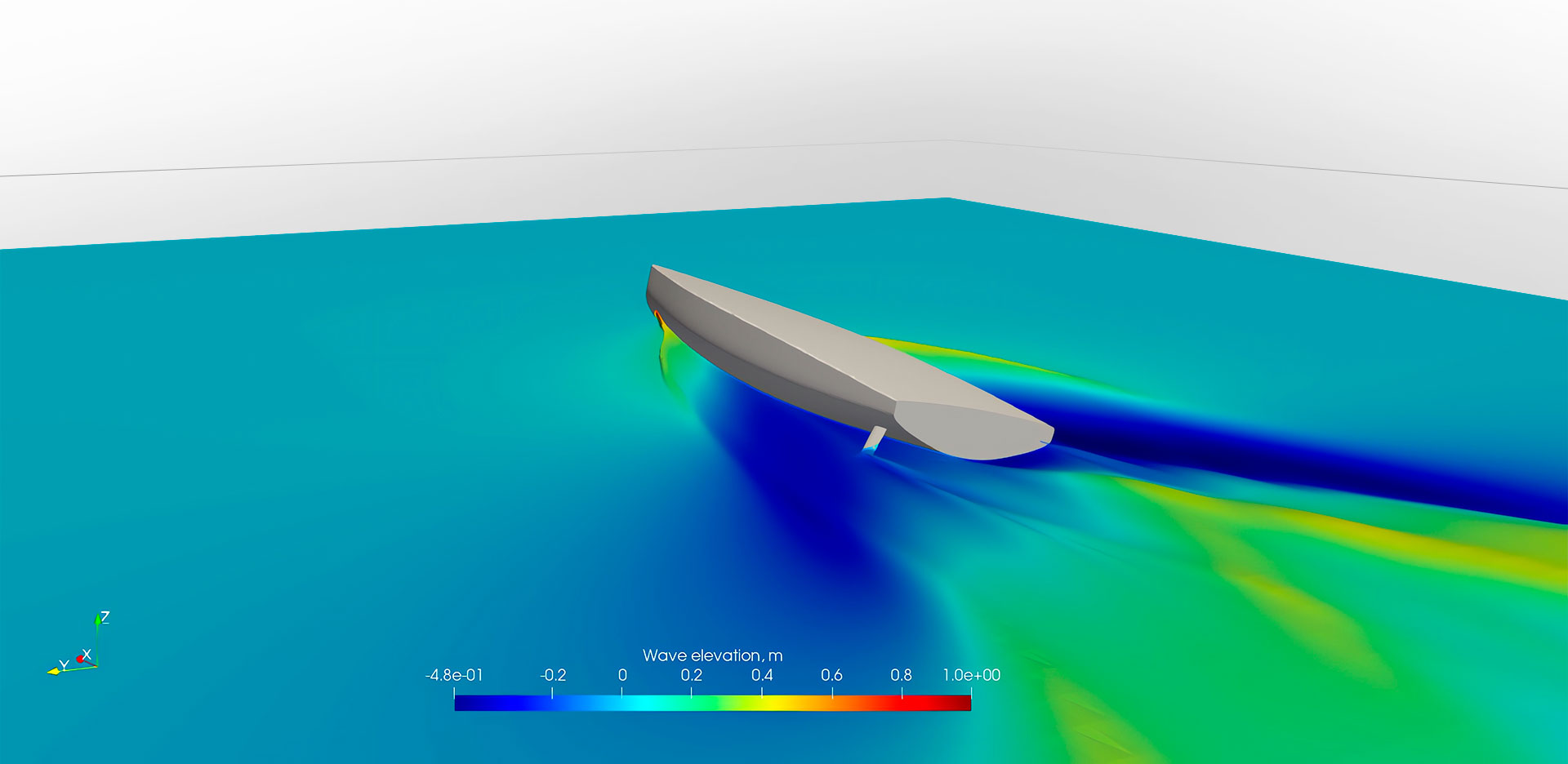

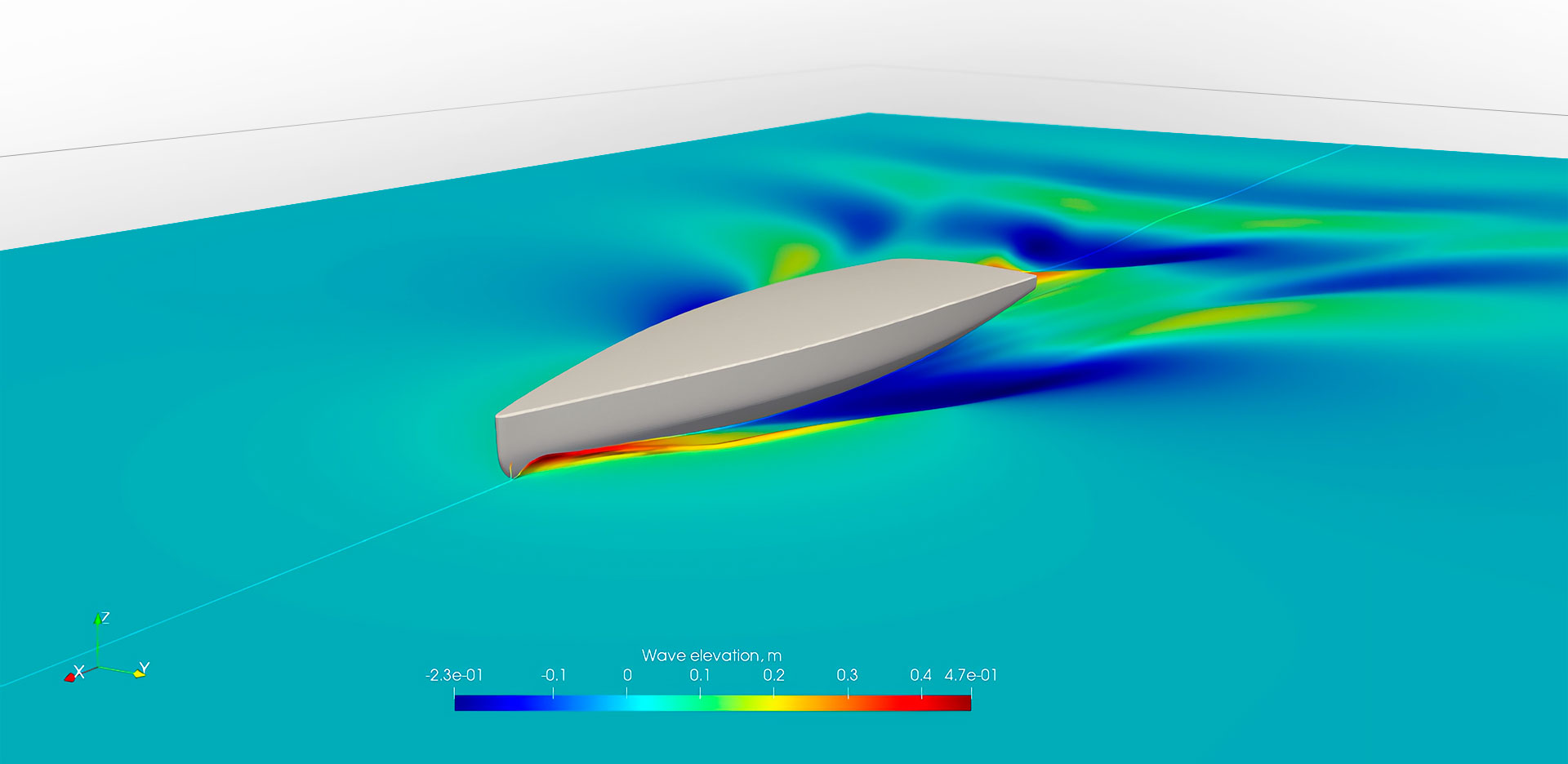

Computational fluid dynamics

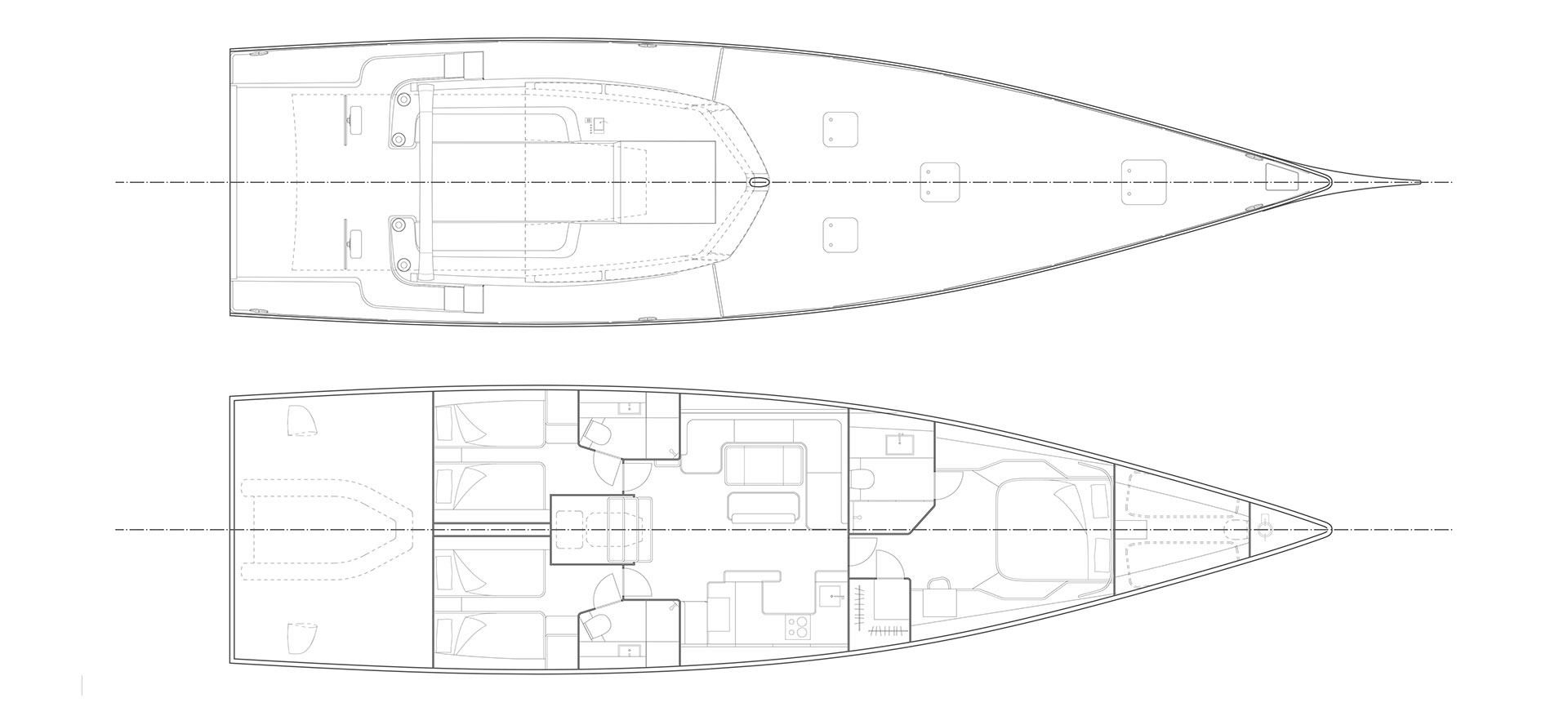

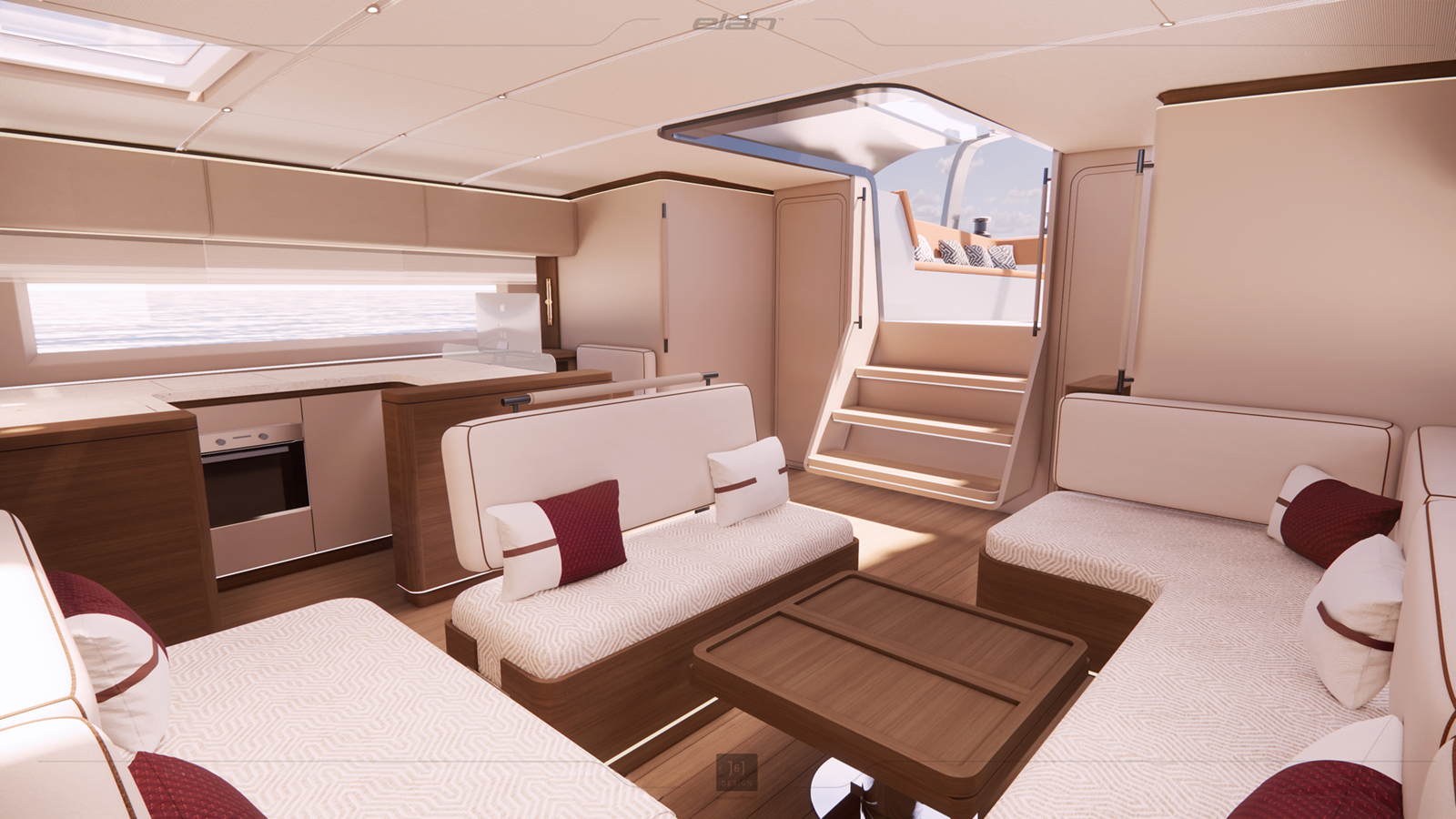

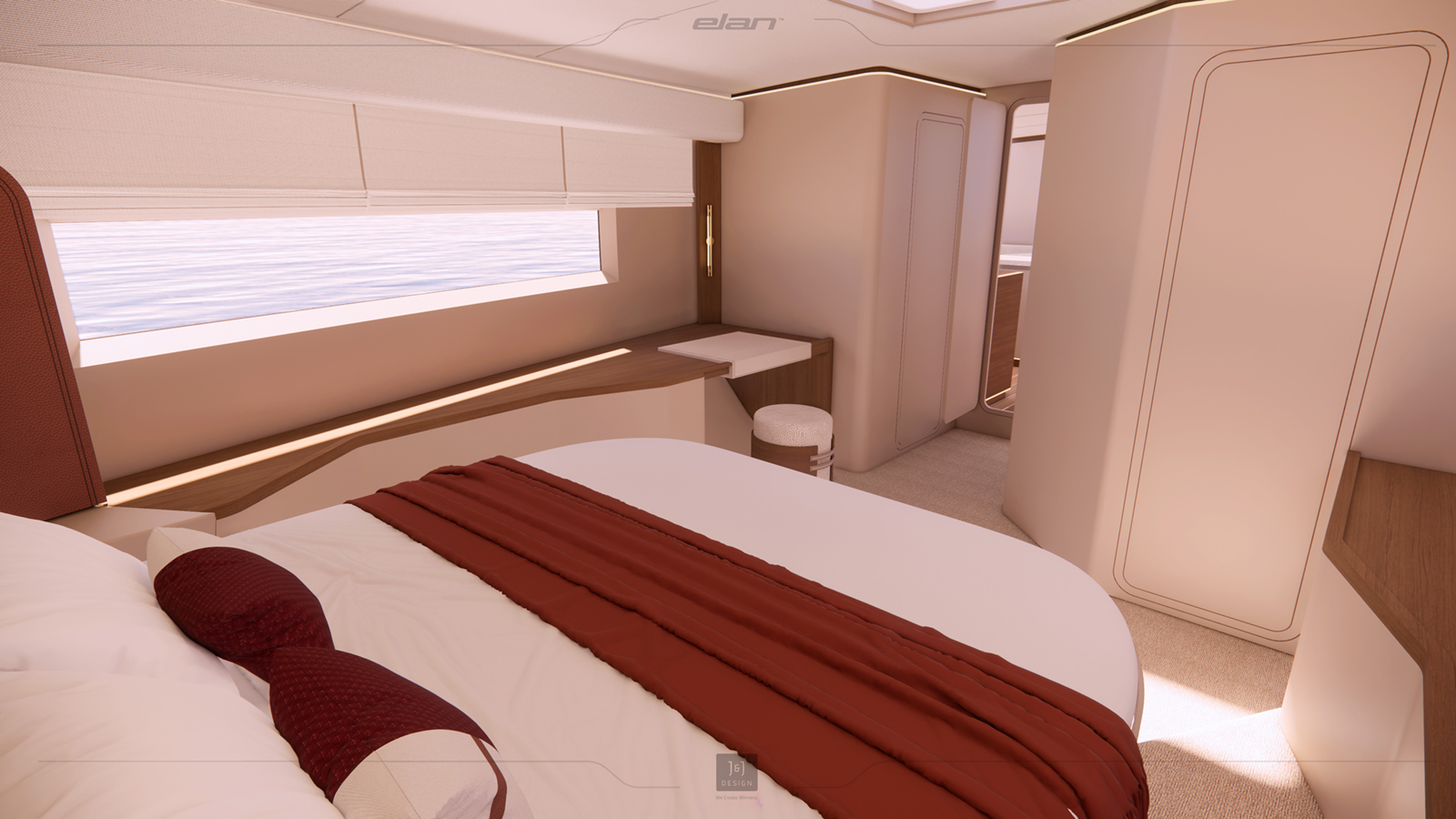

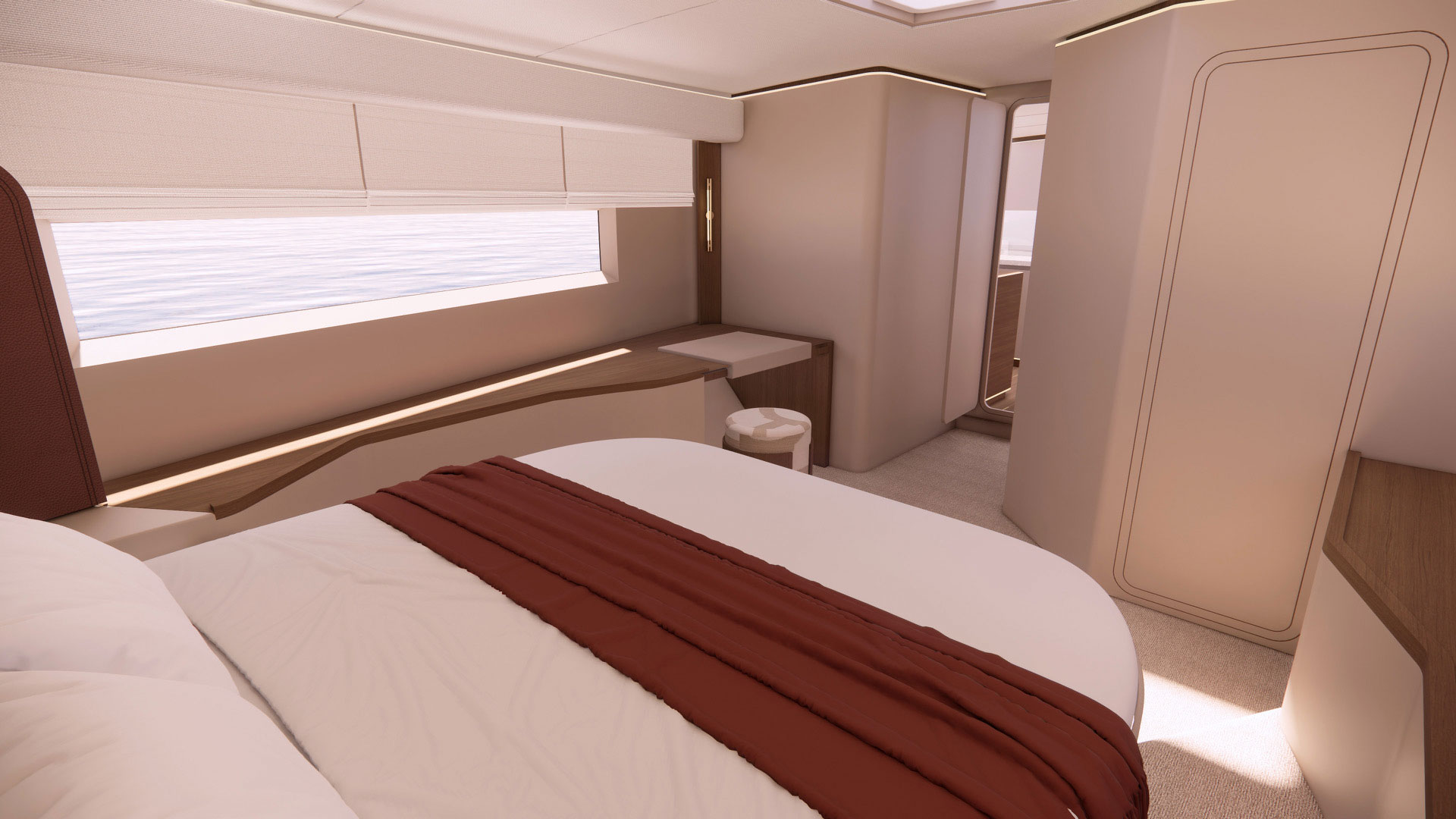

Deck & Interior layouts

Download

Standard and Options
