Elan GT6 Explorer

Elan Yachts 3D VAIL Technology
3D VAIL
Vacuum Assisted Infusion Lamination icon for Elan Yacht HULLS
VAIL HULL
Schematic icon showing twin rudders for elan yachts
TWIN RUDDERS
dinghy-arch
Dinghy Arch

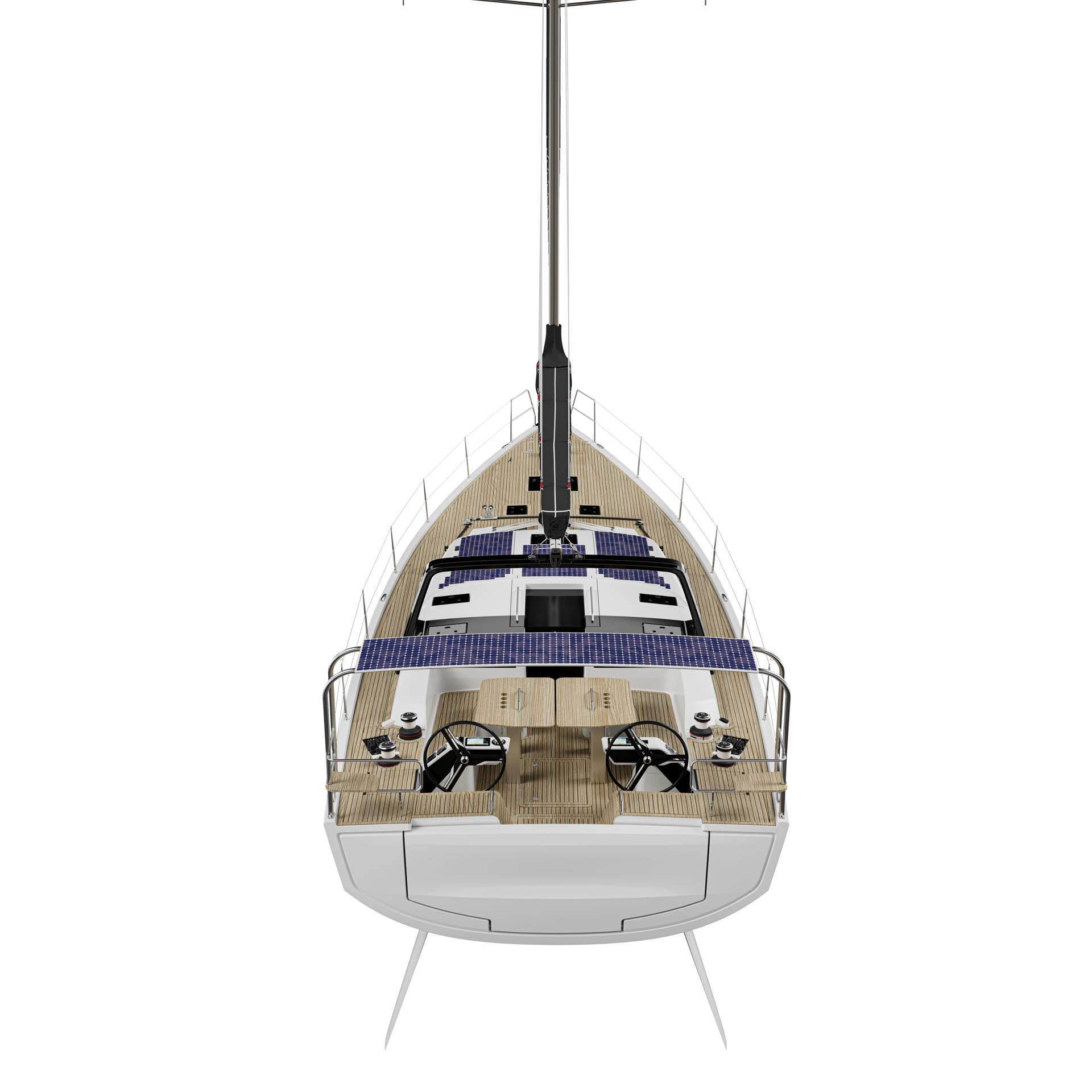

Schematic view of twin helms Elan Yachts have
TWIN HELM
Composite Bulkheads
Composite bulkheads
elan-yachts-qality
Quality
icon showing ease of sail and shorthanded with elan yachts
Easy to sail
elan yachts are great for cruising
Comfort
elan yachts deck saloon icon
Deck saloon
Safety
  • 3D VAIL

    Elan Yachts 3D VAIL Technology

    In essence, 3D VAIL technology integrates the inner yacht structure, stringers and stringer supports into the hull itself using vacuum-assisted infusion. When fully applied, this complicated and expensive process creates a one-piece laminated structure out of all the load-bearing elements of the yacht, increasing the stiffness and lightness and ensuring the best mechanical properties.

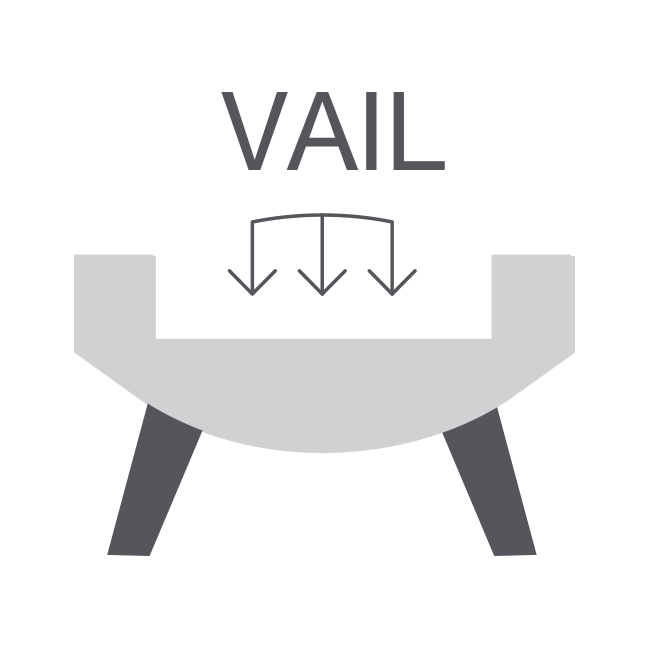

  • VAIL HULL

    Vacuum Assisted Infusion Lamination icon for Elan Yacht HULLS

    As the only sure way to prevent osmosis, and to ensure uniform stiffness, lightness and safety, Elan was one of the first serial yacht manufacturers to adopt the Vacuum-Assisted Infusion Lamination back in 2003. VAIL enables the complete saturation of resin and removes human error from the process.

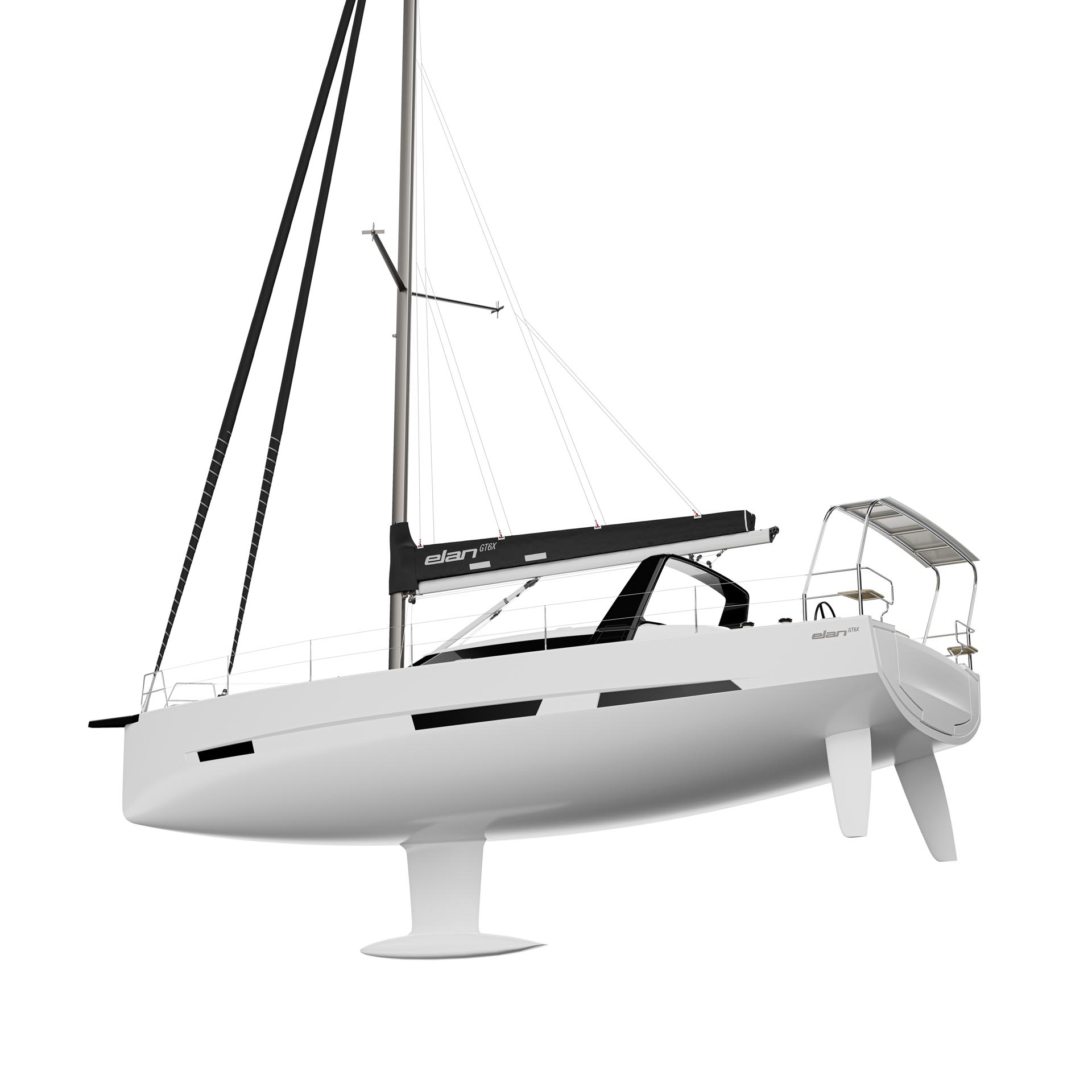

  • TWIN RUDDERS

    Schematic icon showing twin rudders for elan yachts

    Twin rudders provide exceptional control and reduce the tendency to broach. The yacht does not stall easily, as her pitching moment is reduced. The twin rudder system provides finger-tip directional control, especially when heeled.

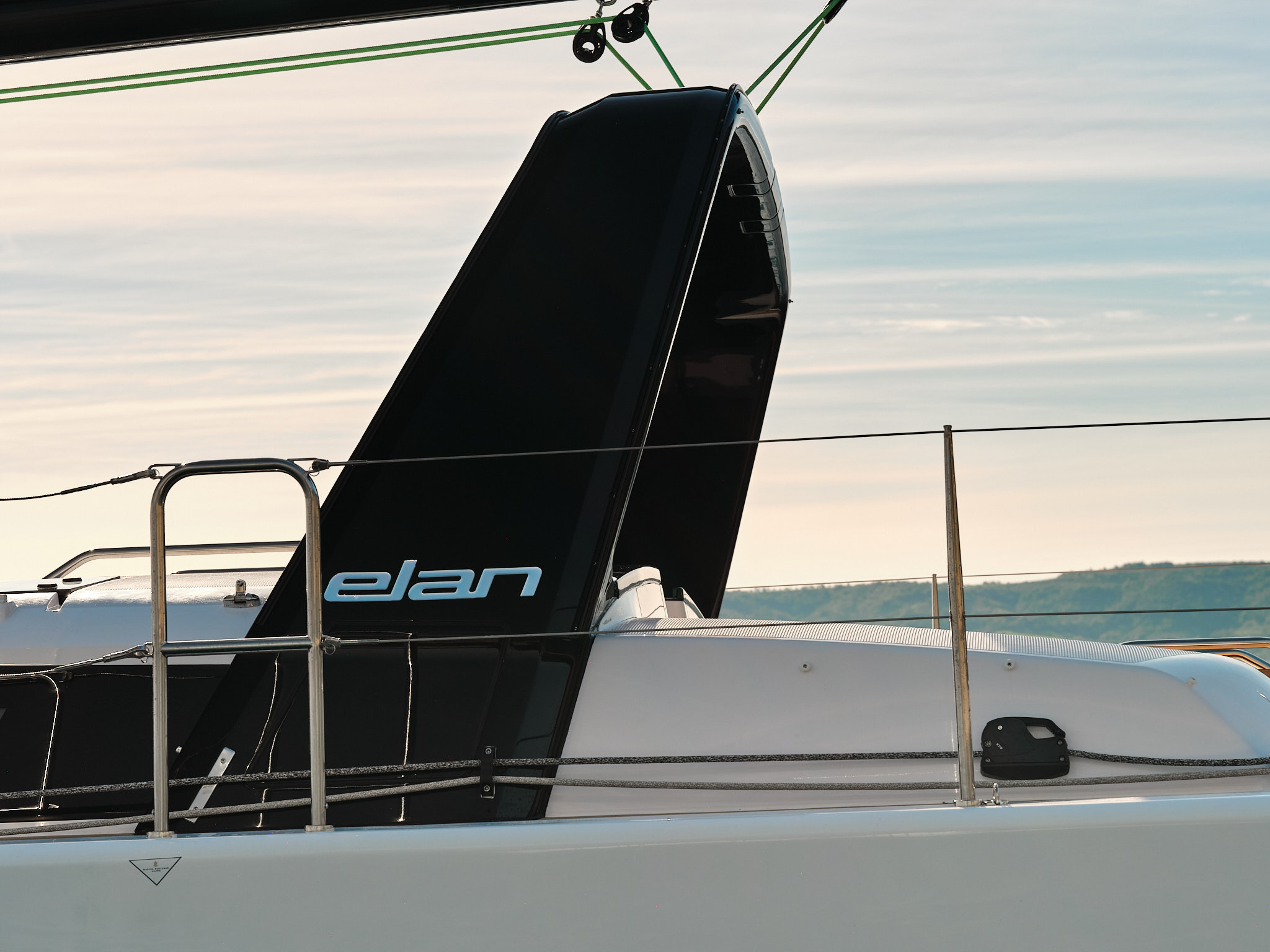

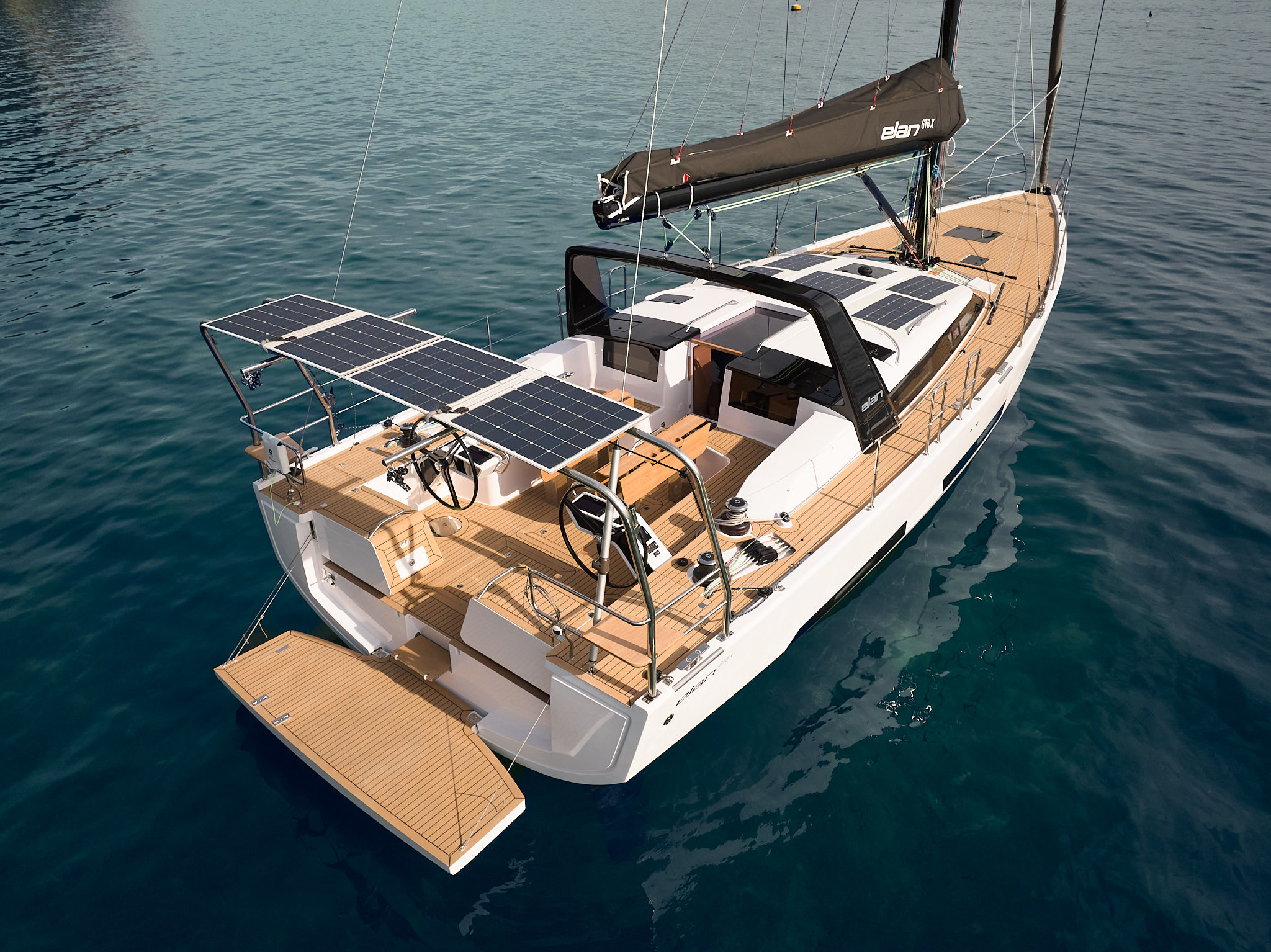

  • Dinghy Arch

    dinghy-arch

    Enhancing the multifaceted capabilities of the GT6 Explorer is the optional inclusion of a dinghy arch. With this feature, sailors have the freedom to easily stow a serviceable tender. This addition opens up a world of possibilities: from accessing secluded coves and uncharted territories to effortless supply runs or swiftly disembarking for a shoreside dining experience.

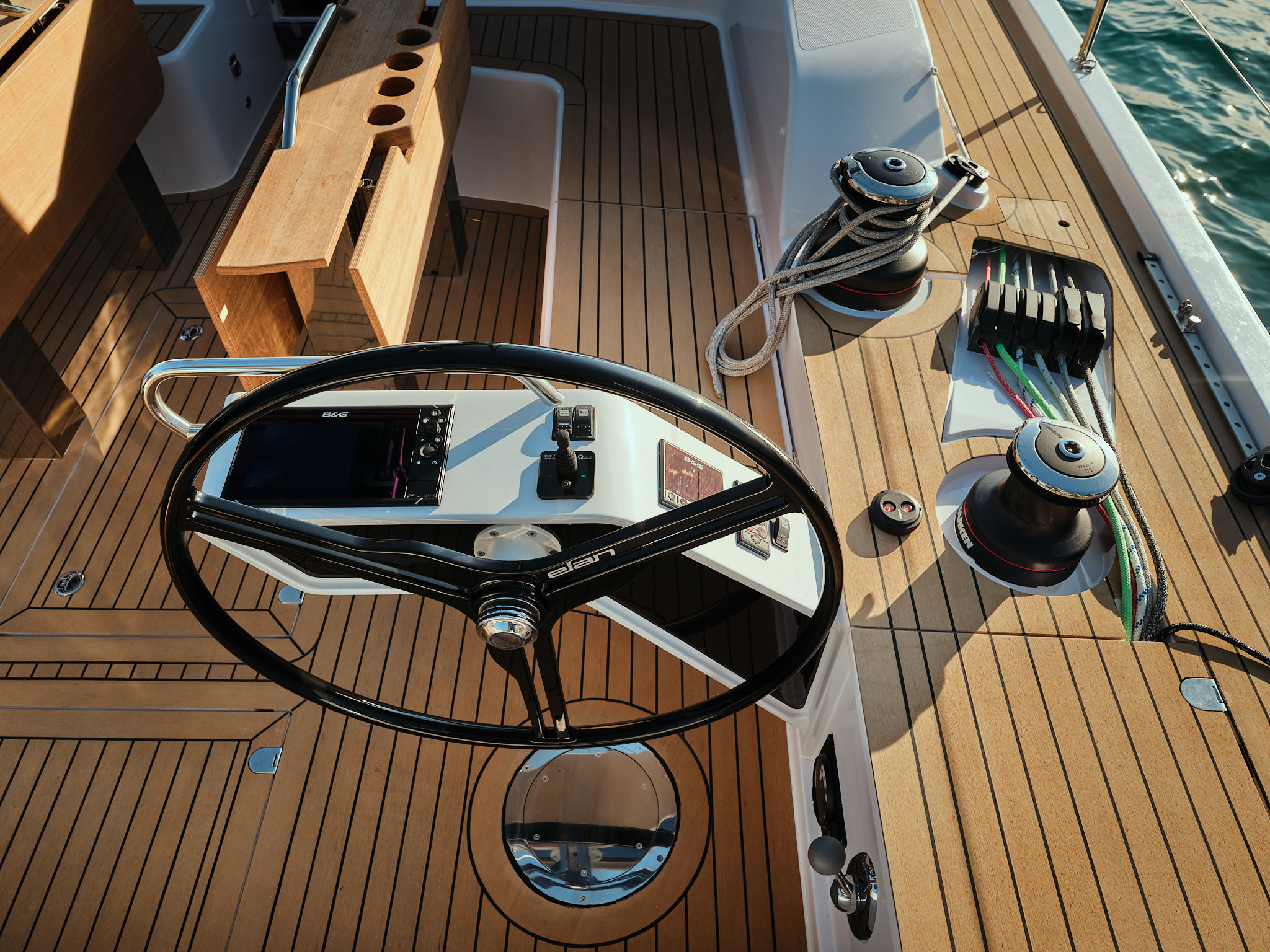

  • TWIN HELM

    Schematic view of twin helms Elan Yachts have

    Elan yachts were among the first production yachts to incorporate a twin-helm system, borrowing the concept from the offshore racing world. Now a staple in yacht design, the Jefa twin-wheel steering enables easy manoeuvring from both sides of the yacht while not impeding movement in the cockpit. Twin helms also introduce a new level of redundancy on your bluewater cruises, especially when paired with twin rudders.

  • COMPOSITE BULKHEADS

    Composite Bulkheads

    The composite version ensures an unbroken surface along the bulkhead and an equal distribution of mechanical loads through the cross-section. The vacuum-cured resin-impregnated biaxial fabric takes the stiffness and durability to the next level and ensures the most compact structure.

  • QUALITY

    elan-yachts-qality

    Created by a team of world-class GRP technicians, craftsmen and engineers, Elan Yachts are a level above the quality of other production yachts. Hop aboard and see the difference – unparalleled design, a solid wood finish, and attention to detail in every aspect. Durable and reliable – the true benefits of a more than 70-year-old tradition in yacht-making.

  • EASY TO SAIL

    icon showing ease of sail and shorthanded with elan yachts

    This yacht is easily handled by a shorthanded or even single-handed crew, due to the winch placement and furling sails. Paired with a more conservative sail plan, this ensures an easily managed rig.

  • COMFORT

    elan yachts are great for cruising

    This Elan yacht has been designed with every comfort in mind. Leisure when cruising is guaranteed. Relaxation and enjoyment are a priority – everything from the large volume, sunbathing areas in the cockpit, an outdoor grill and fridge, to microwave and coffee machine options.

  • DECK SALOON

    elan yachts deck saloon icon

    The raised coachroof forms a deck-saloon yacht which offers a far brighter and more spacious interior than an ordinary yacht, thus creating a true home away from home while on board.

  • SAFETY

    A conservative sail plan and a hull shape that does not punish casual sailors in extreme weather. A low centre of gravity and great stability due to CFD modelling by Humphreys Yacht Design. Option of a closed and covered cockpit that protects the crew from the elements. An easy and convenient emergency ladder trigger mechanism. A stiff hull that saves lives.

3D VAIL

In essence, 3D VAIL technology integrates the inner yacht structure, stringers and stringer supports into the hull itself using vacuum-assisted infusion. When fully applied, this complicated and expensive process creates a one-piece laminated structure out of all the load-bearing elements of the yacht, increasing the stiffness and lightness and ensuring the best mechanical properties.

Elan Yachts 3D VAIL Technology

VAIL HULL

As the only sure way to prevent osmosis, and to ensure uniform stiffness, lightness and safety, Elan was one of the first serial yacht manufacturers to adopt the Vacuum-Assisted Infusion Lamination back in 2003. VAIL enables the complete saturation of resin and removes human error from the process.

Vacuum Assisted Infusion Lamination icon for Elan Yacht HULLS

TWIN RUDDERS

Twin rudders provide exceptional control and reduce the tendency to broach. The yacht does not stall easily, as her pitching moment is reduced. The twin rudder system provides finger-tip directional control, especially when heeled.

Schematic icon showing twin rudders for elan yachts

Dinghy Arch

Enhancing the multifaceted capabilities of the GT6 Explorer is the optional inclusion of a dinghy arch. With this feature, sailors have the freedom to easily stow a serviceable tender. This addition opens up a world of possibilities: from accessing secluded coves and uncharted territories to effortless supply runs or swiftly disembarking for a shoreside dining experience.

dinghy-arch

TWIN HELM

Elan yachts were among the first production yachts to incorporate a twin-helm system, borrowing the concept from the offshore racing world. Now a staple in yacht design, the Jefa twin-wheel steering enables easy manoeuvring from both sides of the yacht while not impeding movement in the cockpit. Twin helms also introduce a new level of redundancy on your bluewater cruises, especially when paired with twin rudders.

Schematic view of twin helms Elan Yachts have

COMPOSITE BULKHEADS

The composite version ensures an unbroken surface along the bulkhead and an equal distribution of mechanical loads through the cross-section. The vacuum-cured resin-impregnated biaxial fabric takes the stiffness and durability to the next level and ensures the most compact structure.

Composite Bulkheads

QUALITY

Created by a team of world-class GRP technicians, craftsmen and engineers, Elan Yachts are a level above the quality of other production yachts. Hop aboard and see the difference – unparalleled design, a solid wood finish, and attention to detail in every aspect. Durable and reliable – the true benefits of a more than 70-year-old tradition in yacht-making.

elan-yachts-qality

EASY TO SAIL

This yacht is easily handled by a shorthanded or even single-handed crew, due to the winch placement and furling sails. Paired with a more conservative sail plan, this ensures an easily managed rig.

icon showing ease of sail and shorthanded with elan yachts

COMFORT

This Elan yacht has been designed with every comfort in mind. Leisure when cruising is guaranteed. Relaxation and enjoyment are a priority – everything from the large volume, sunbathing areas in the cockpit, an outdoor grill and fridge, to microwave and coffee machine options.

elan yachts are great for cruising

DECK SALOON

The raised coachroof forms a deck-saloon yacht which offers a far brighter and more spacious interior than an ordinary yacht, thus creating a true home away from home while on board.

elan yachts deck saloon icon

SAFETY

A conservative sail plan and a hull shape that does not punish casual sailors in extreme weather. A low centre of gravity and great stability due to CFD modelling by Humphreys Yacht Design. Option of a closed and covered cockpit that protects the crew from the elements. An easy and convenient emergency ladder trigger mechanism. A stiff hull that saves lives.

GET IN TOUCH

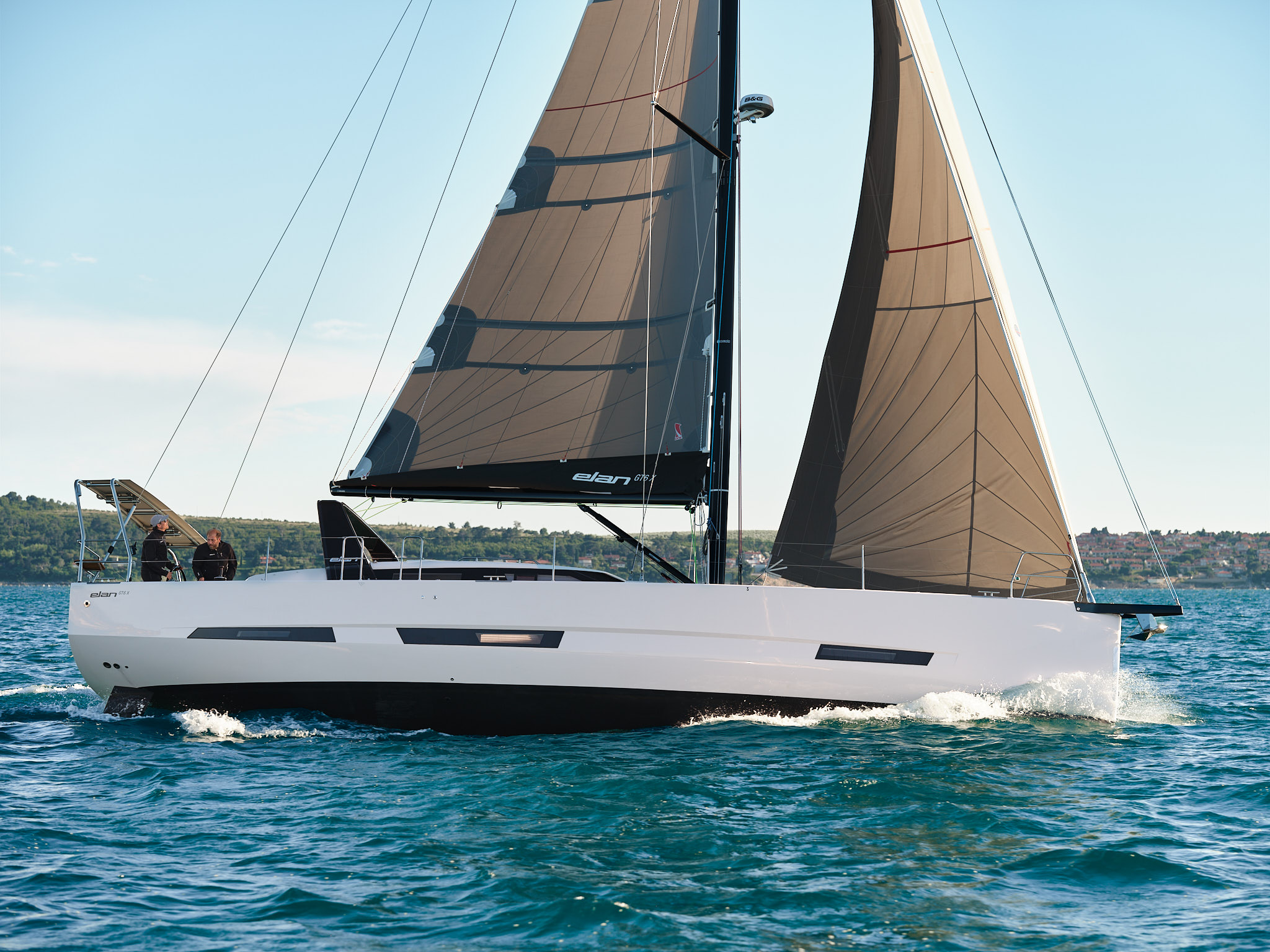

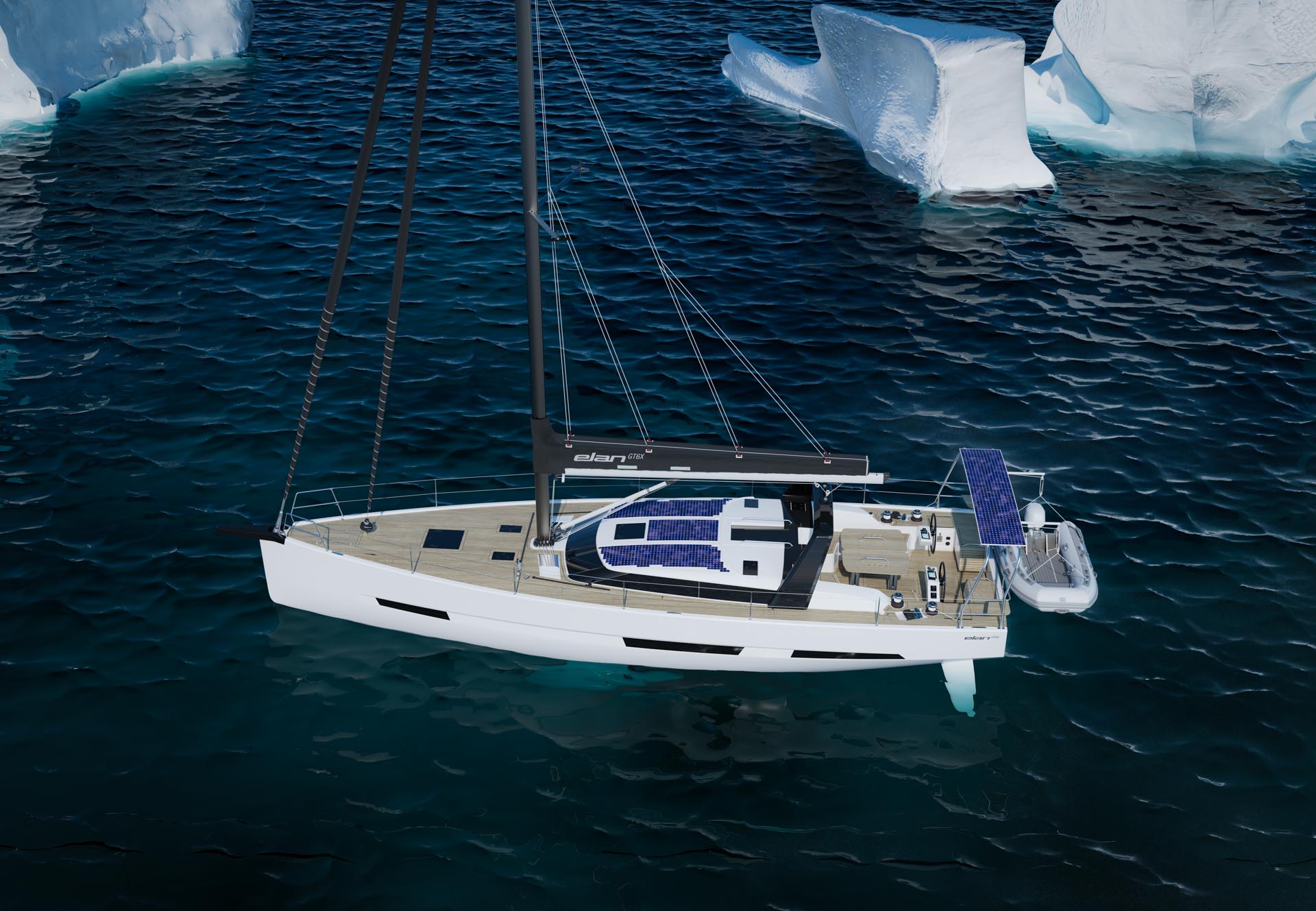

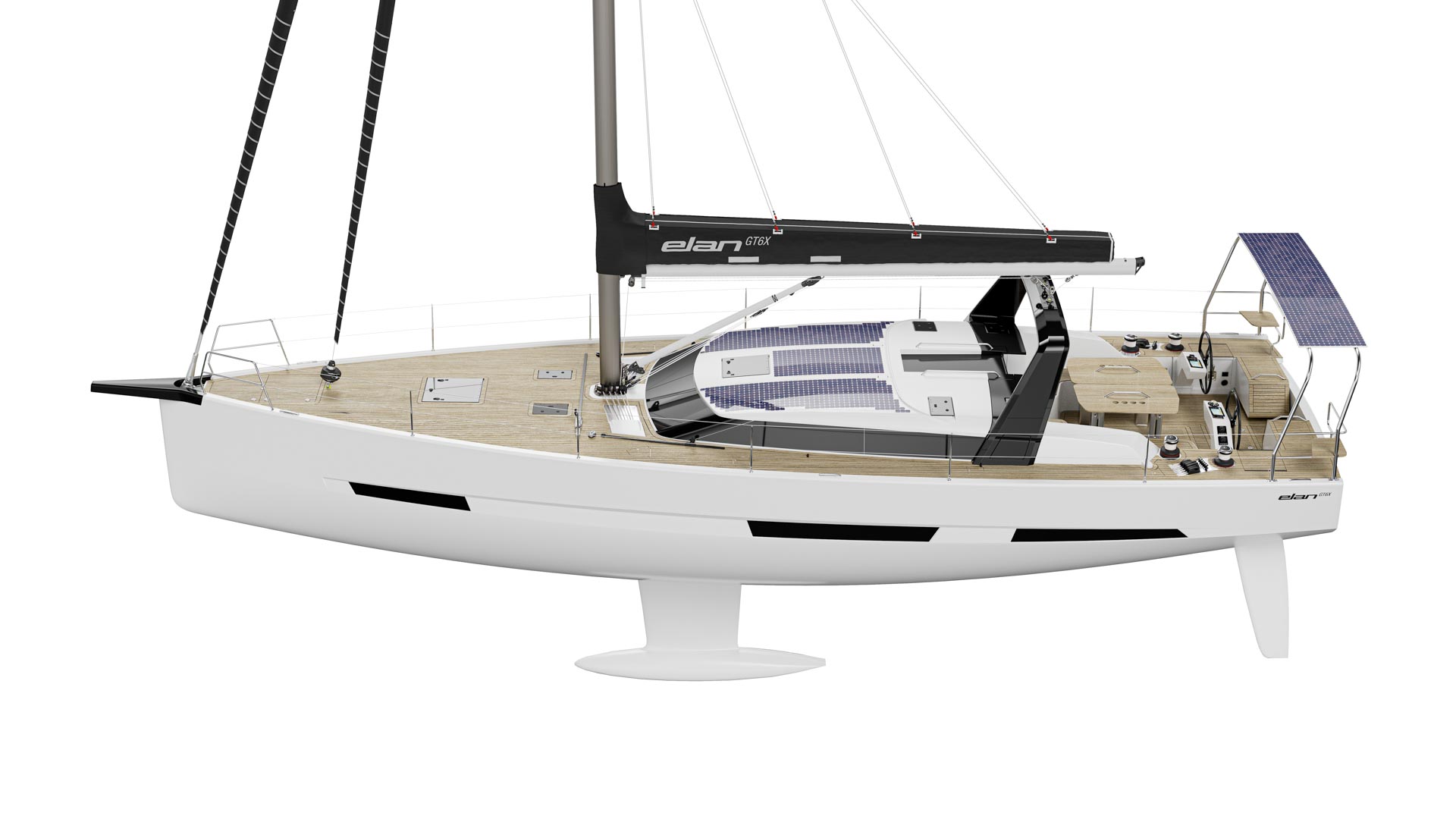

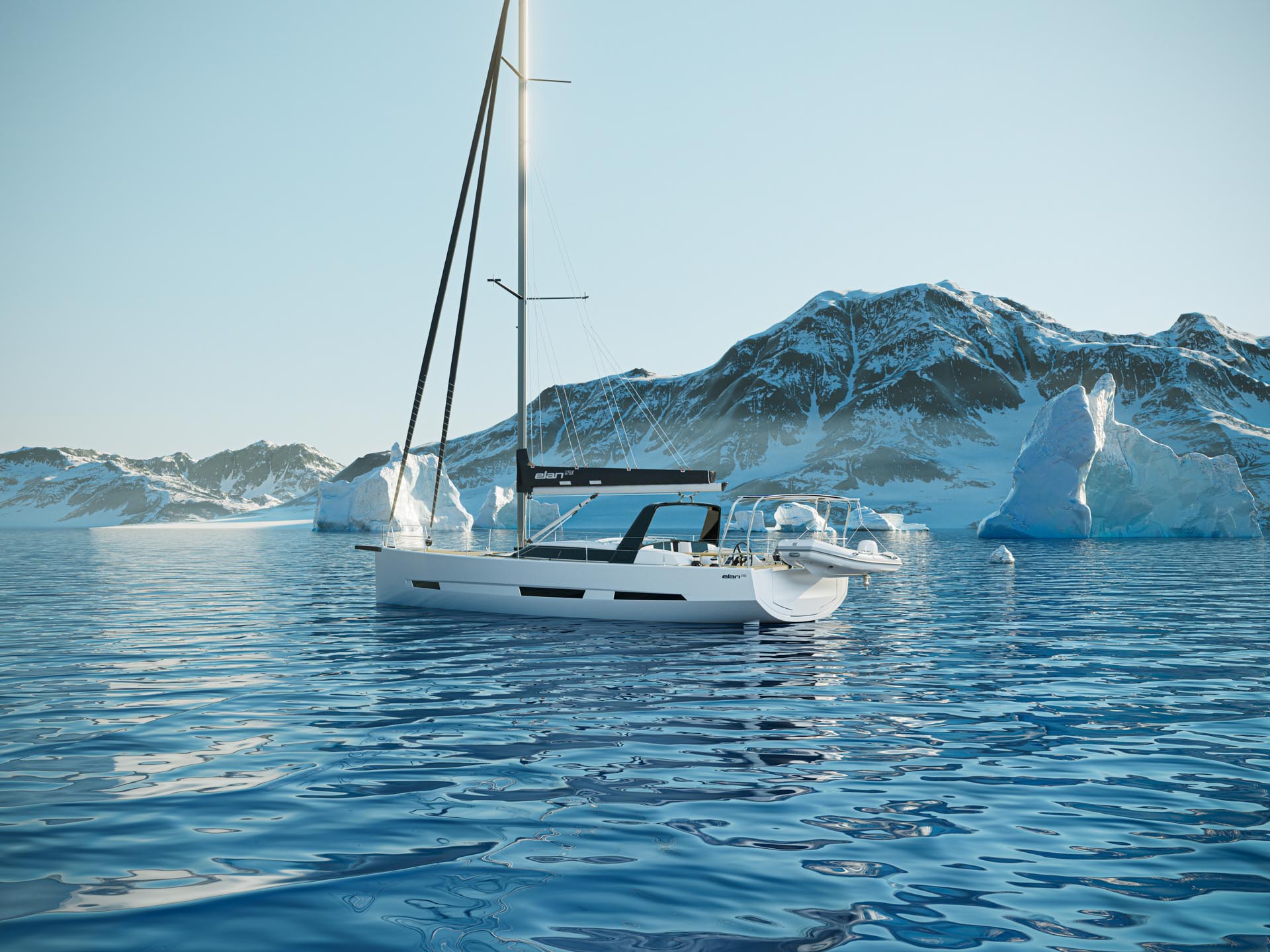

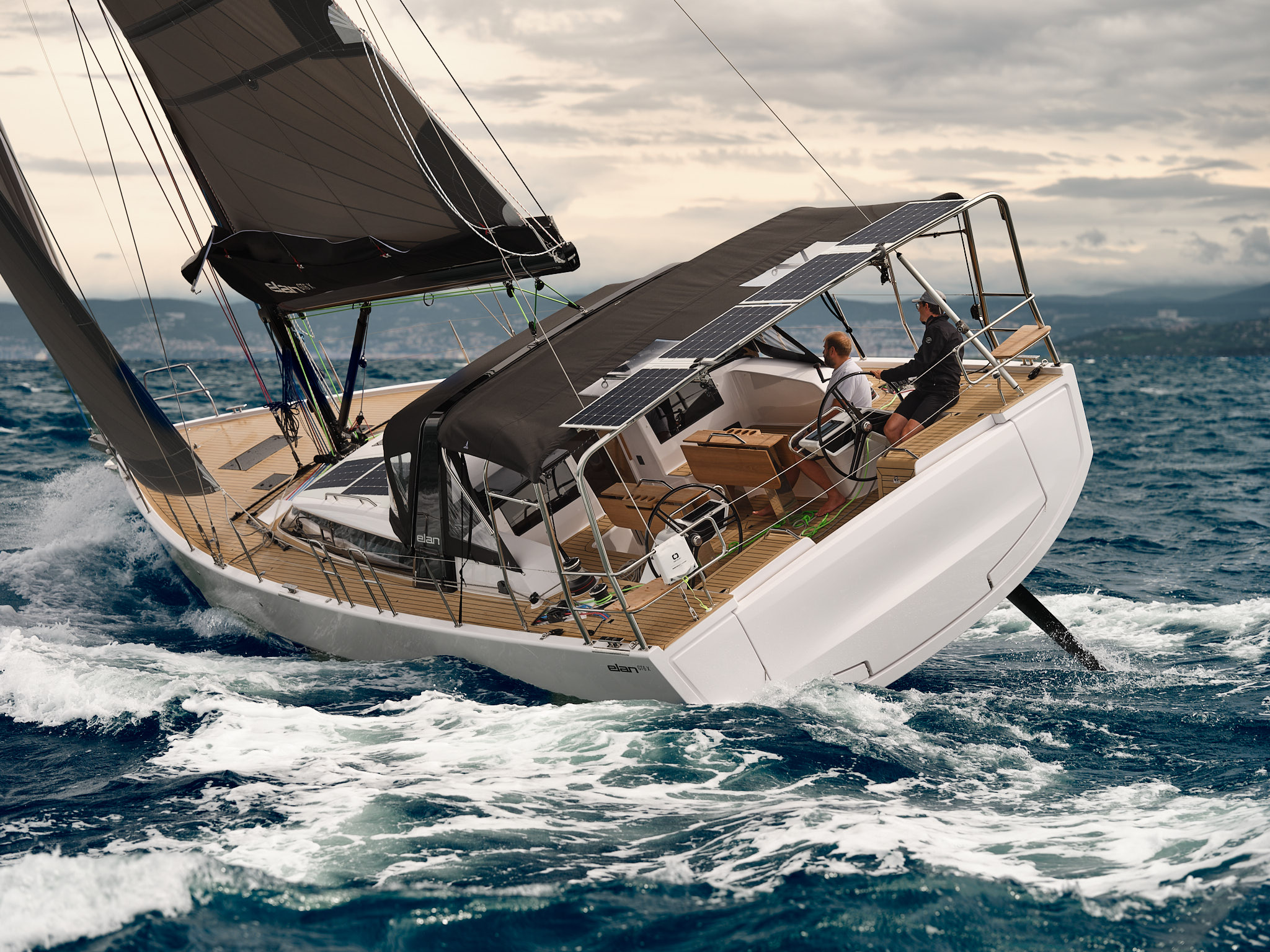

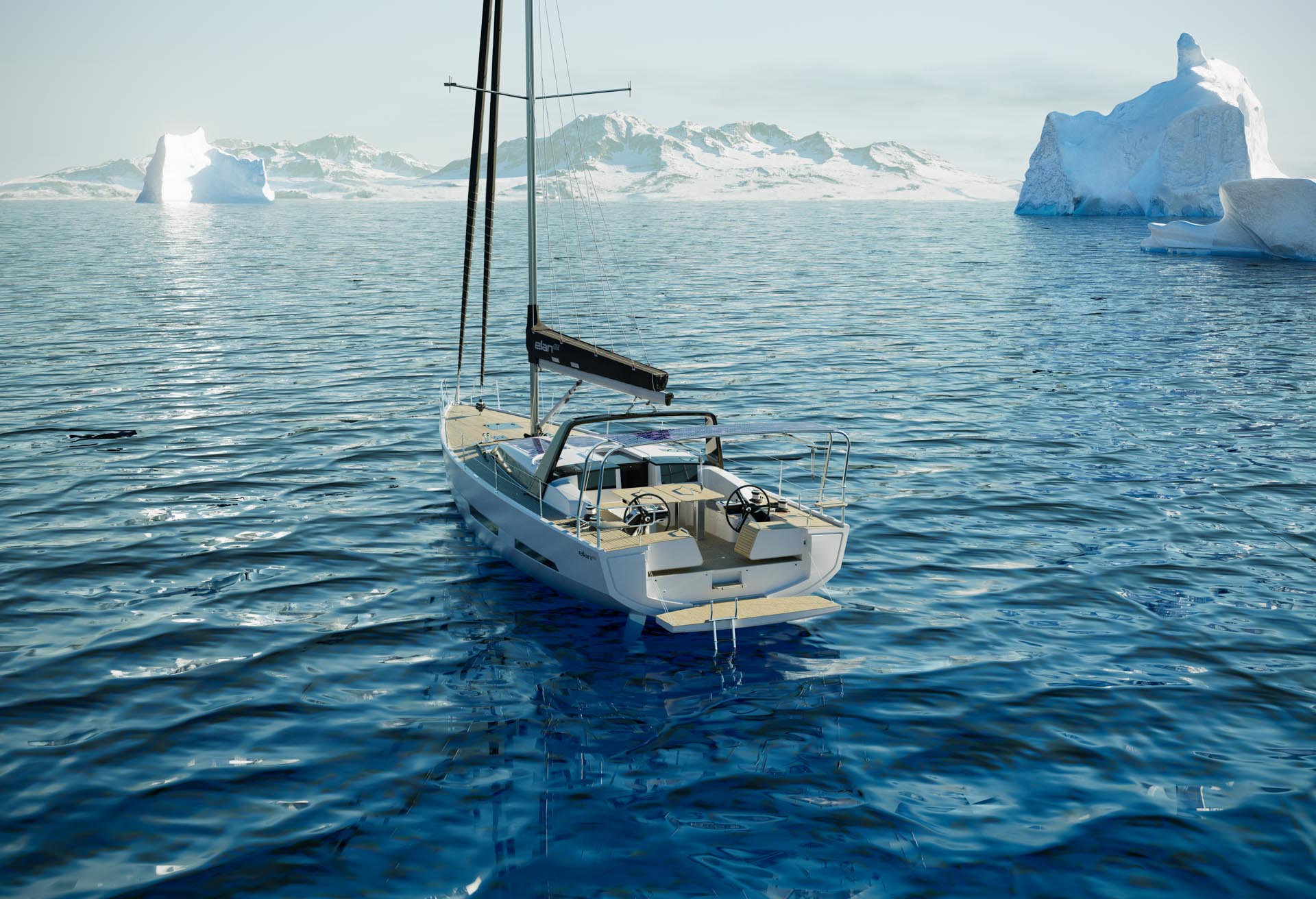

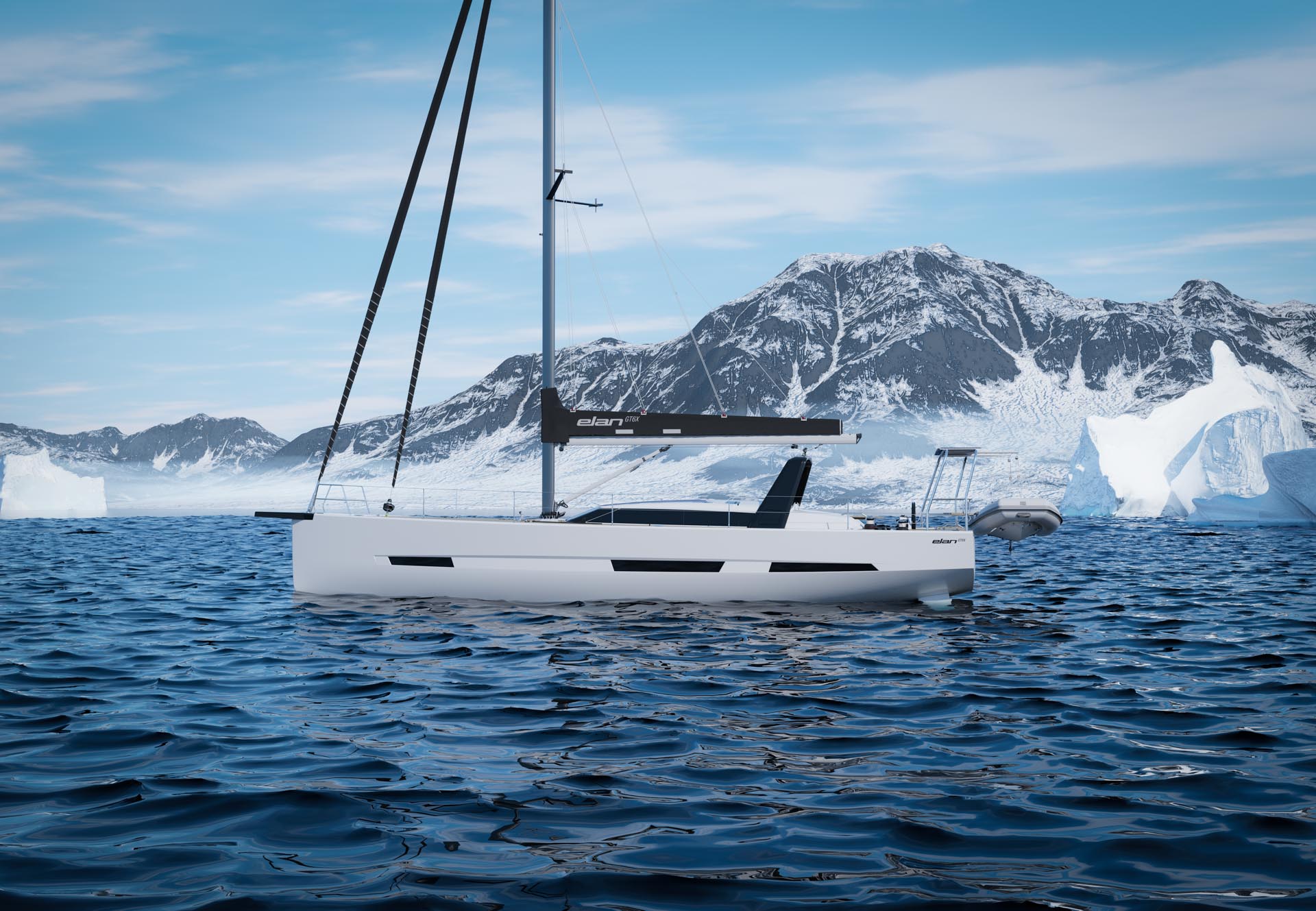

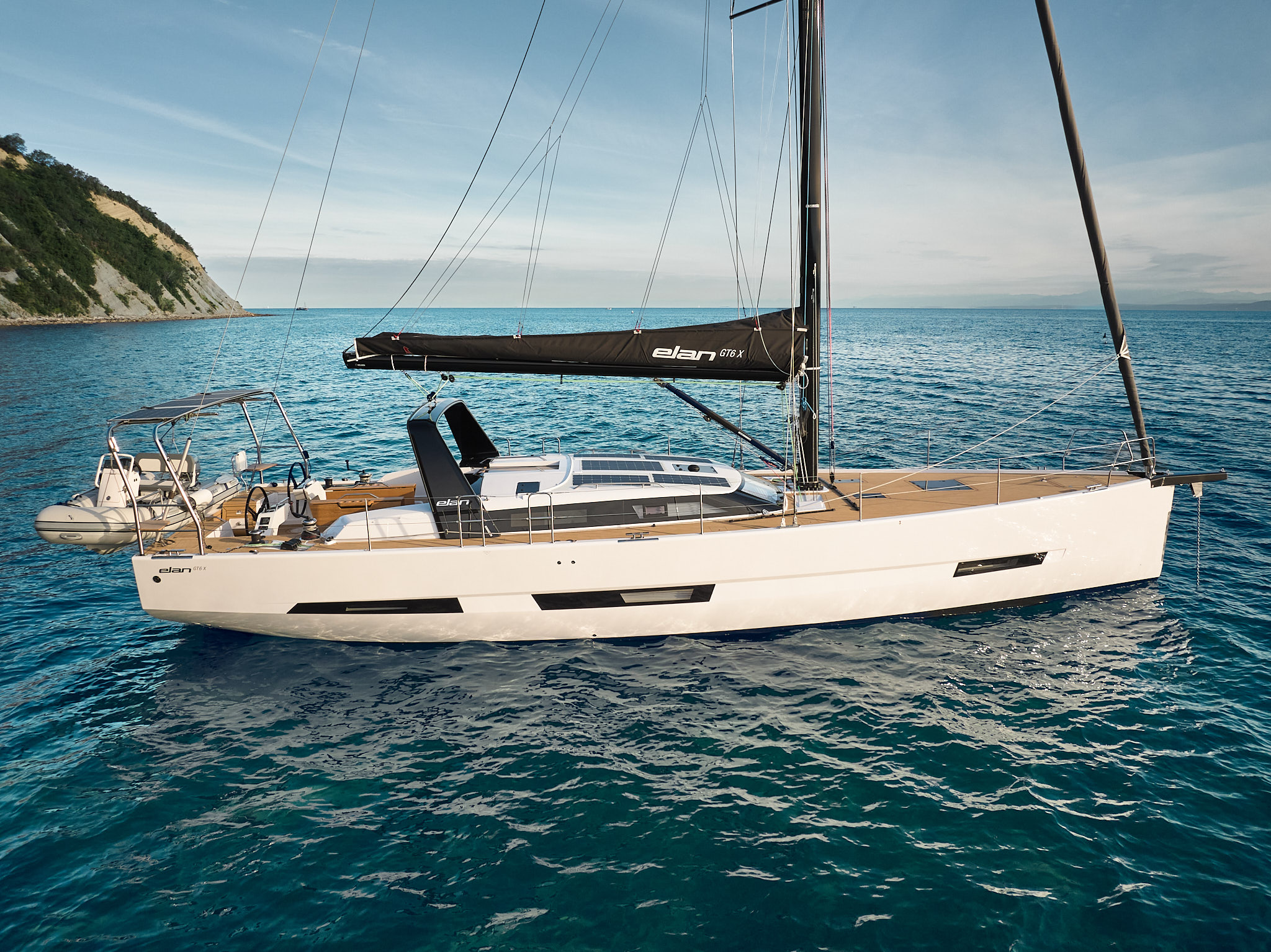

Elan GT6 X

Explore the World in Style

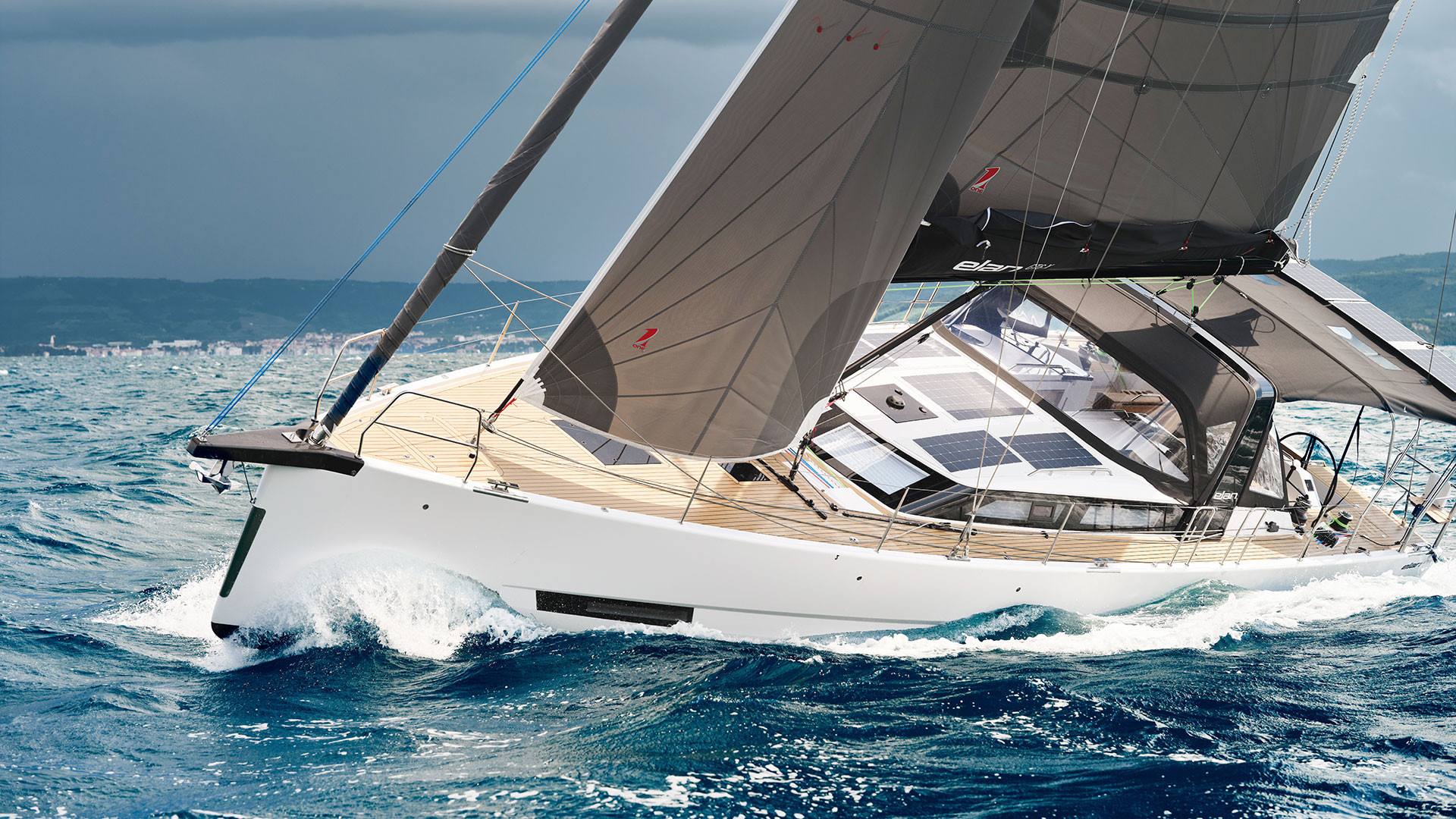

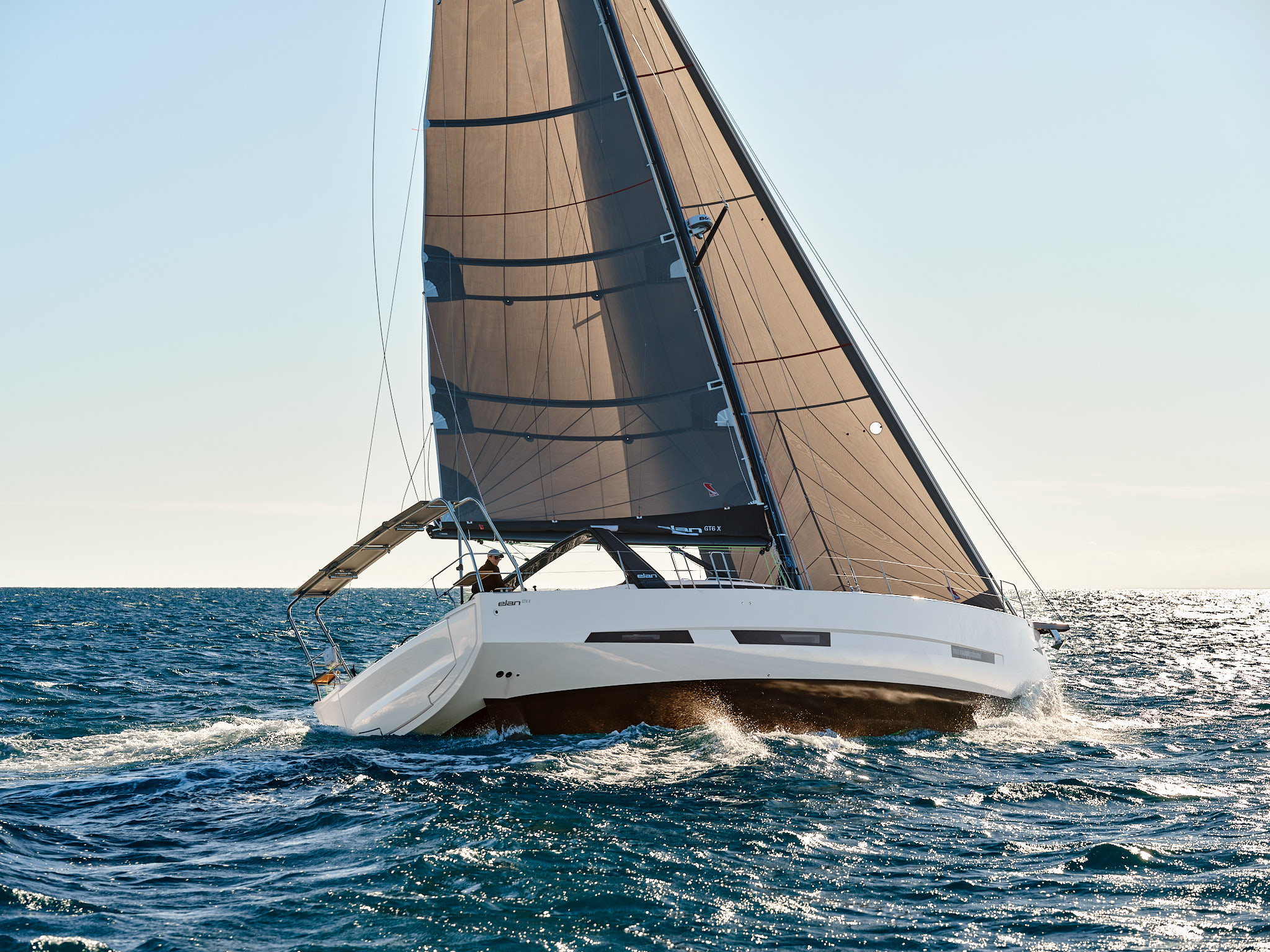

The Elan GT6 X: EXPLORER



For those with an untamed heart and a soul that yearns for the vast, endless expanse of the open sea, the Elan GT6 X, aptly named the Explorer, isn’t just another yacht. It’s the embodiment of two worlds: the wild beauty of nature and the opulent luxury of man’s finest creation. The Explorer offers long journeys across waters, along with a voyage through life's myriad of emotions and experiences. It represents a journey where every sunrise is a promise and every sunset, a collection of unforgettable memories.

Embarking on adventures with the Explorer bestows a sense of achievement that few other experiences can match, offering a purpose and infusing every moment with profound meaning.



Mediterranean Approach to Blue-Water Cruising

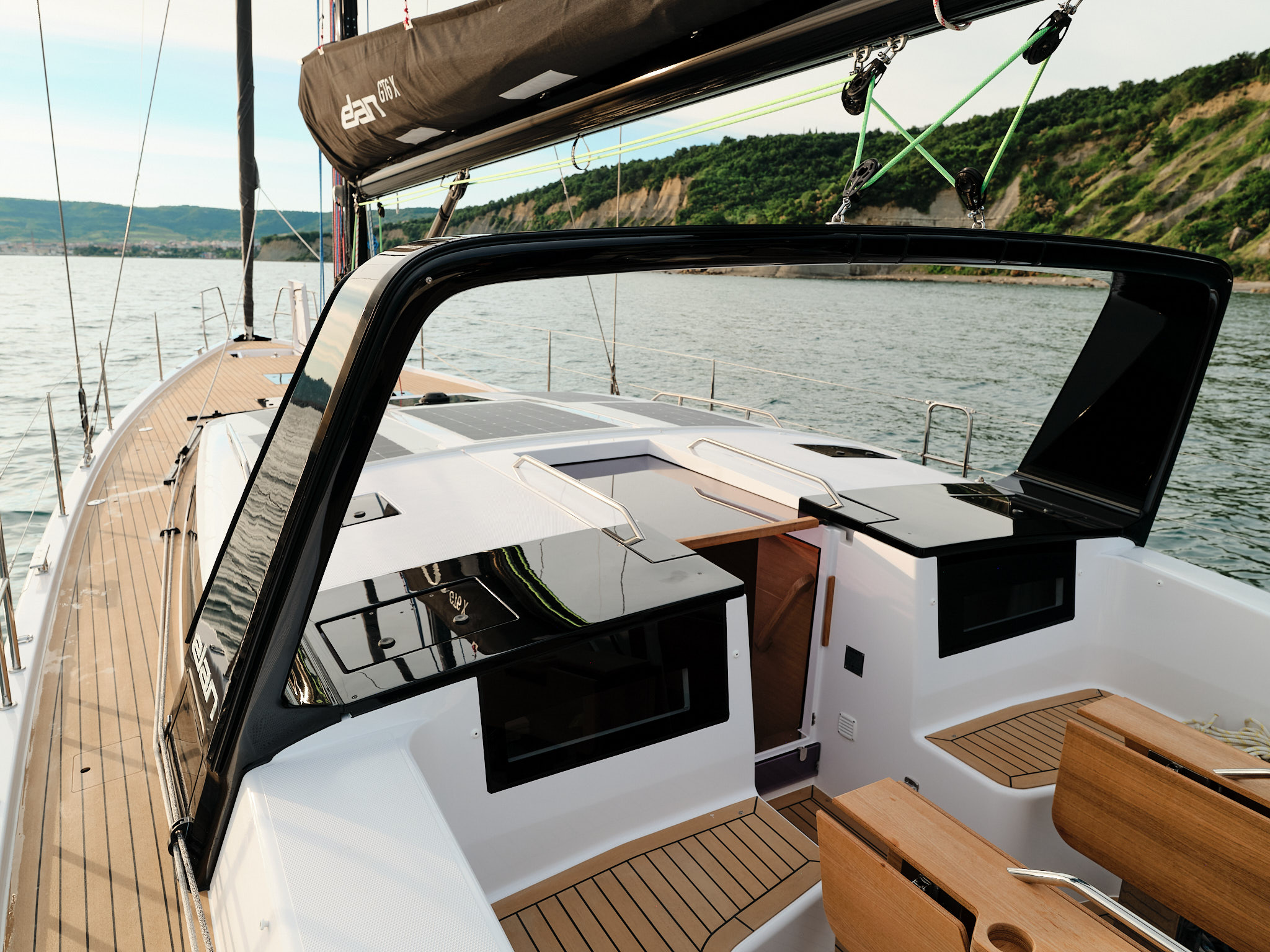

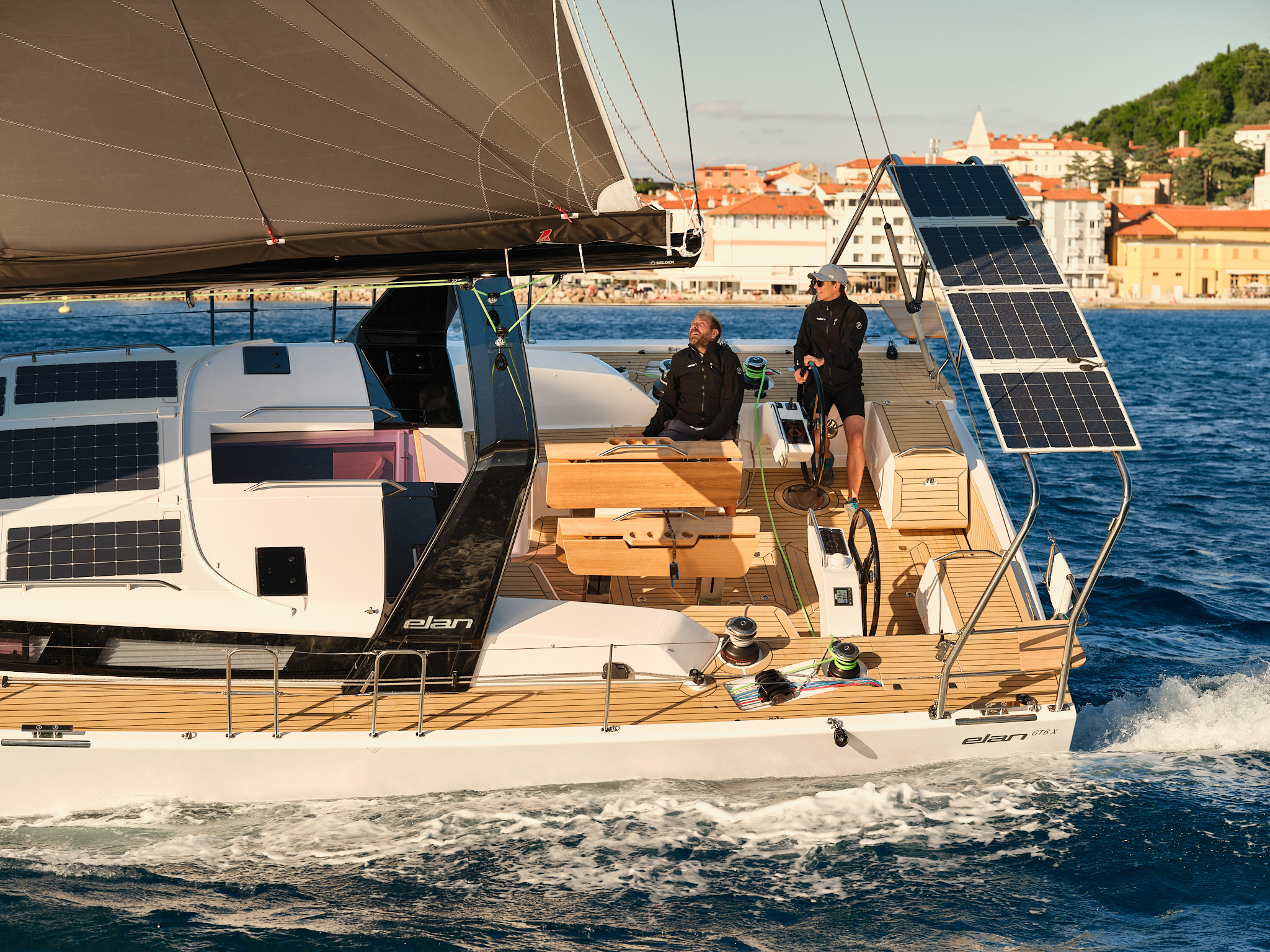

Further enriching its legacy, the Elan GT6’s Mediterranean roots shine through in the Explorer's cockpit layout. This design places sailors closer to the water and when the weather permits, strenghtens their connection with the environment. This offers a more involved experience in contrast to the elevated vantage of centre cockpit yachts of traditional bluewater cruisers, while still offering safe and covered areas with high coamings, integrated sprayhood arch and bimini. By incorporating this Mediterranean-inspired style, the Explorer brings a touch of “joie de vivre” philosophy to waters across the globe, uniting the charm of al-fresco lifestyle with modern-day cruising luxuries.





GET IN TOUCH

Elan GT6 X

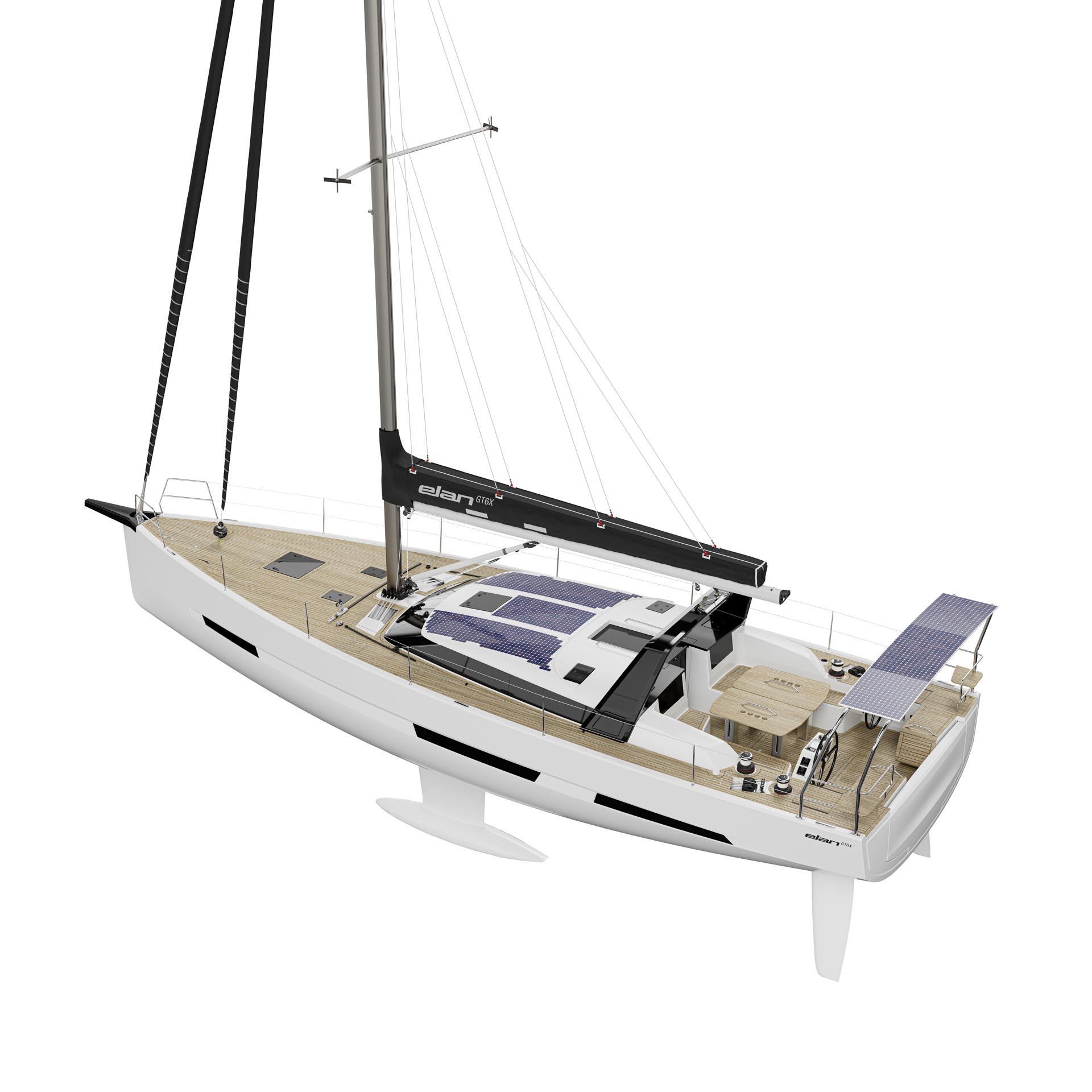

State-of-the-Art Technology and Equipment

At the heart of the GT6 X lies its design foundation: the 3D VAIL (3D Vacuum Assisted Infusion Lamination) hull technology. This amalgamation not only strengthens the entire structure but bestows upon it unparalleled rigidity. Read more about 3D VAIL

The equipment and features aboard the GT6 X are meticulously selected to ensure reliability, functionality, and ease of use. The additional forestay, coupled with reinforcements and a pad eye, empowers sailors to deploy a staysail, enhancing sailing versatility. An integrated self-tacking track provides smooth short-handed manouvers, thereby simplifying the sailing process. The laminated bulkheads, both in the bow and aft, have been fortified to be watertight, ensuring the utmost protection against water ingress.

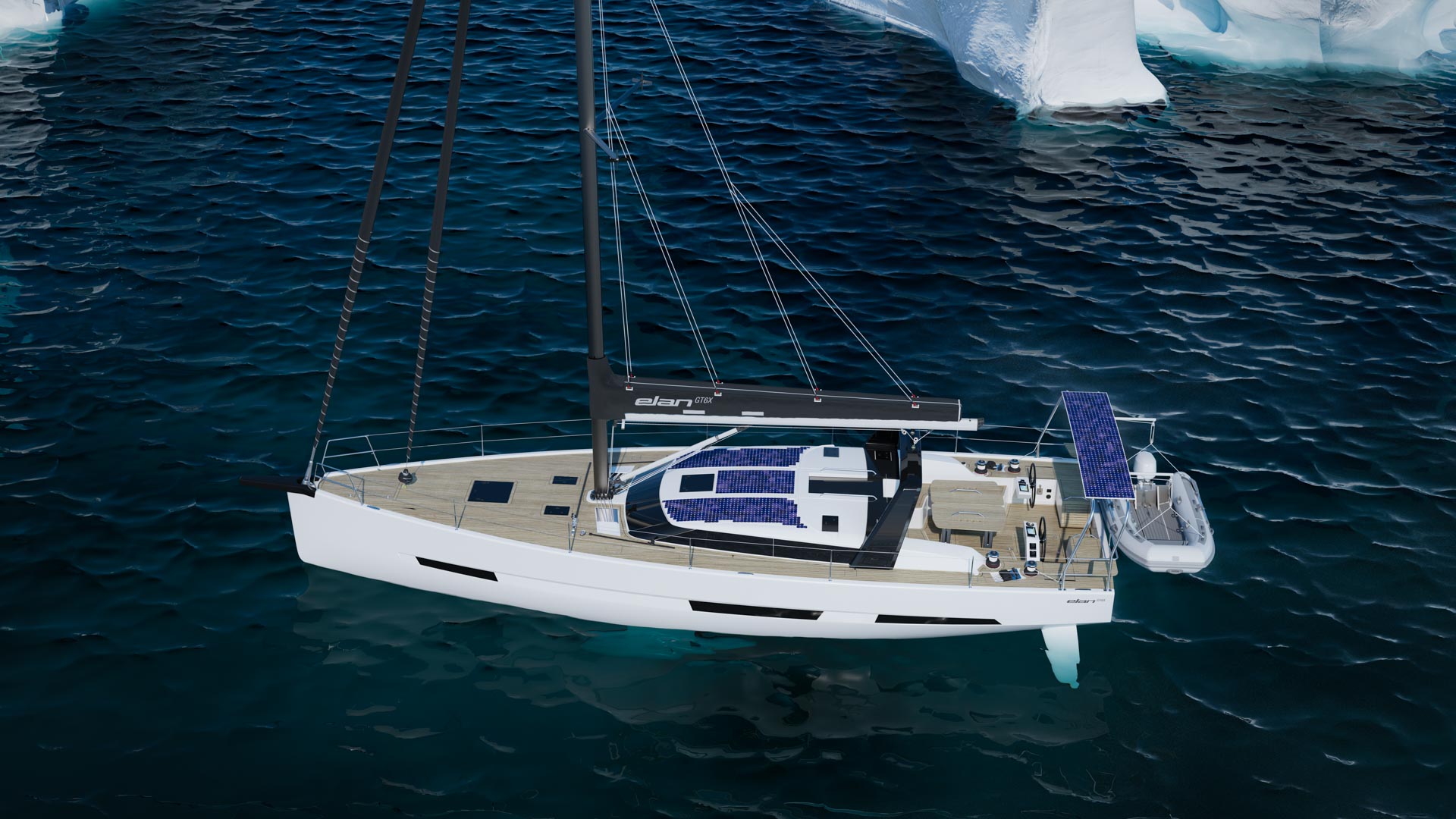

Range and Autonomy

Range and autonomy are paramount for a bluewater cruising yacht of this type. As sailors venture into the vast, open expanses of the oceans, they seek the assurance of a vessel that can sustain extended journeys.

  • 500 L fuel tank capacity

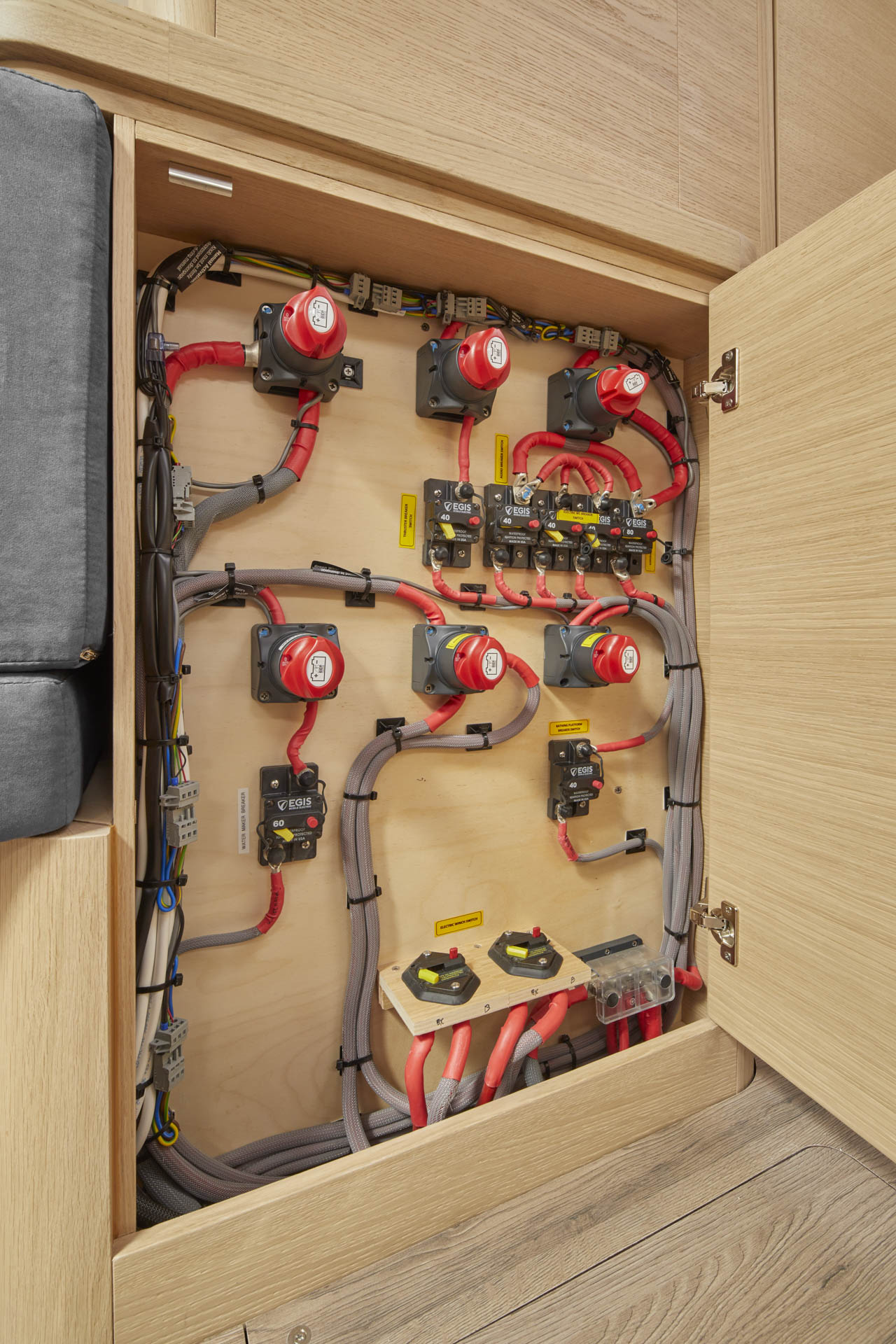

  • 6x 140 Ah service batteries, extendable to LiPo4 option

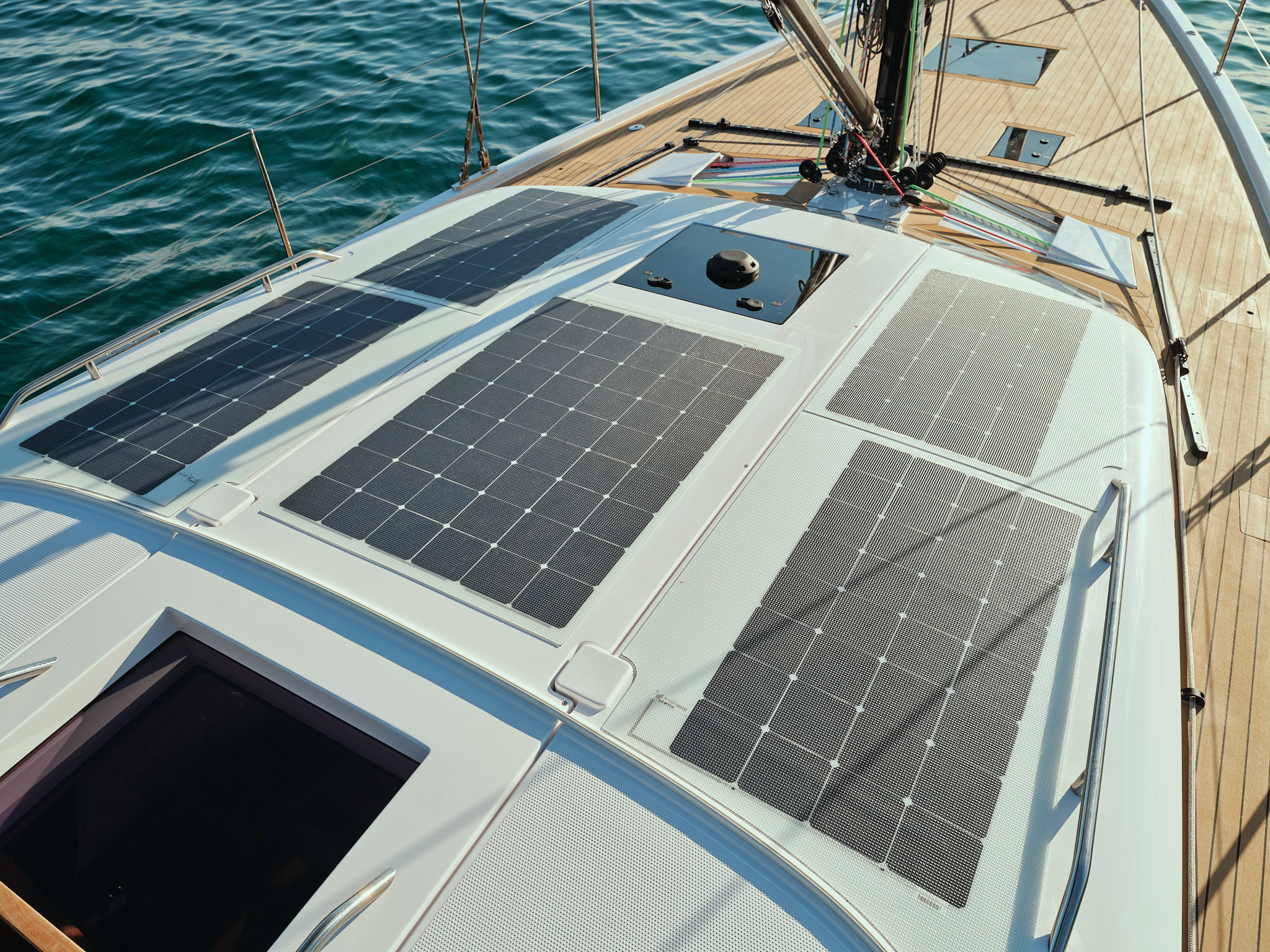

  • Solar panel array up to 1187 Wp

  • 100 L/h water maker

  • Generator up to 6400 W

GET IN TOUCH

Elan GT6 X

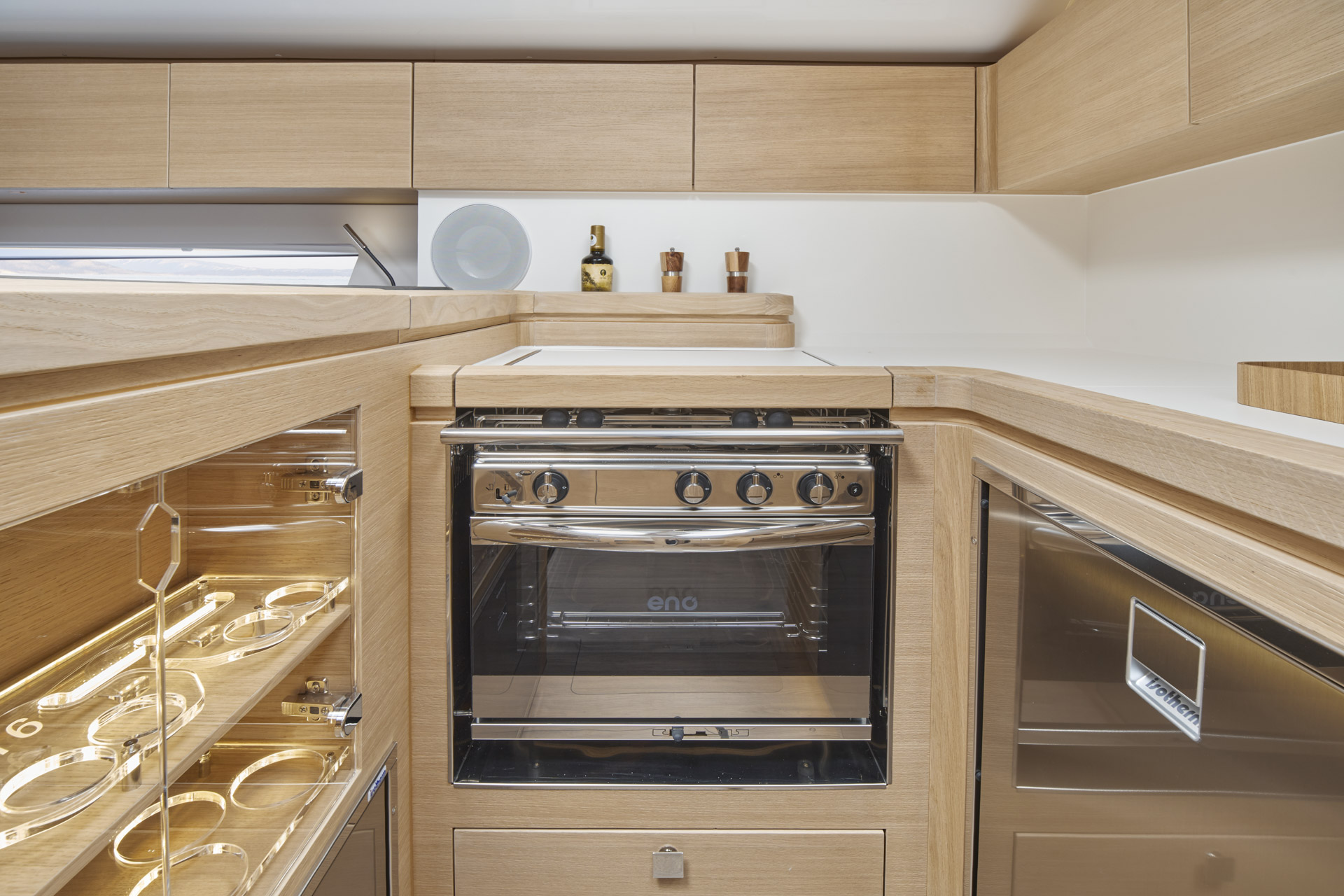

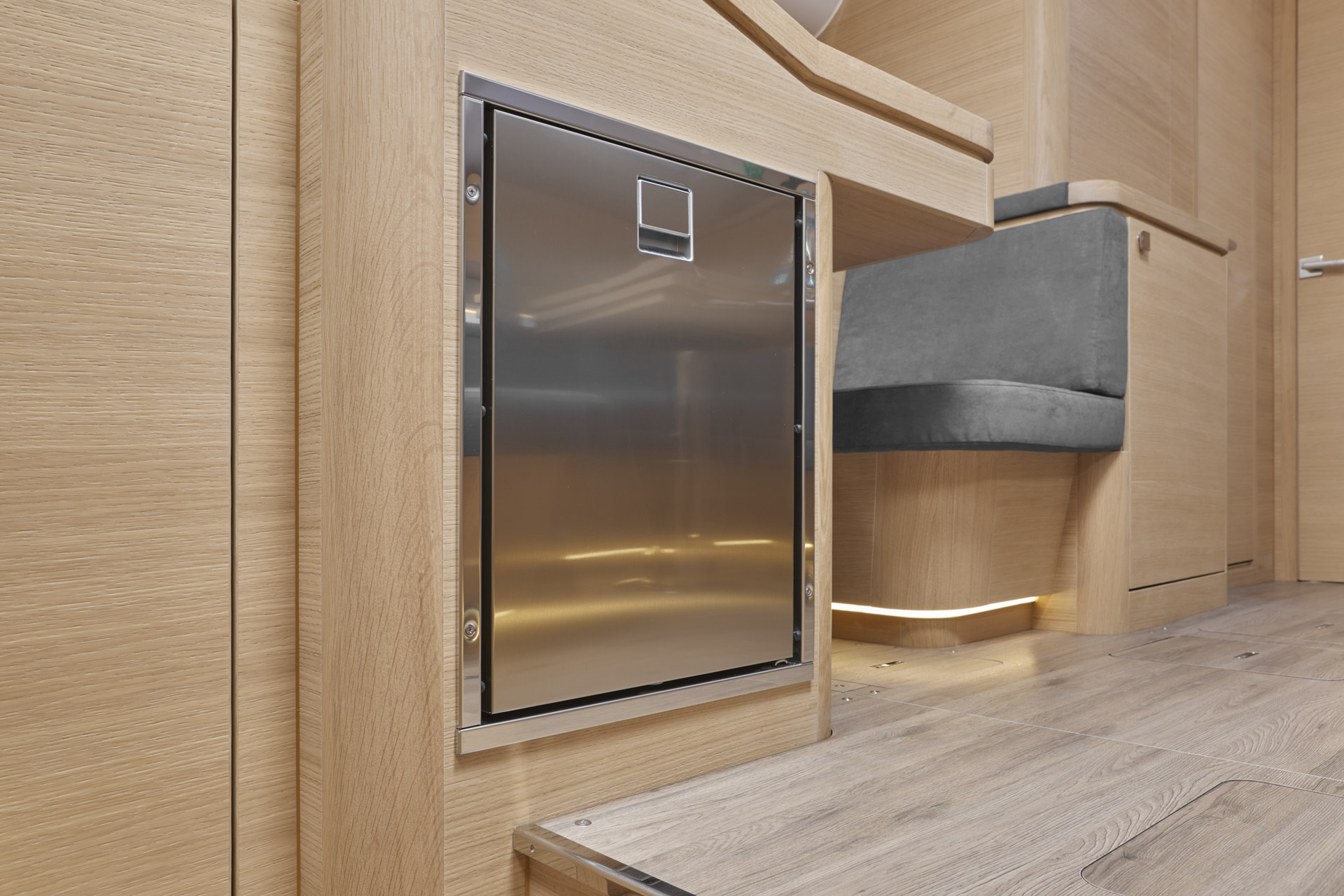

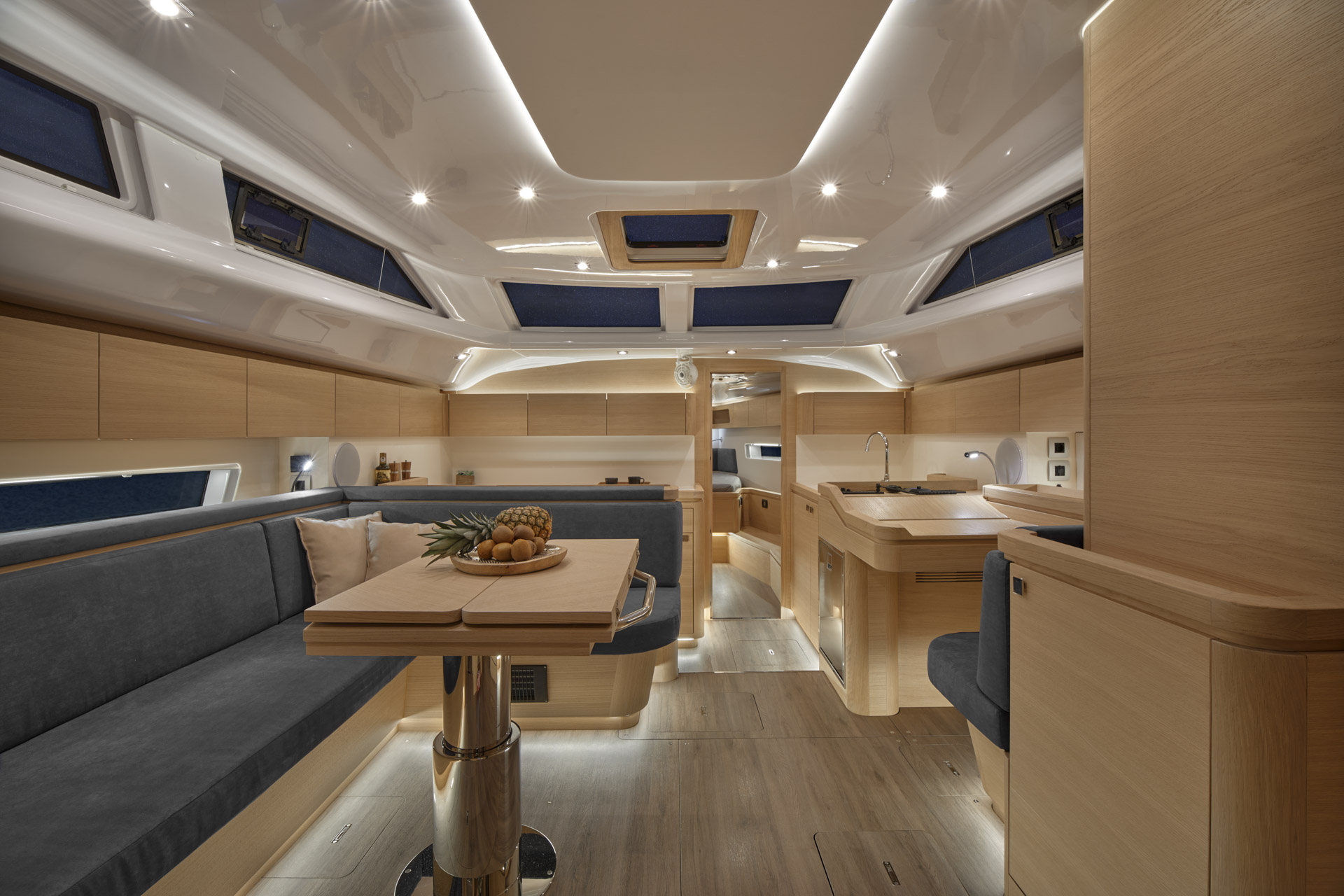

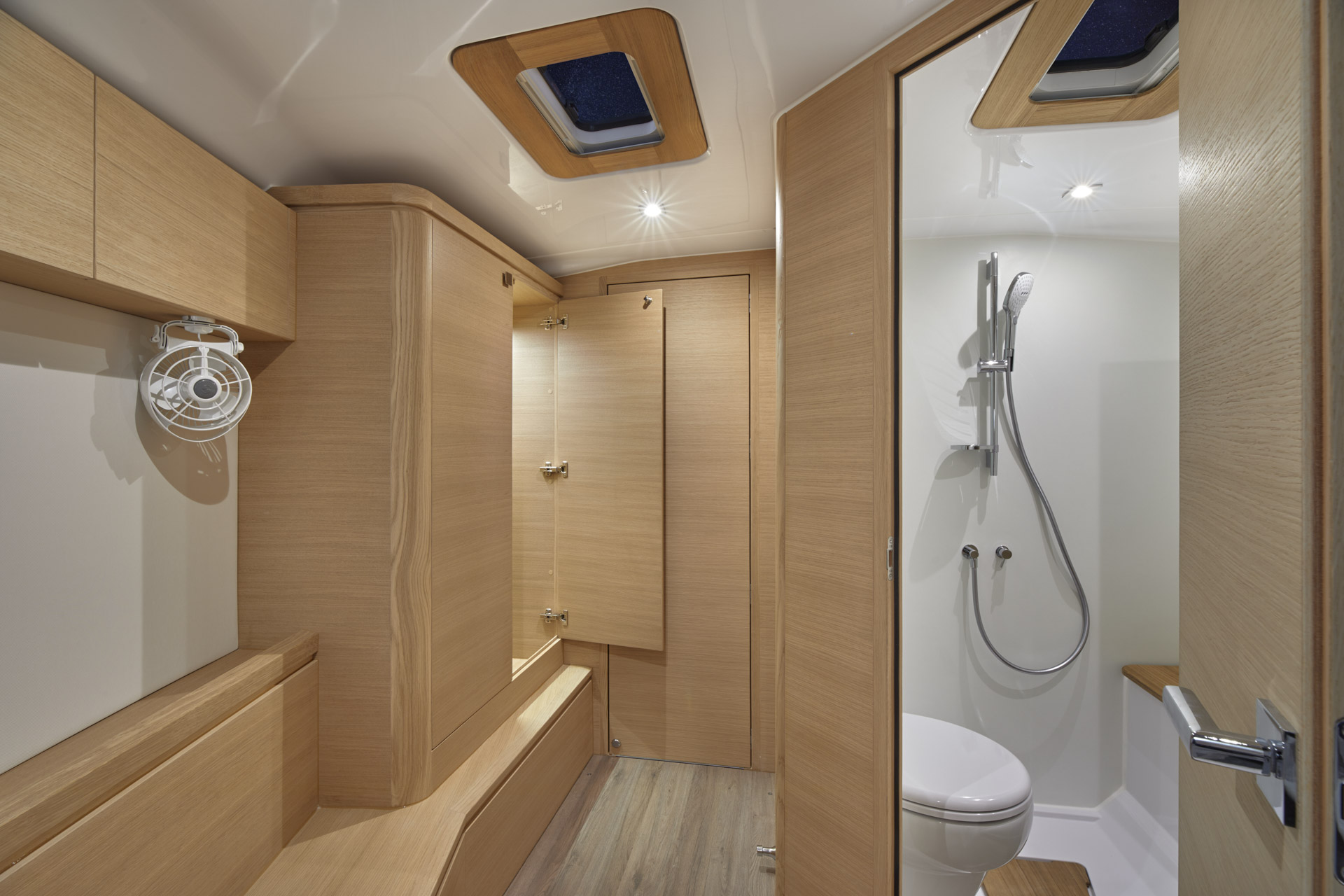

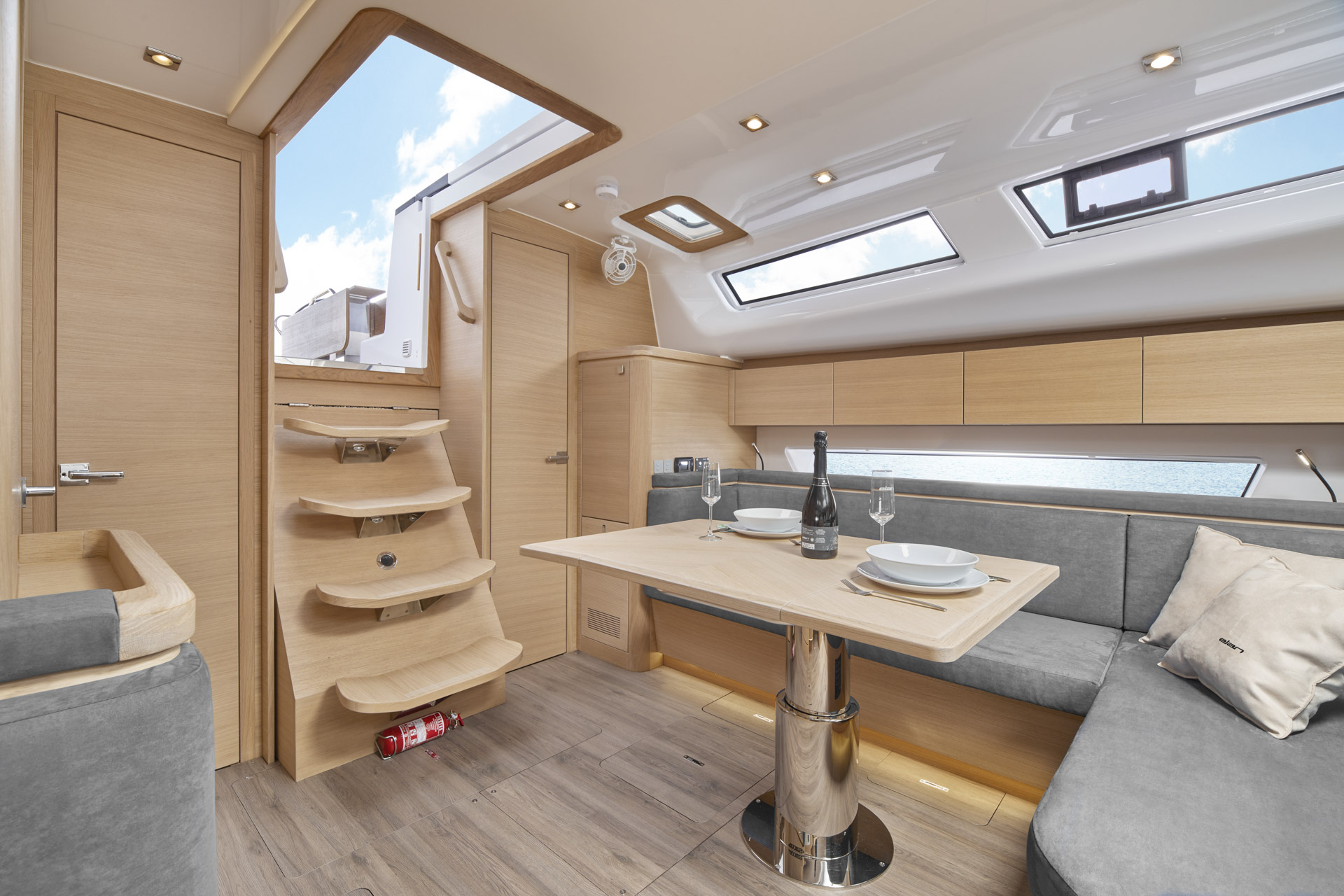

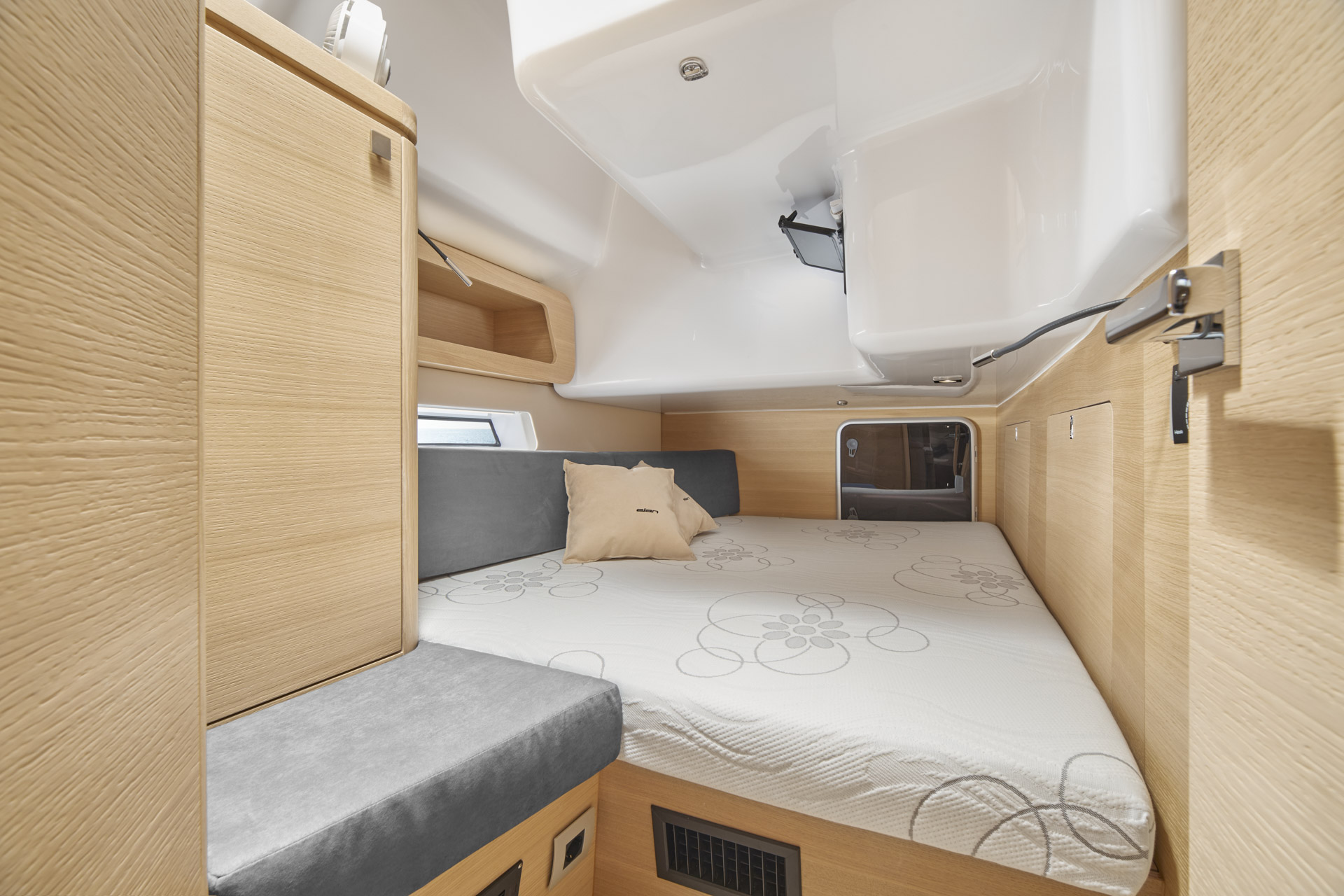

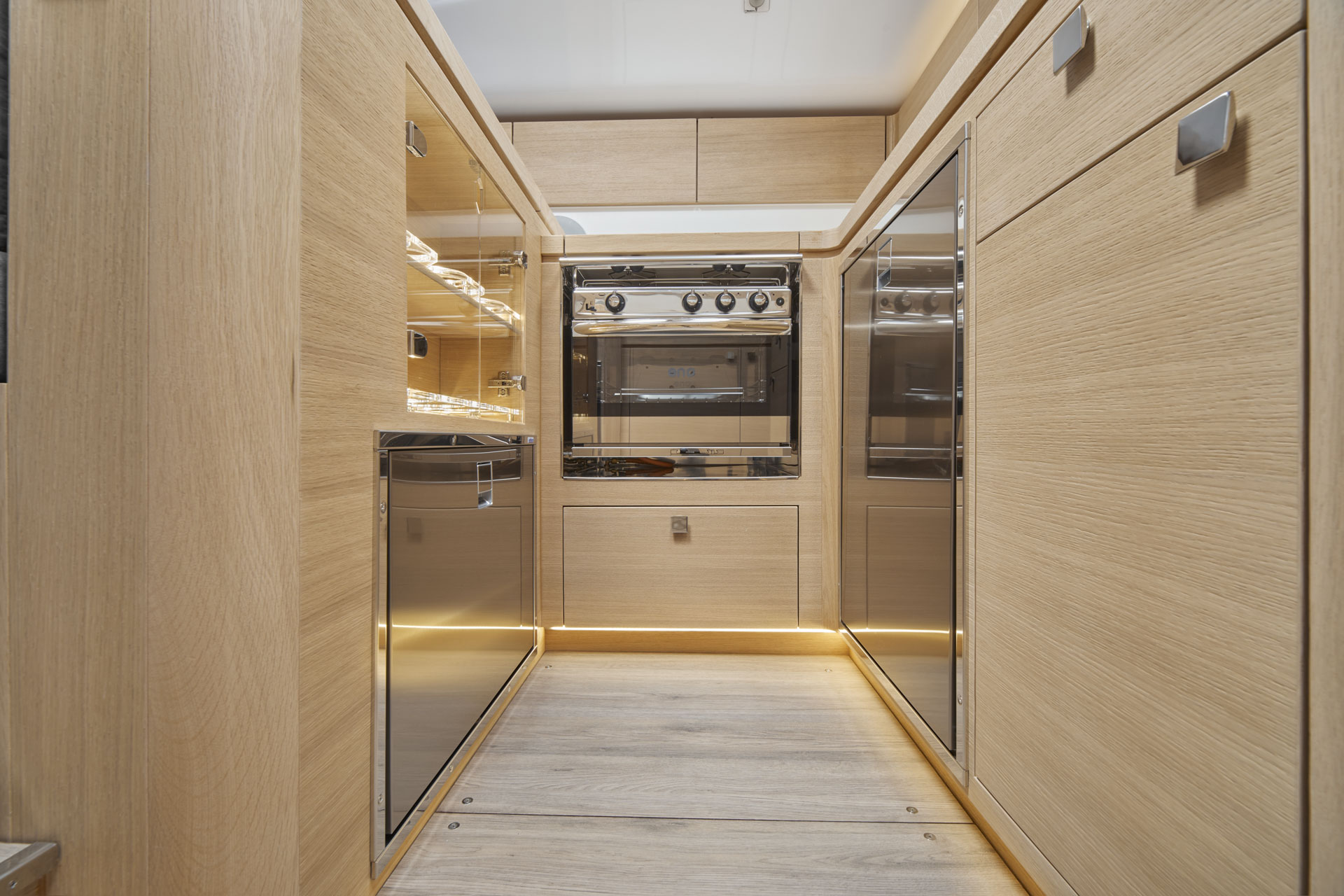

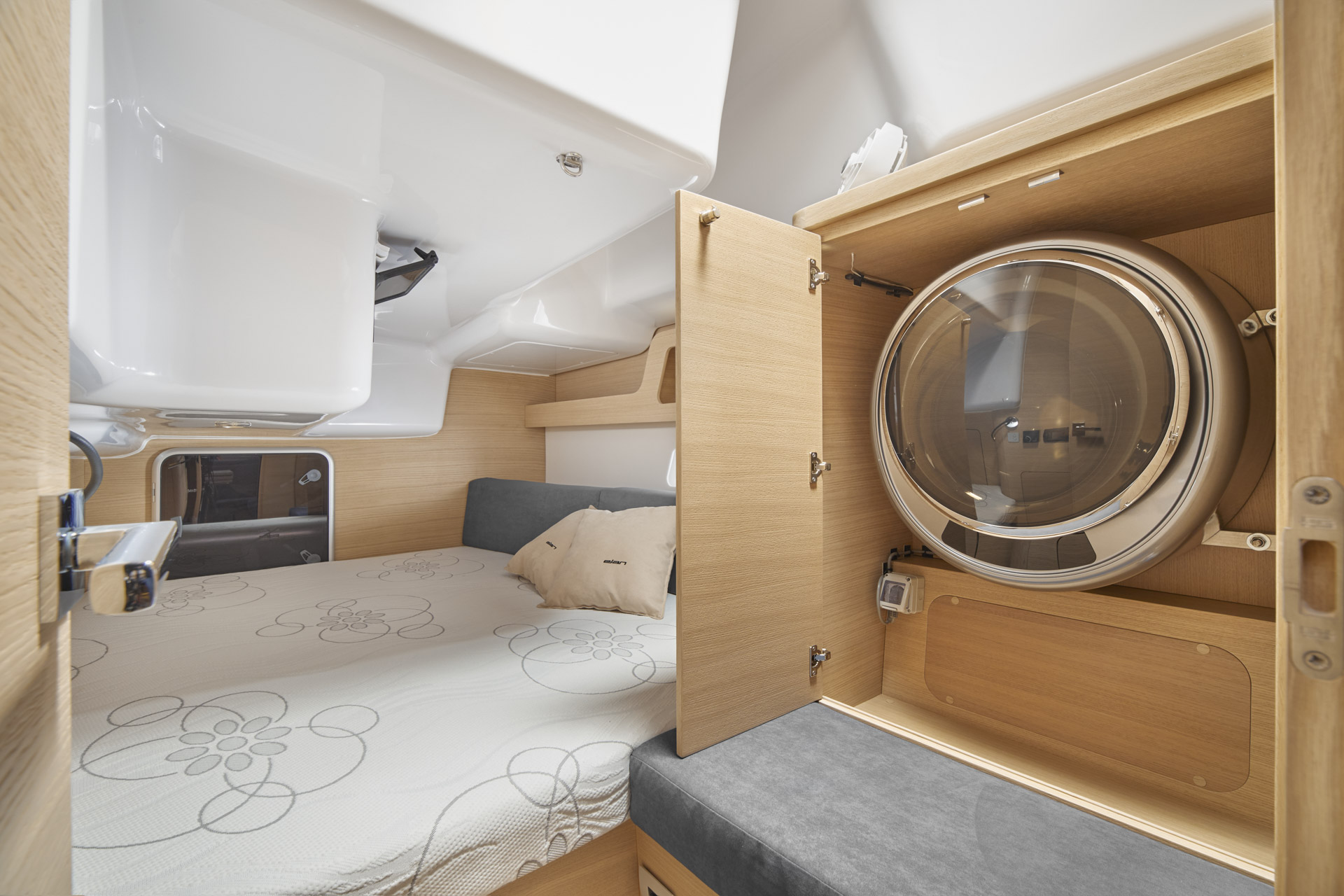

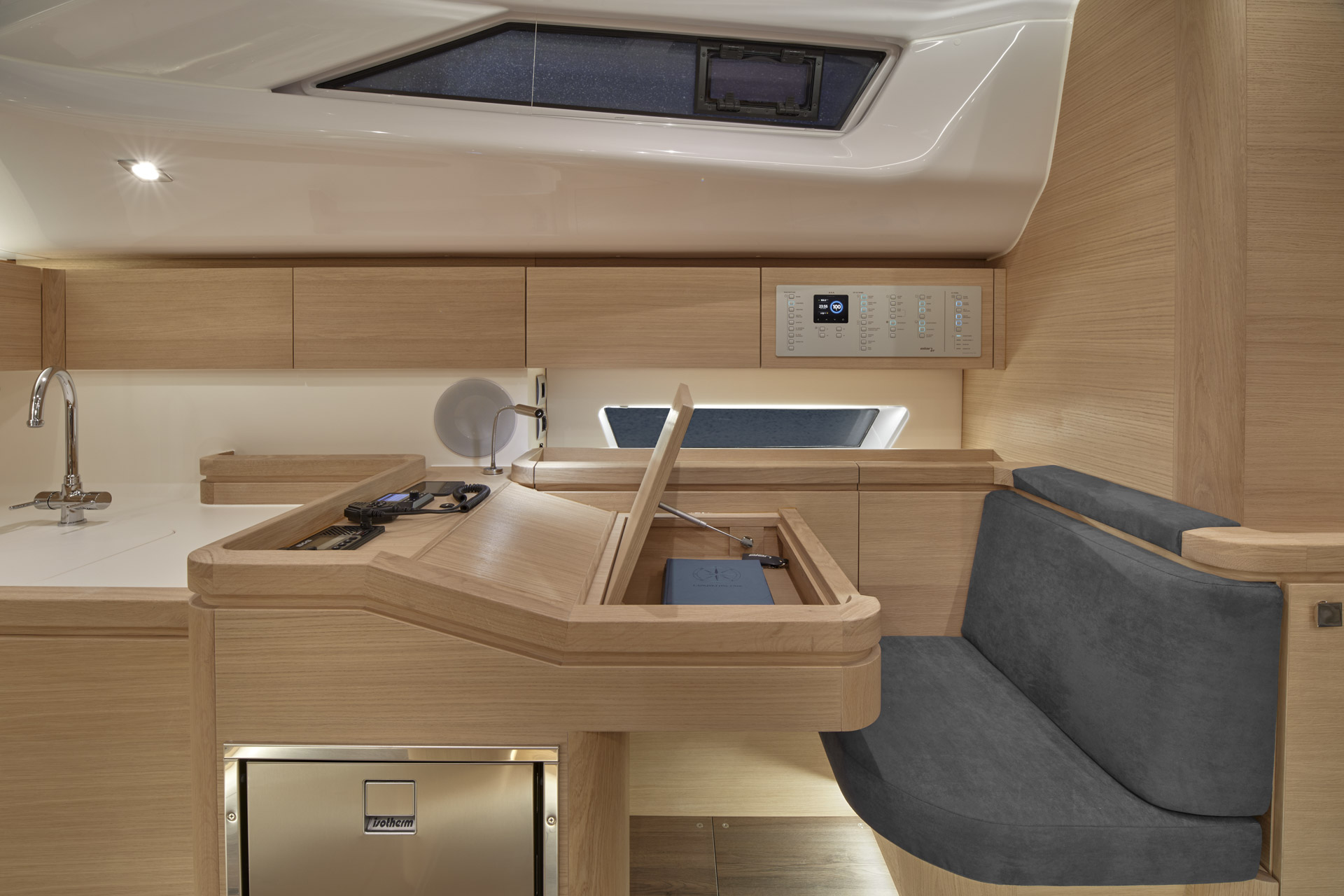

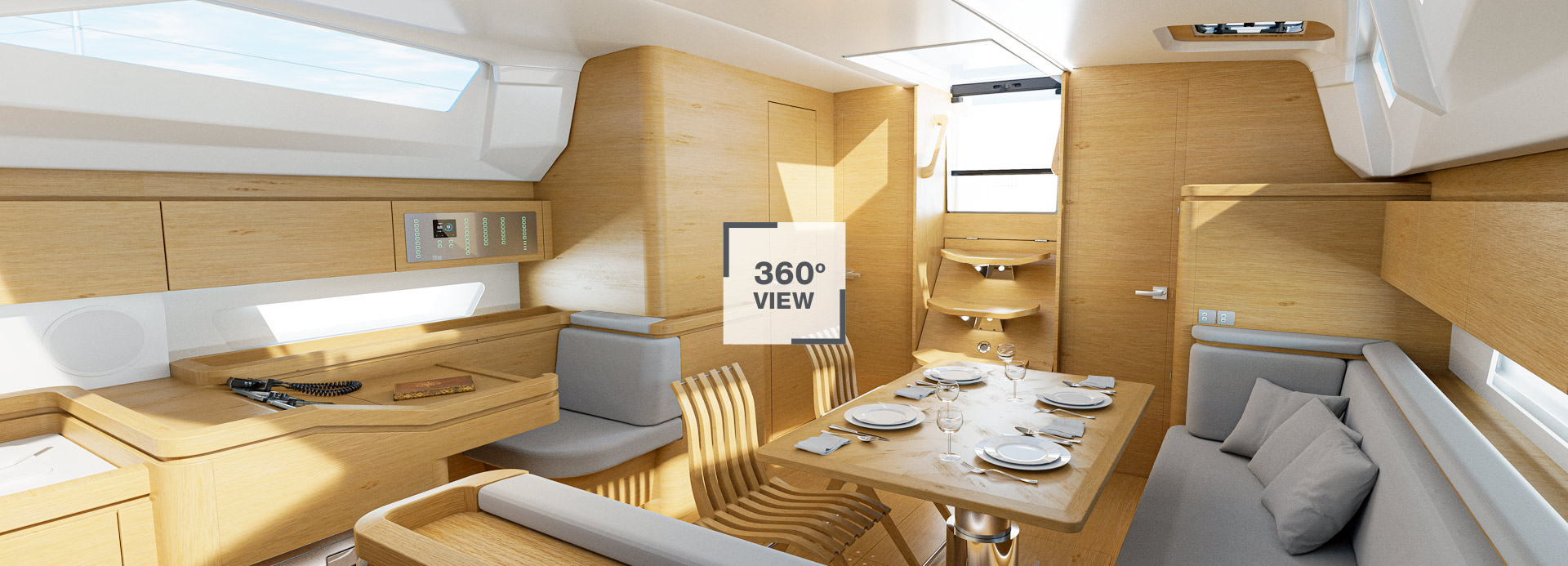

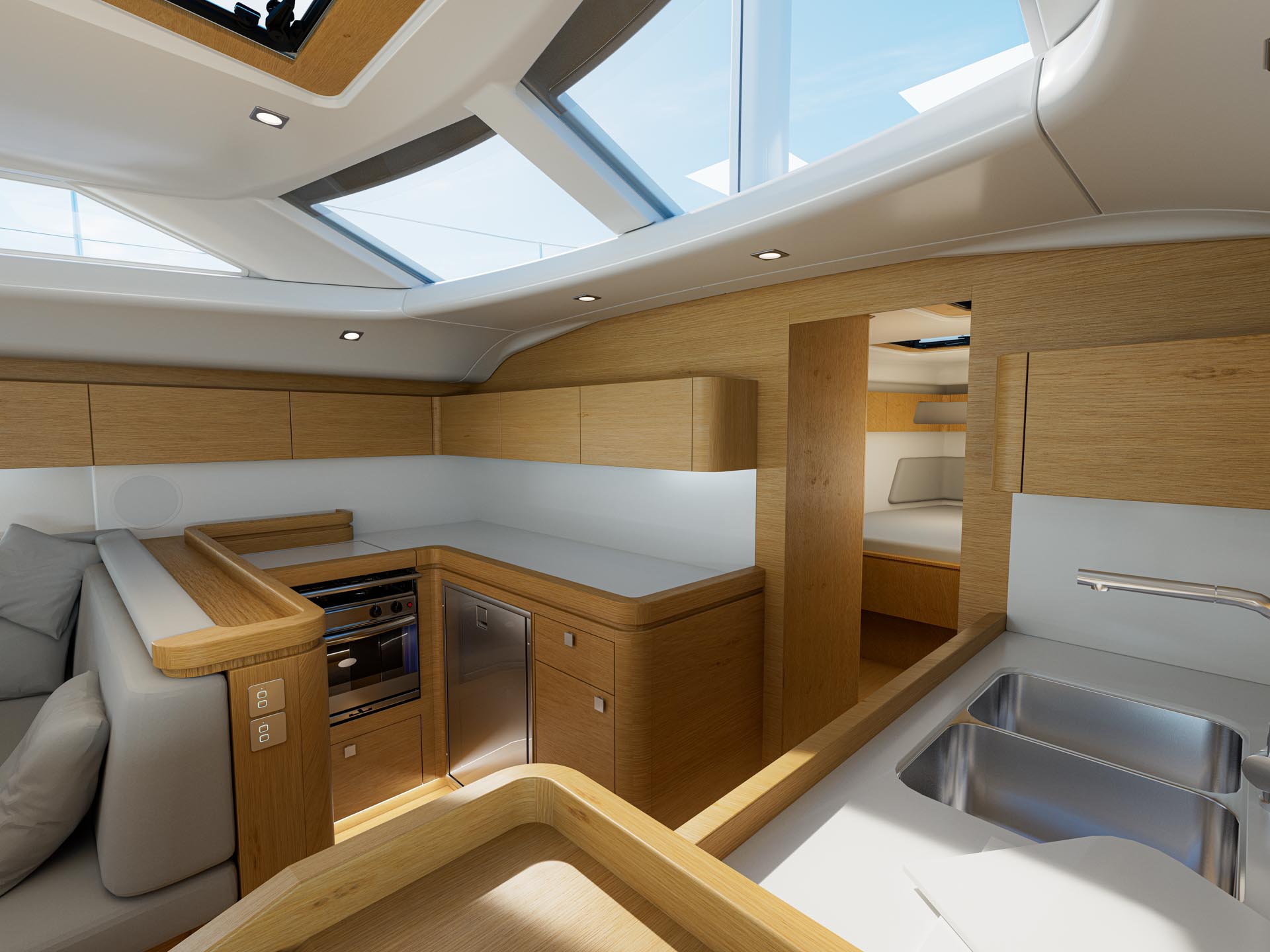

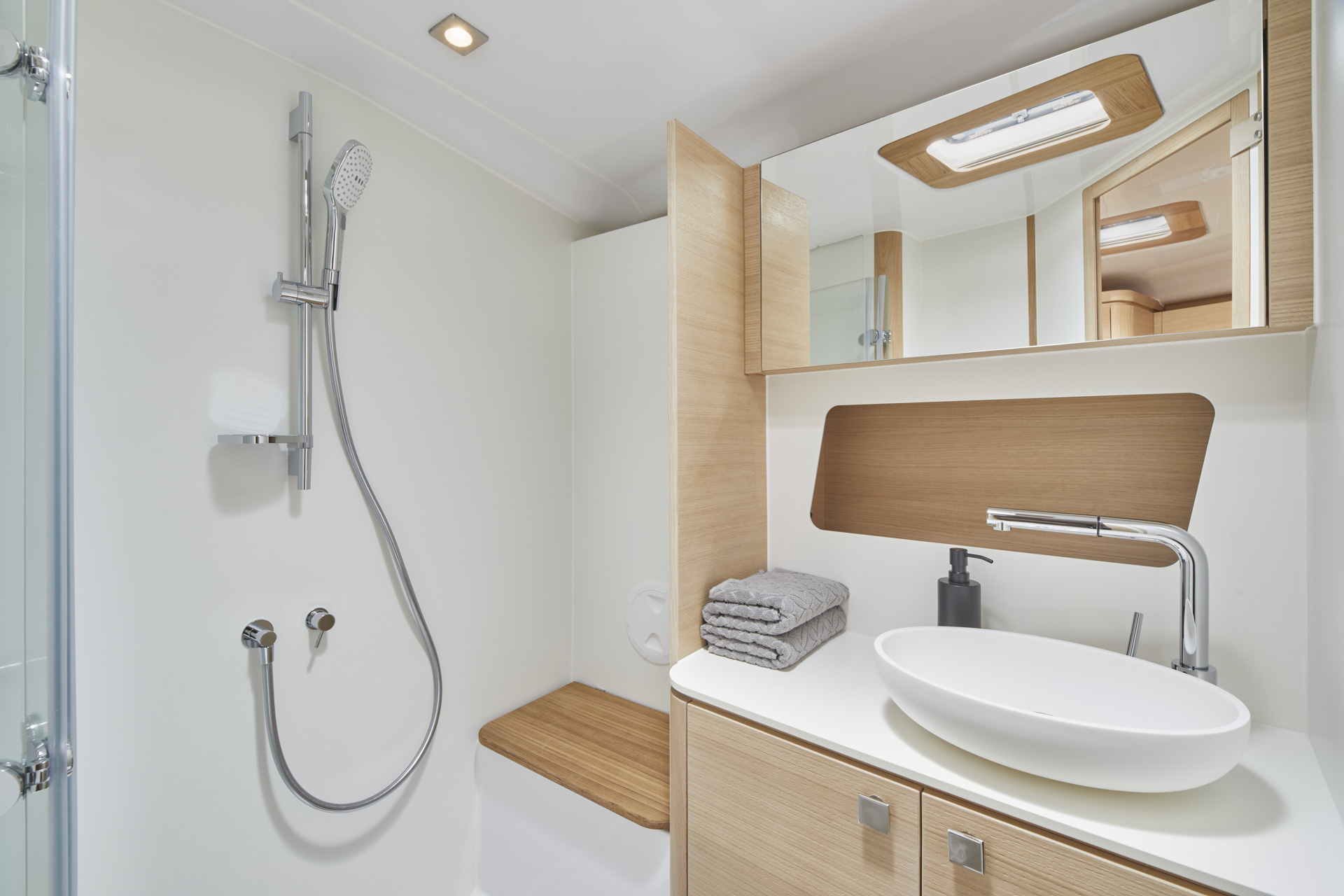

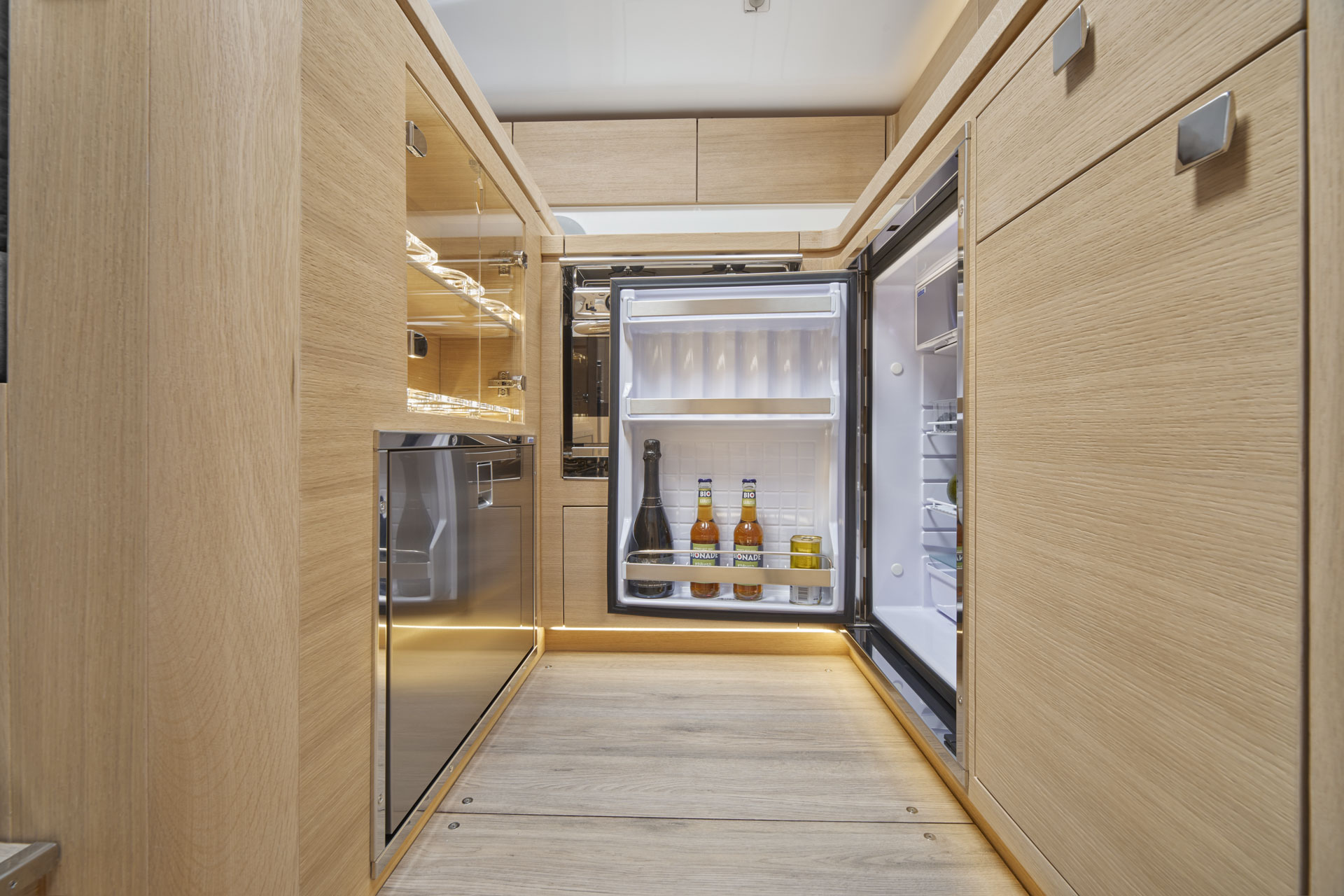

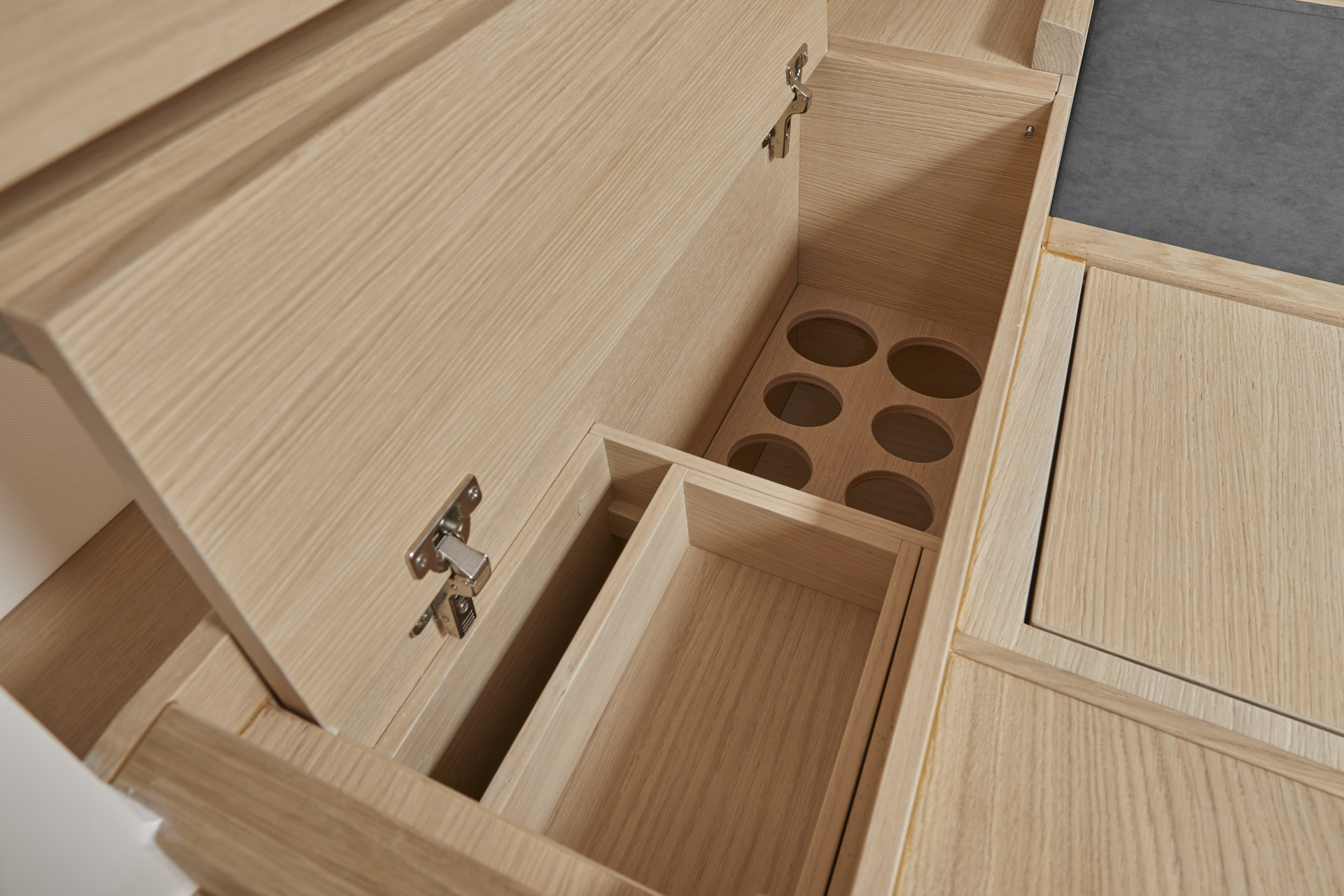

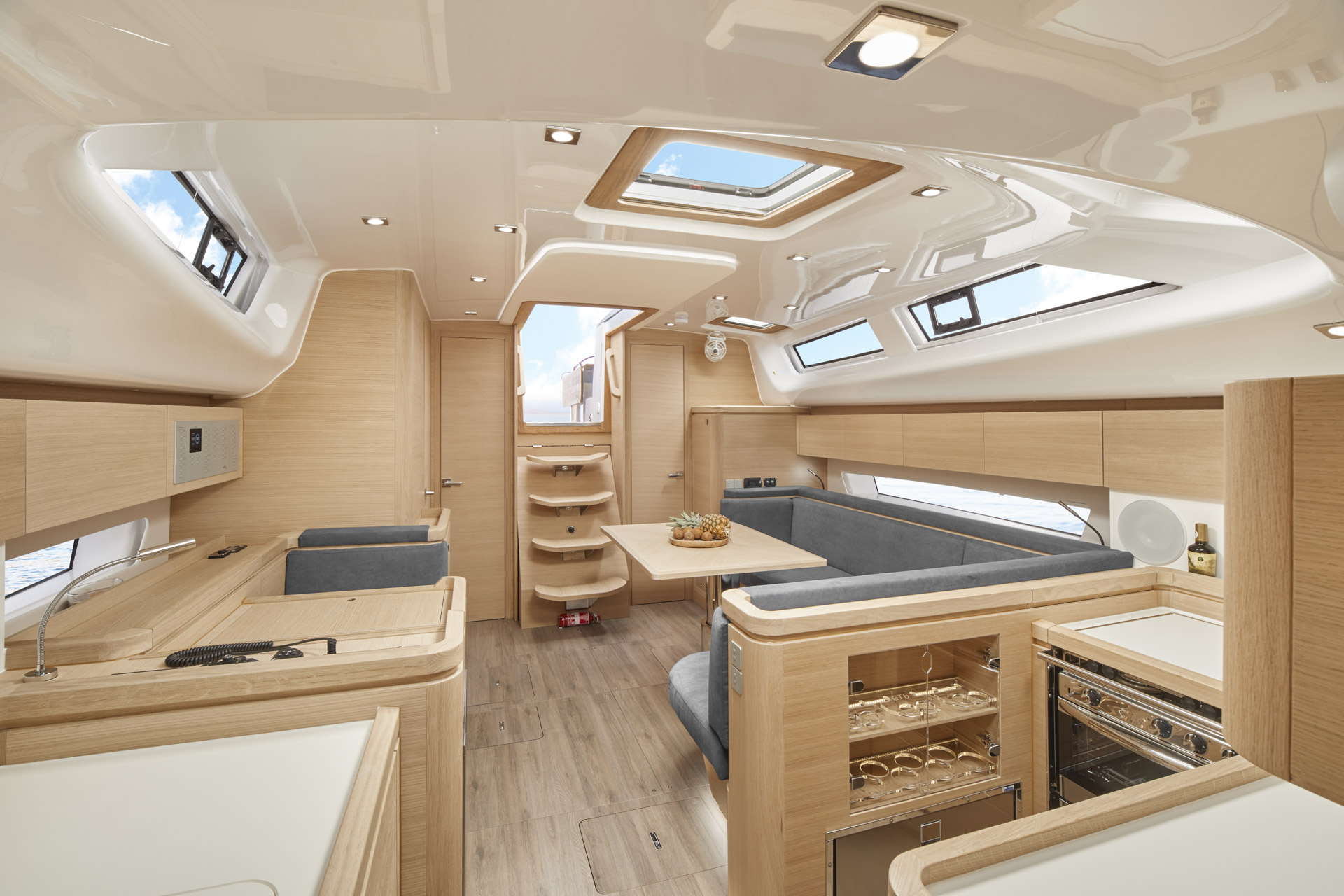

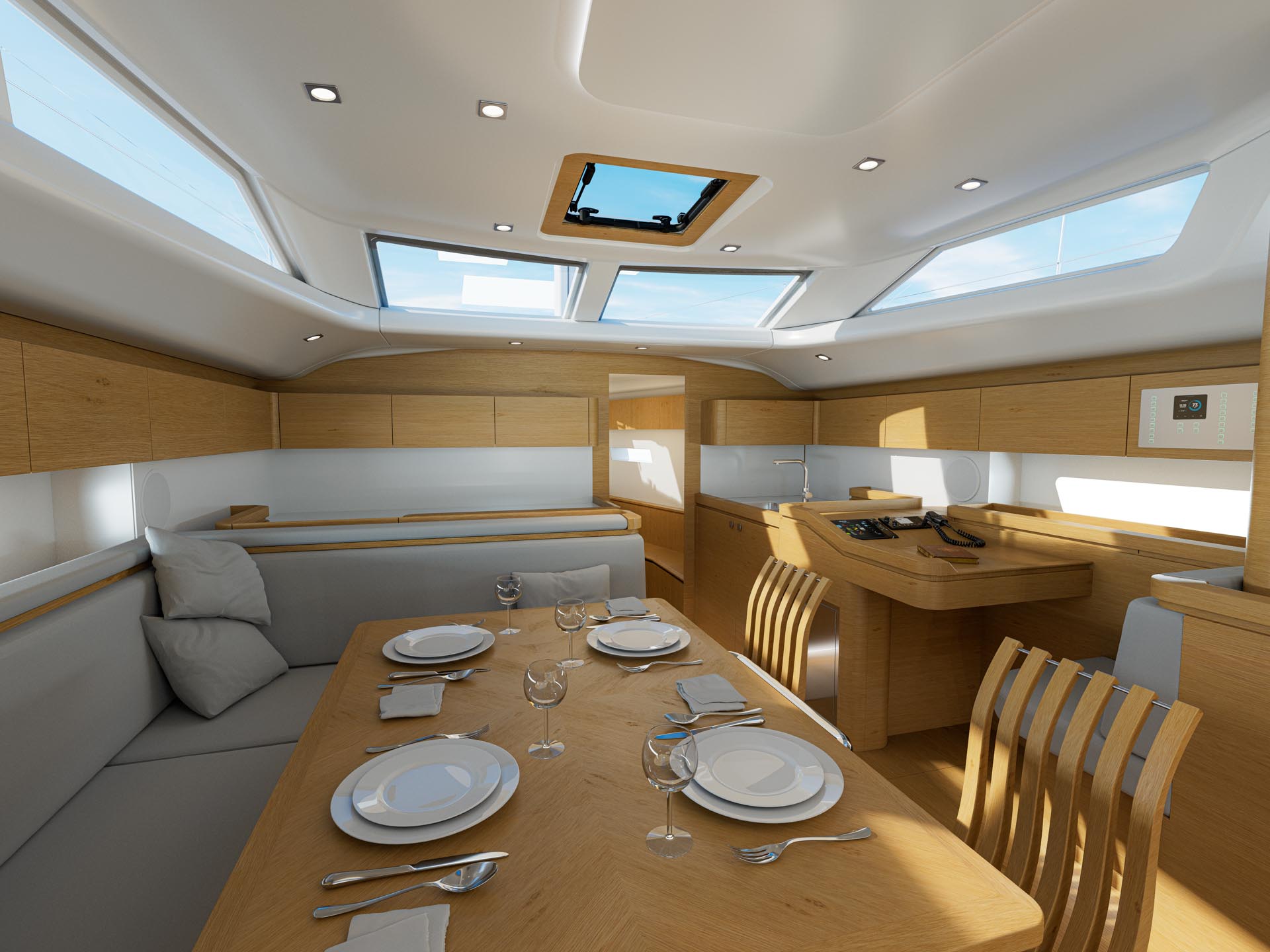

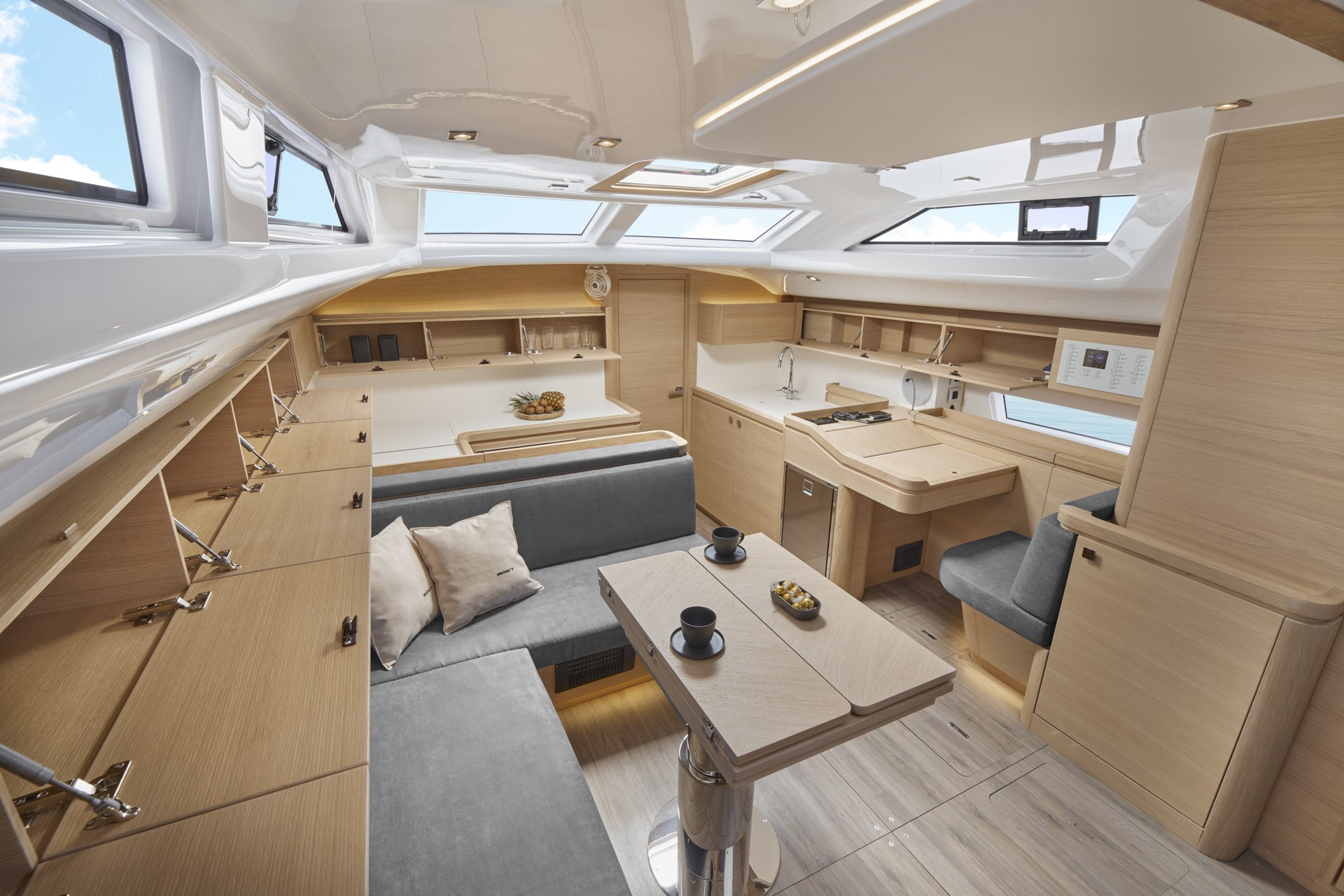

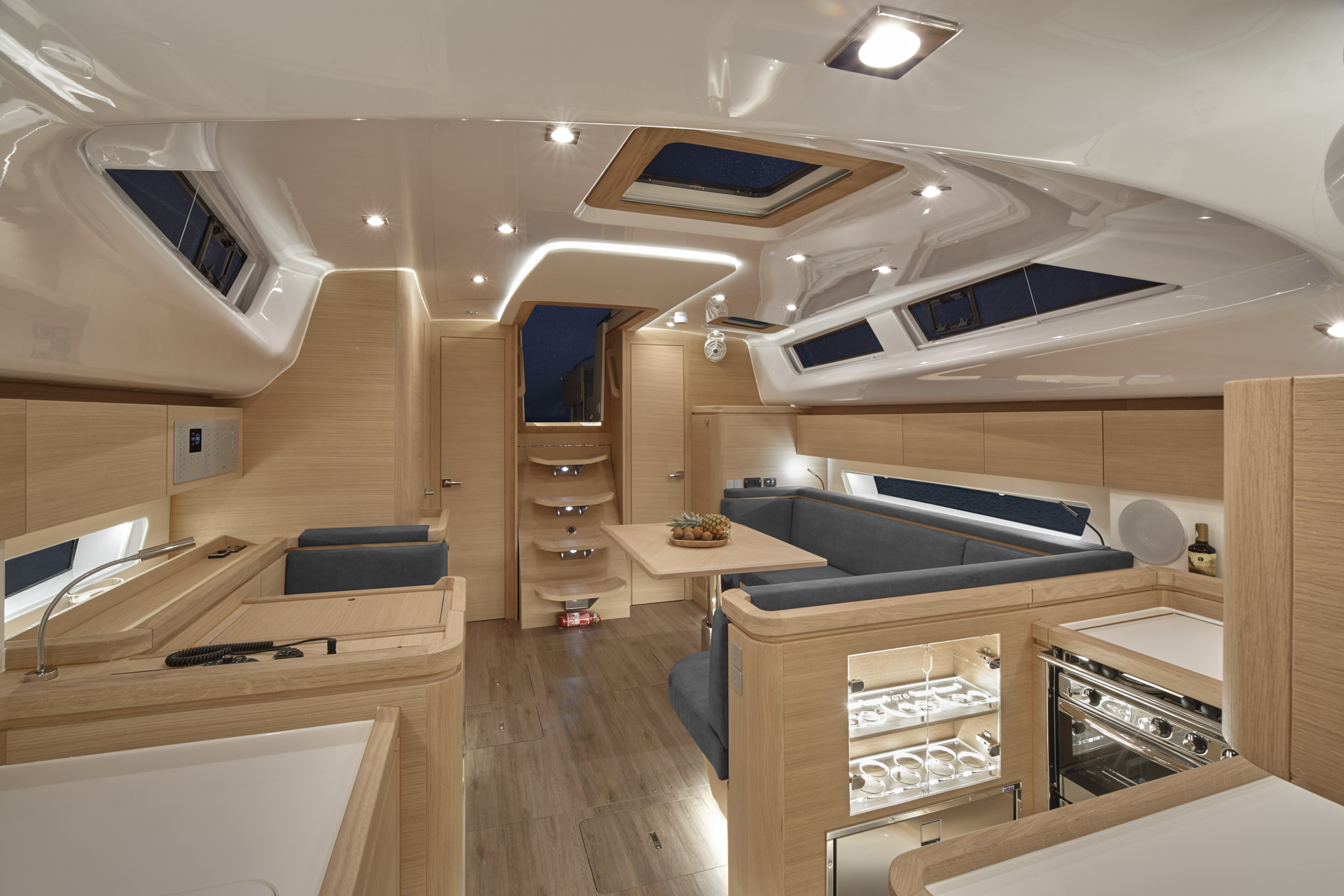

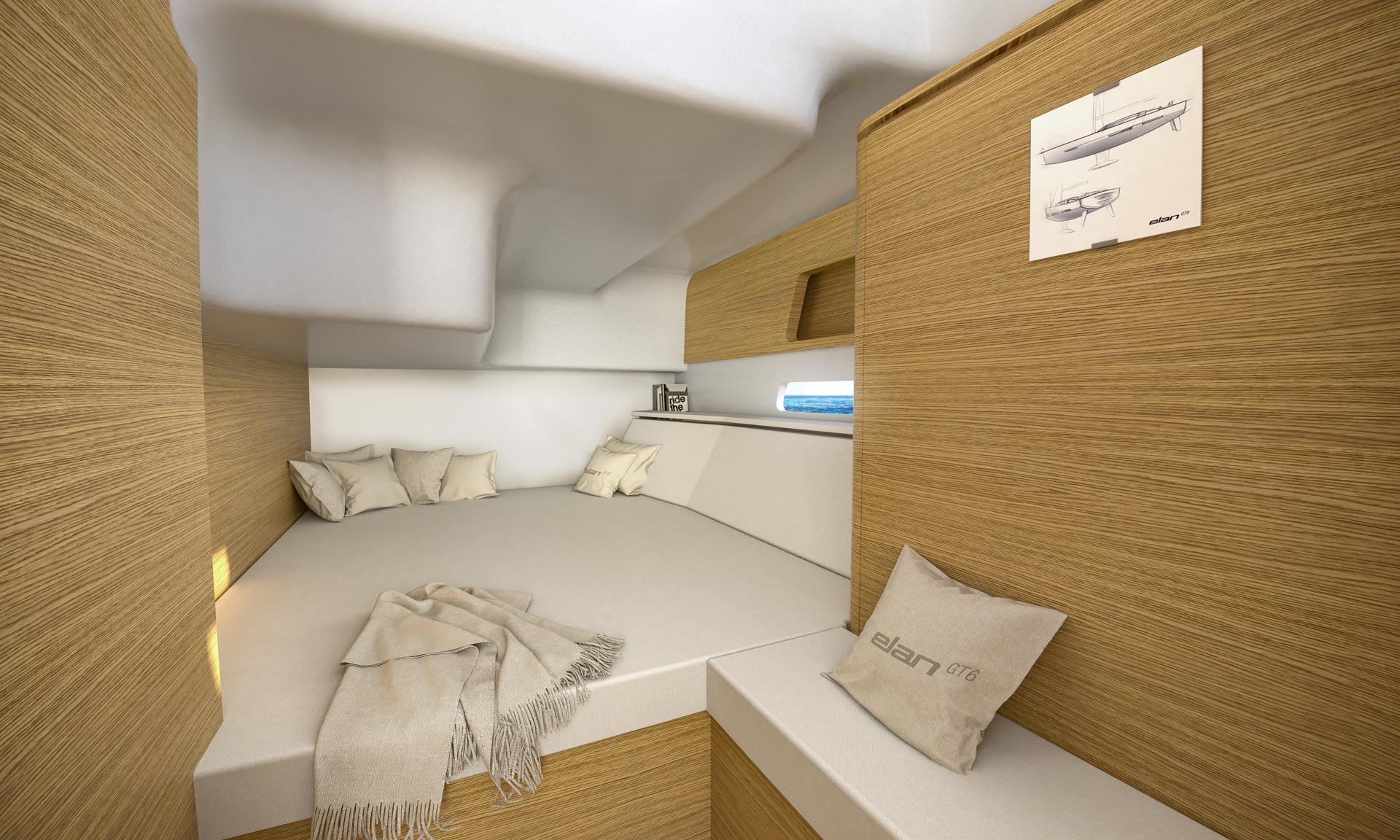

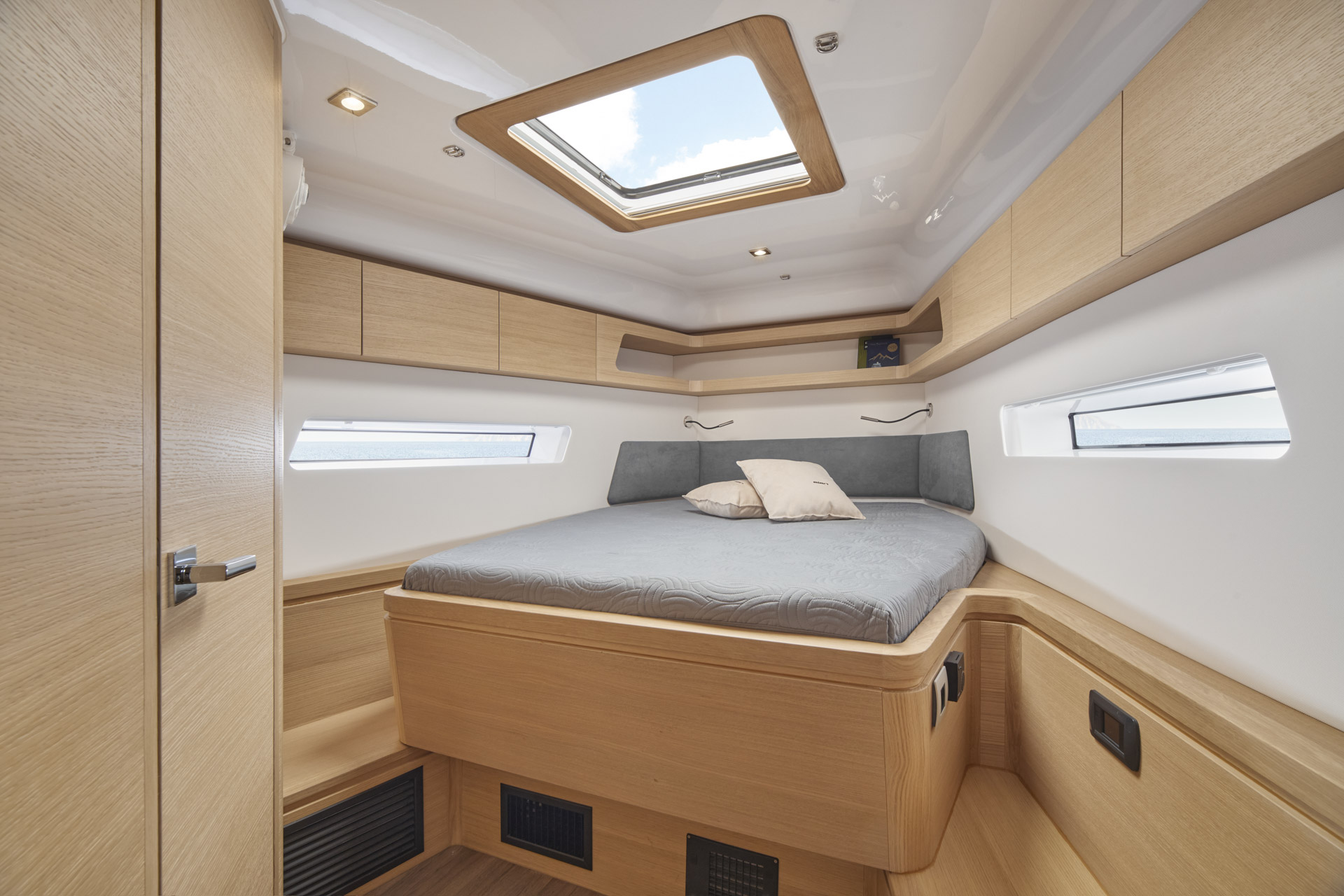

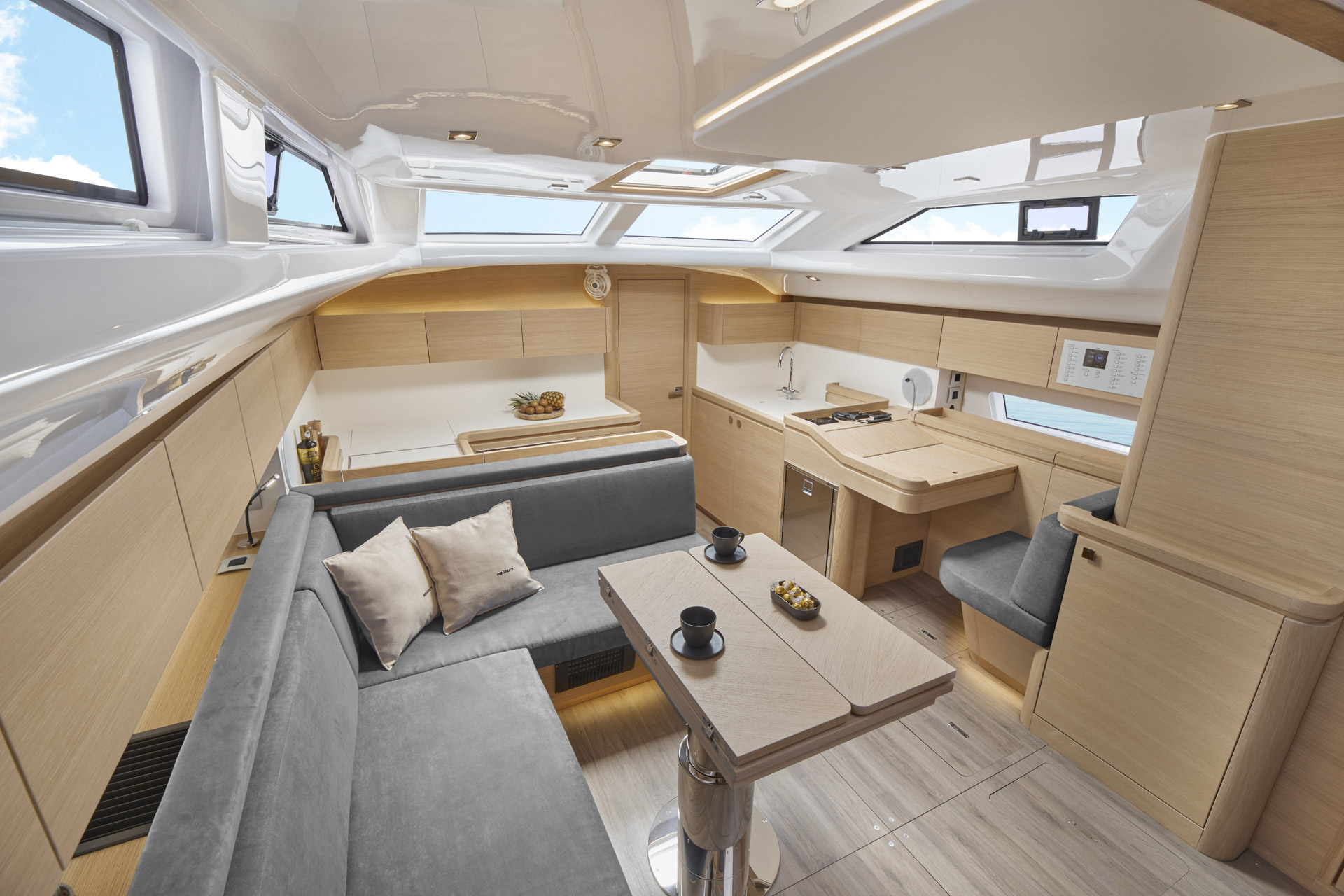

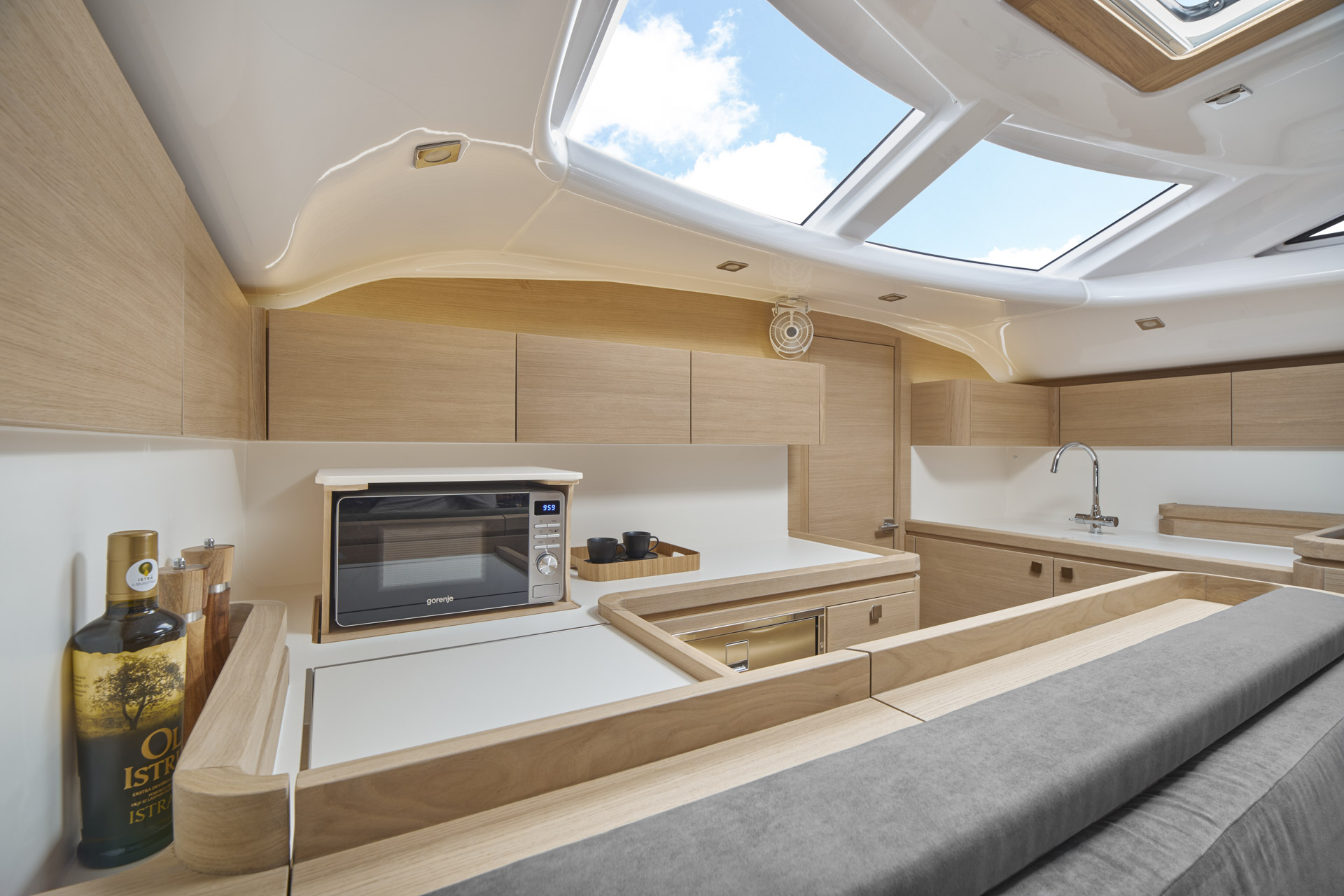

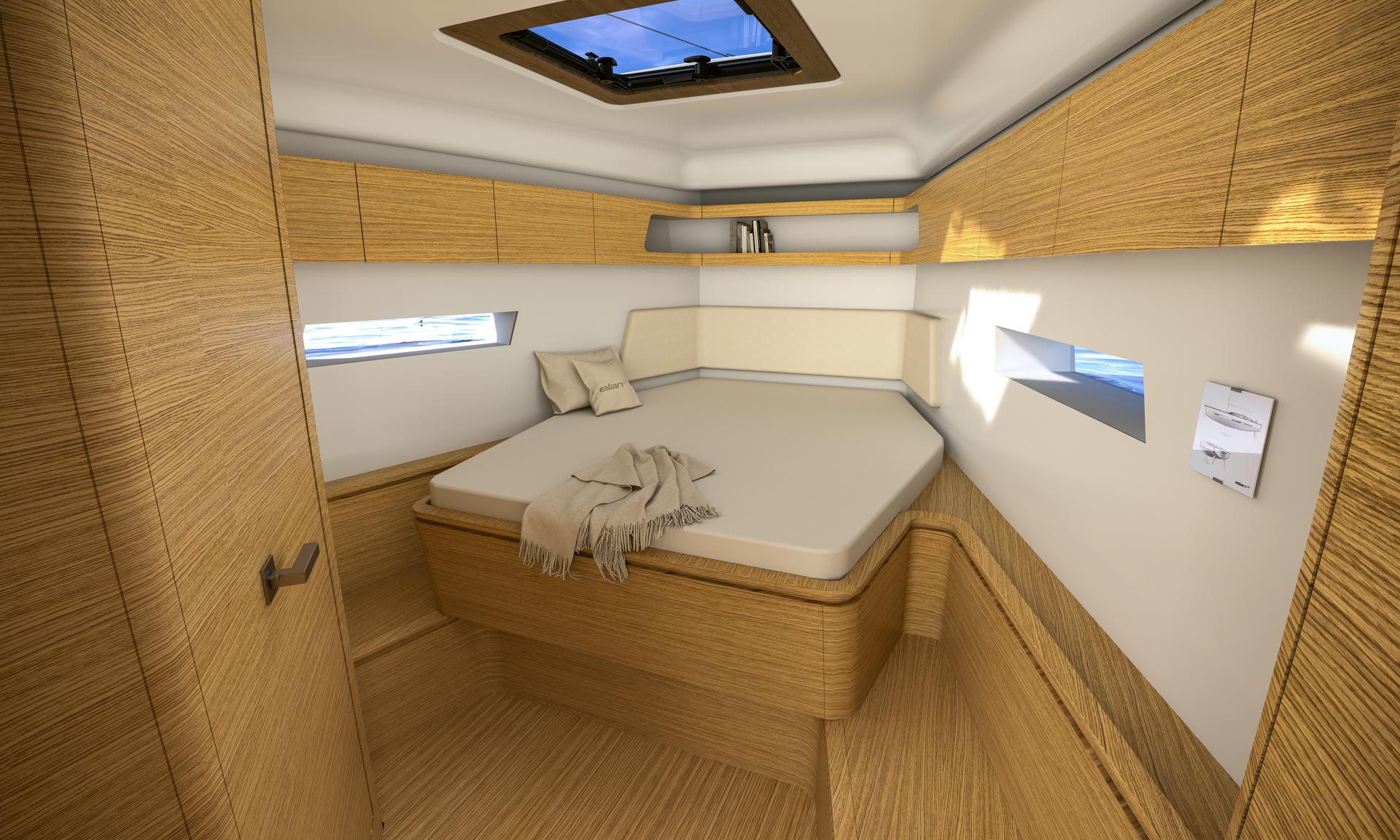

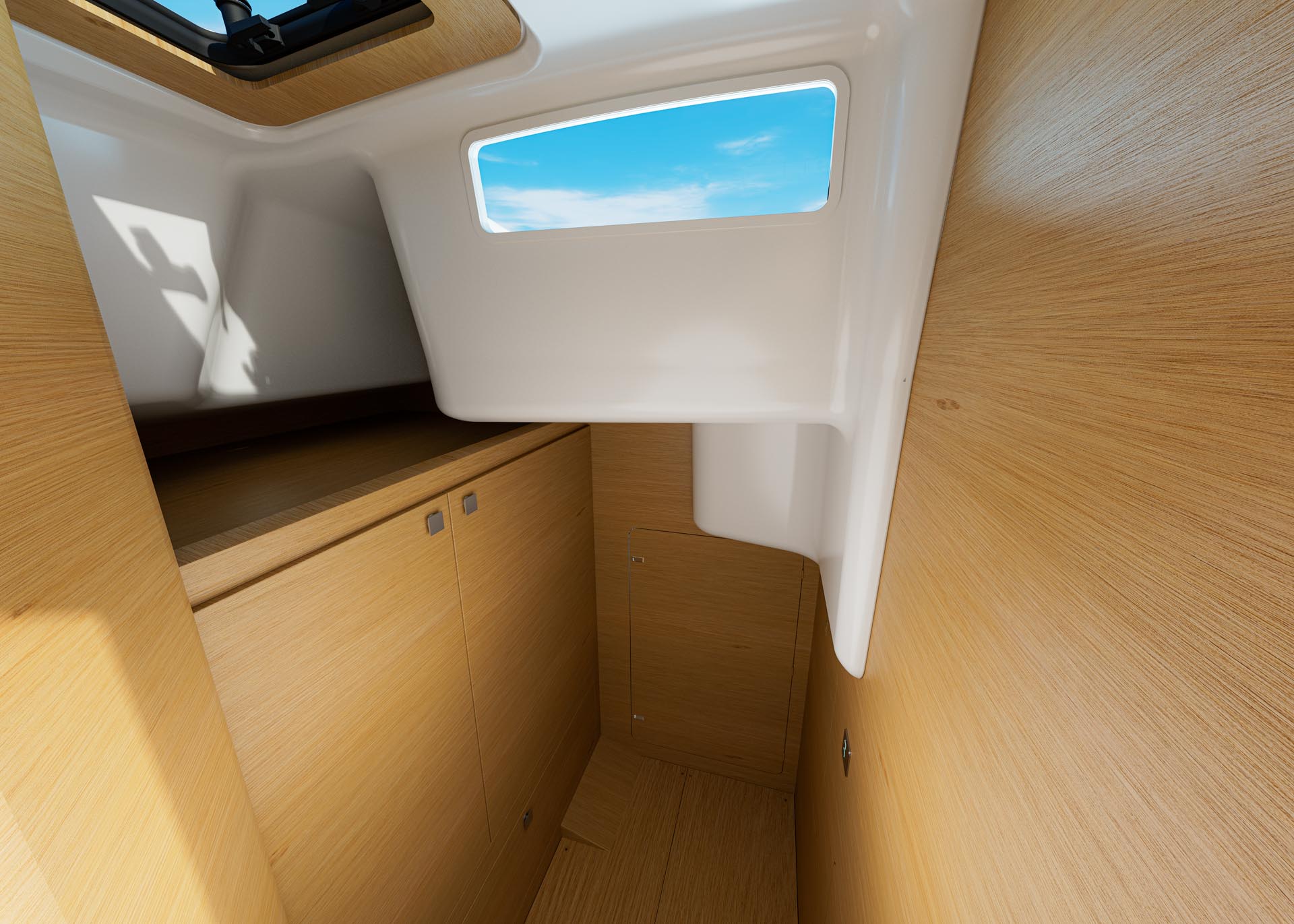

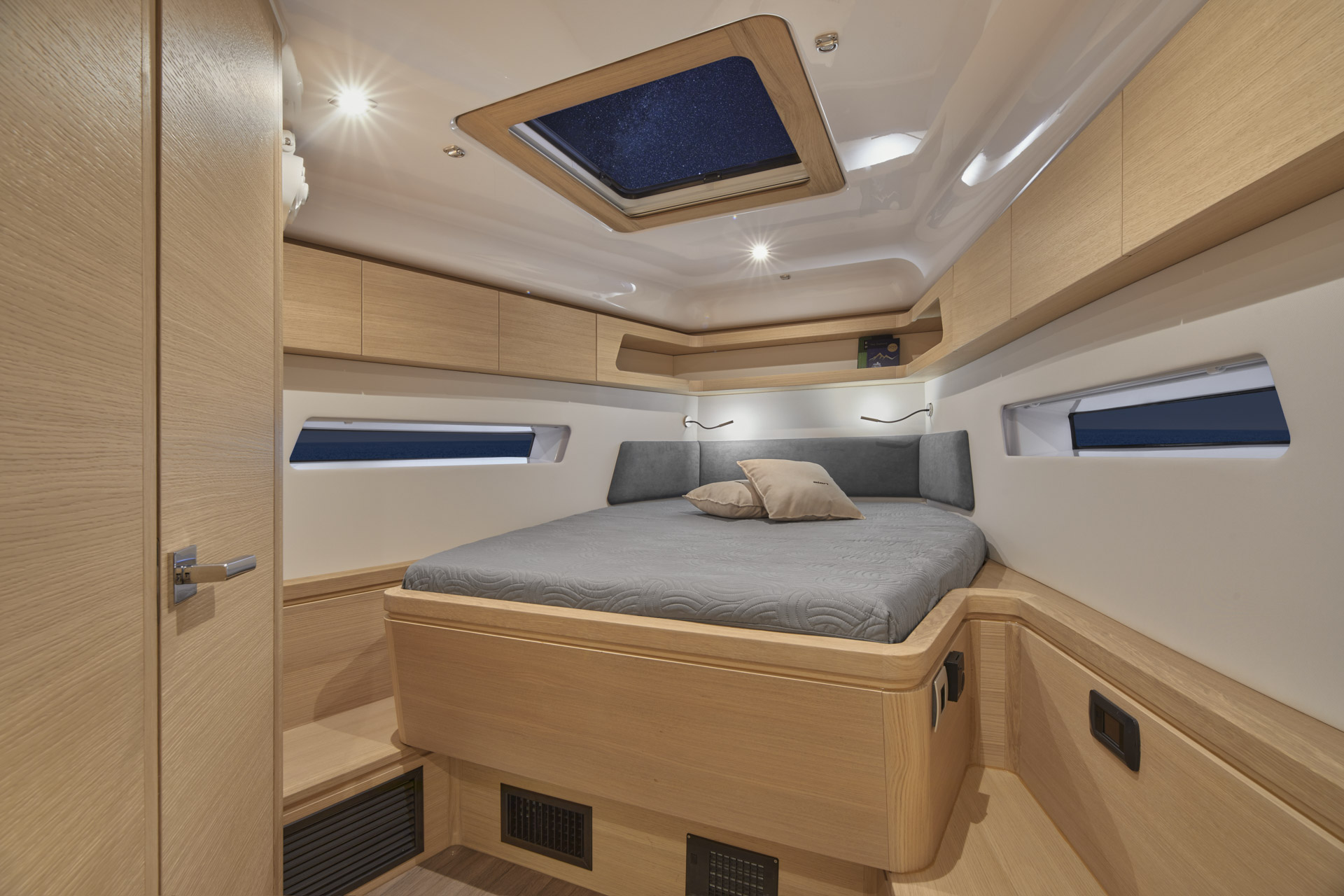

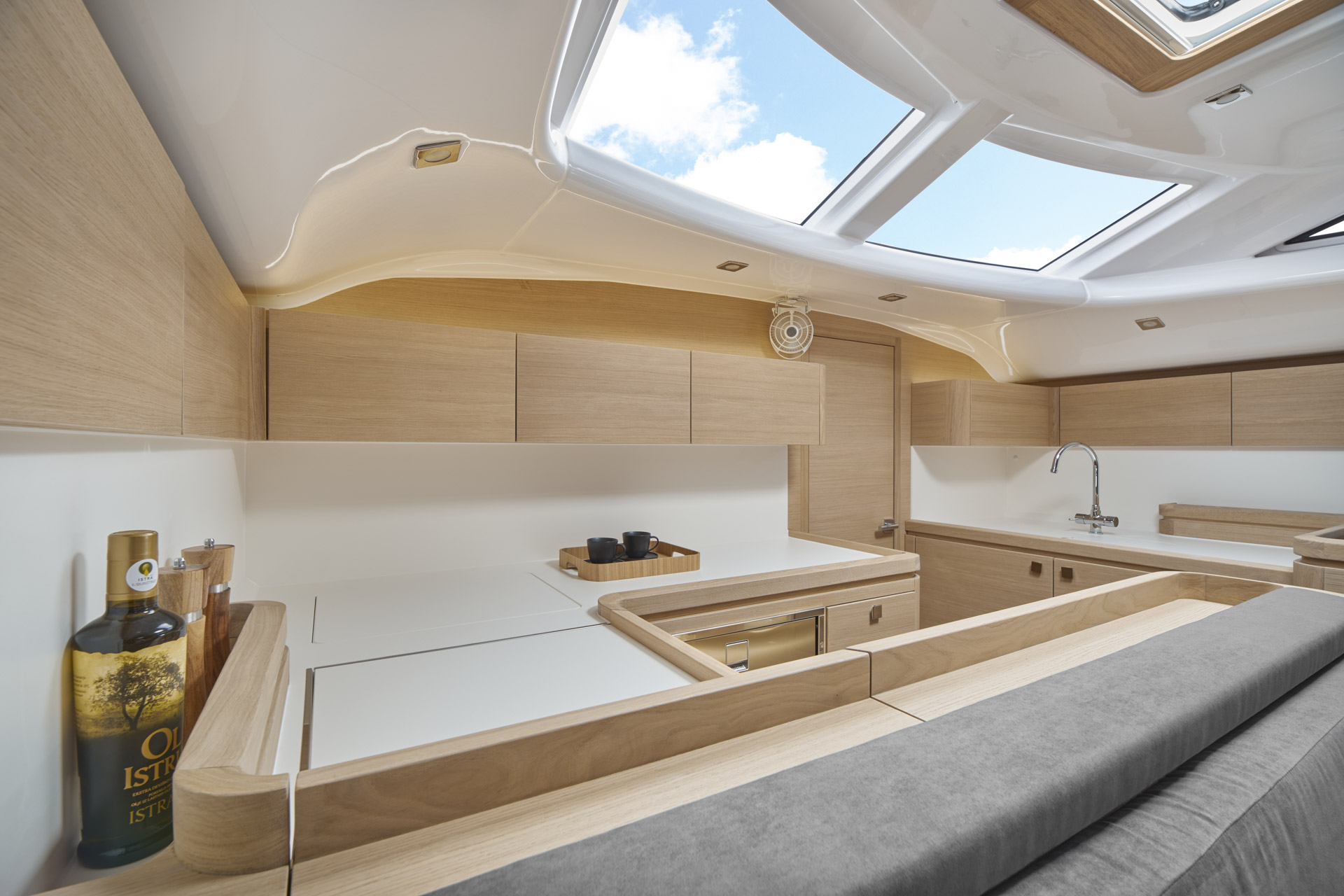

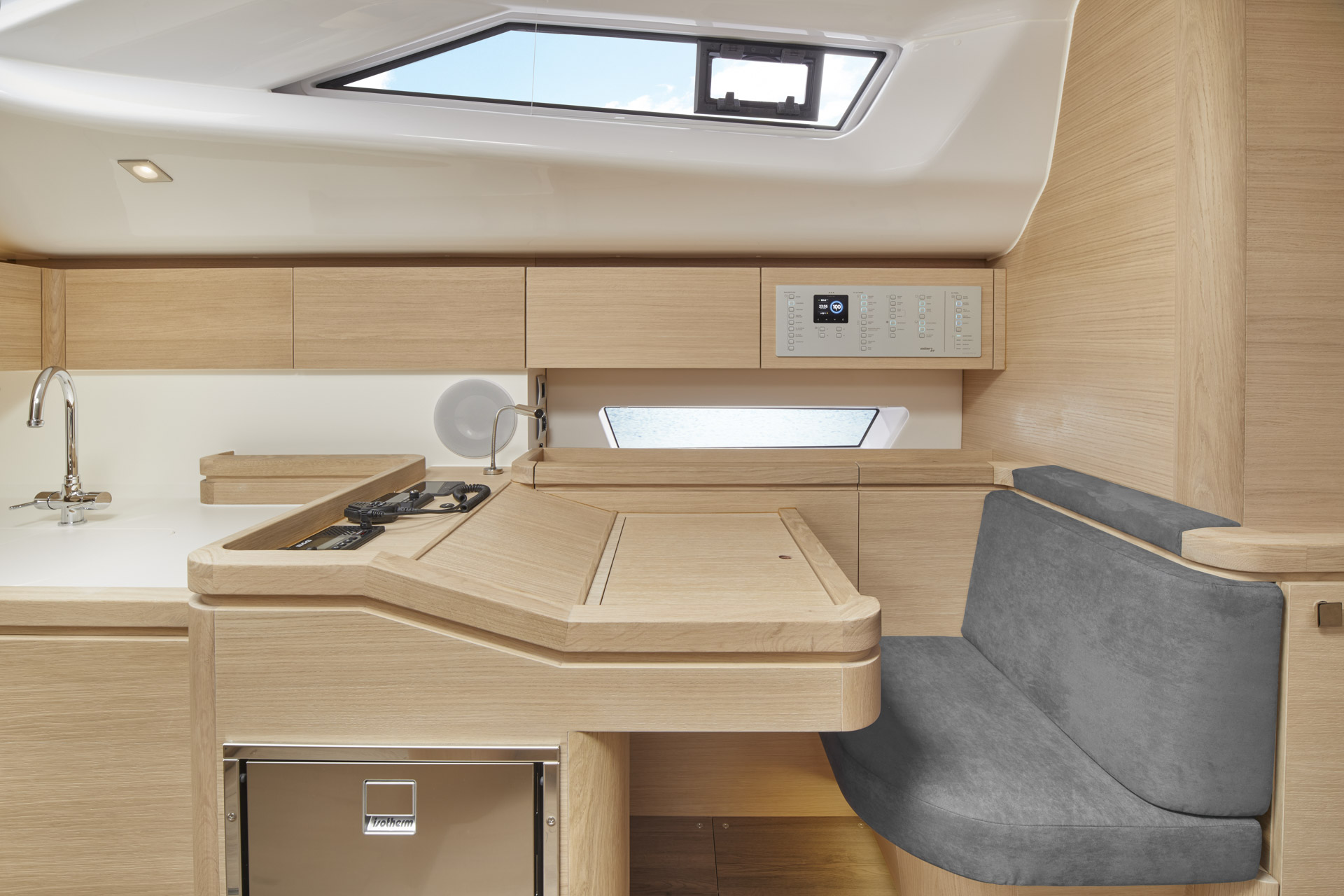

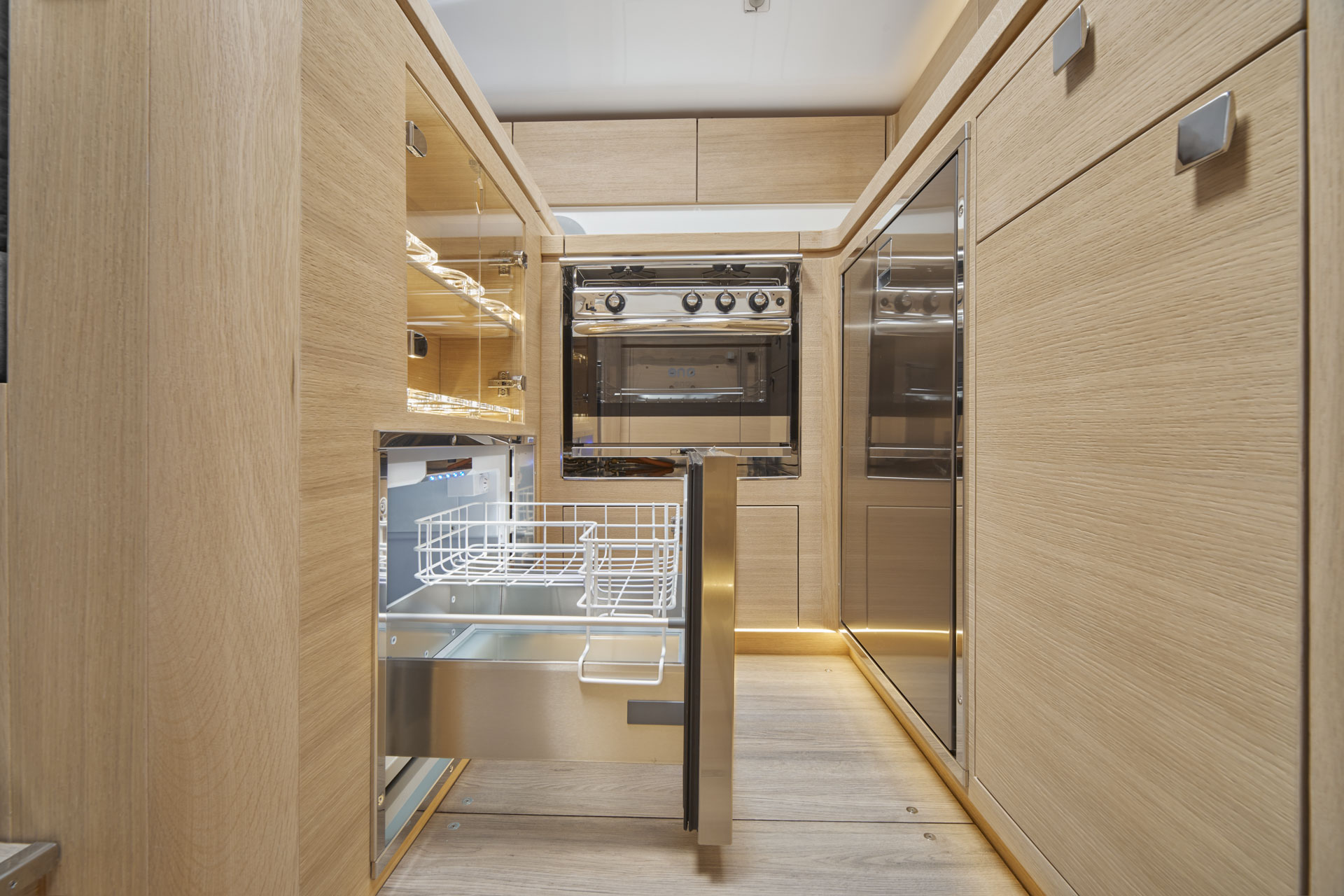

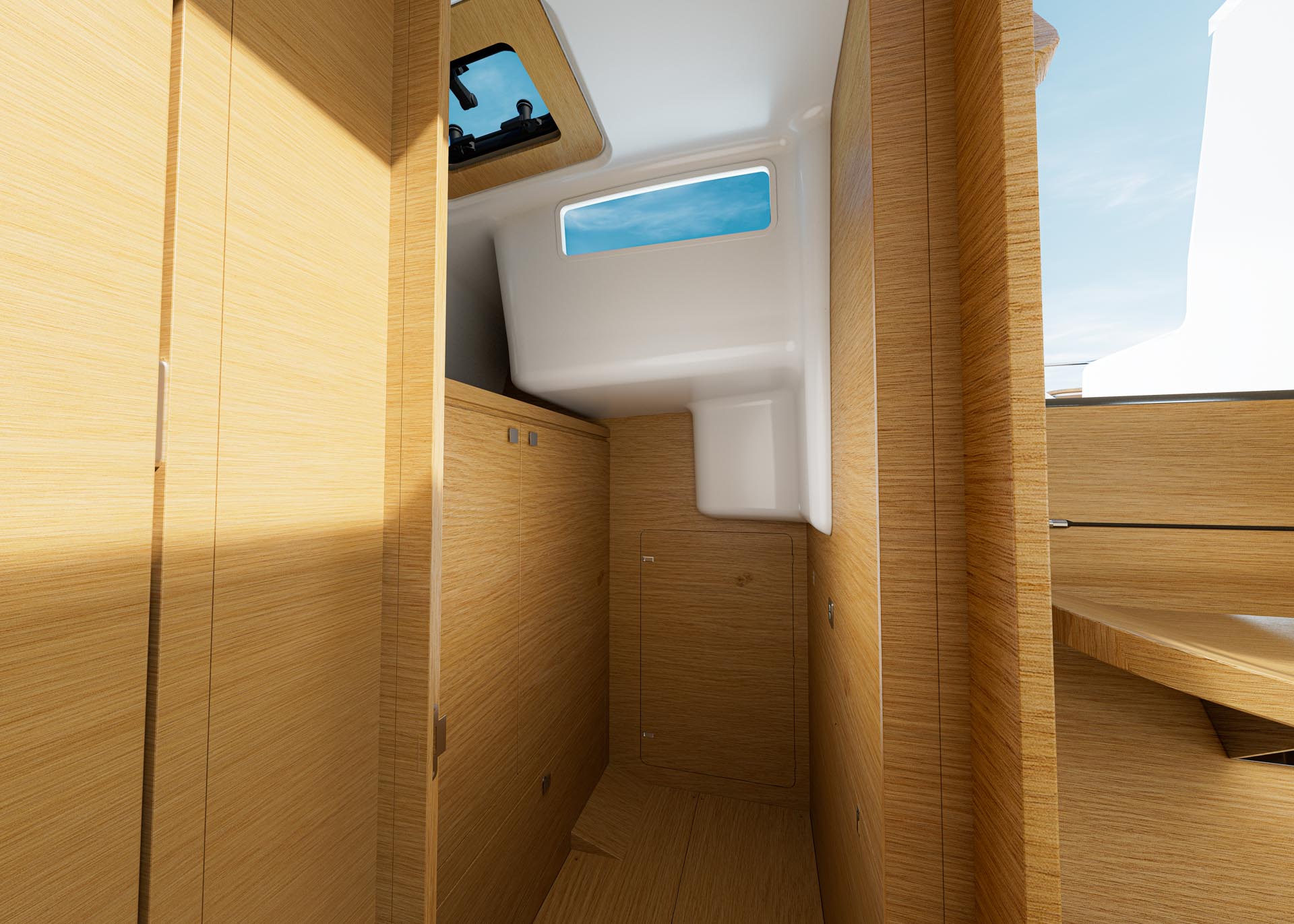

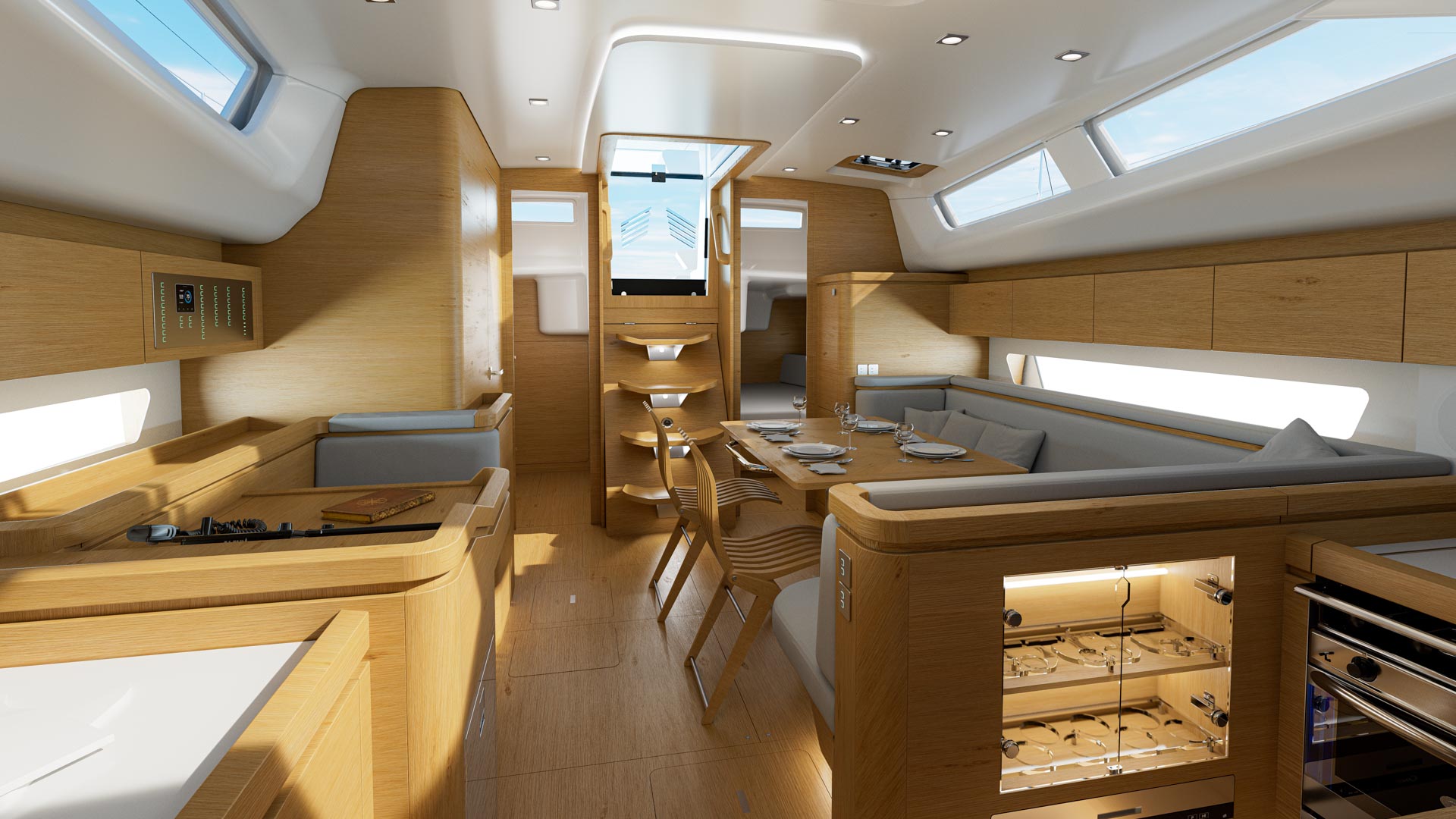

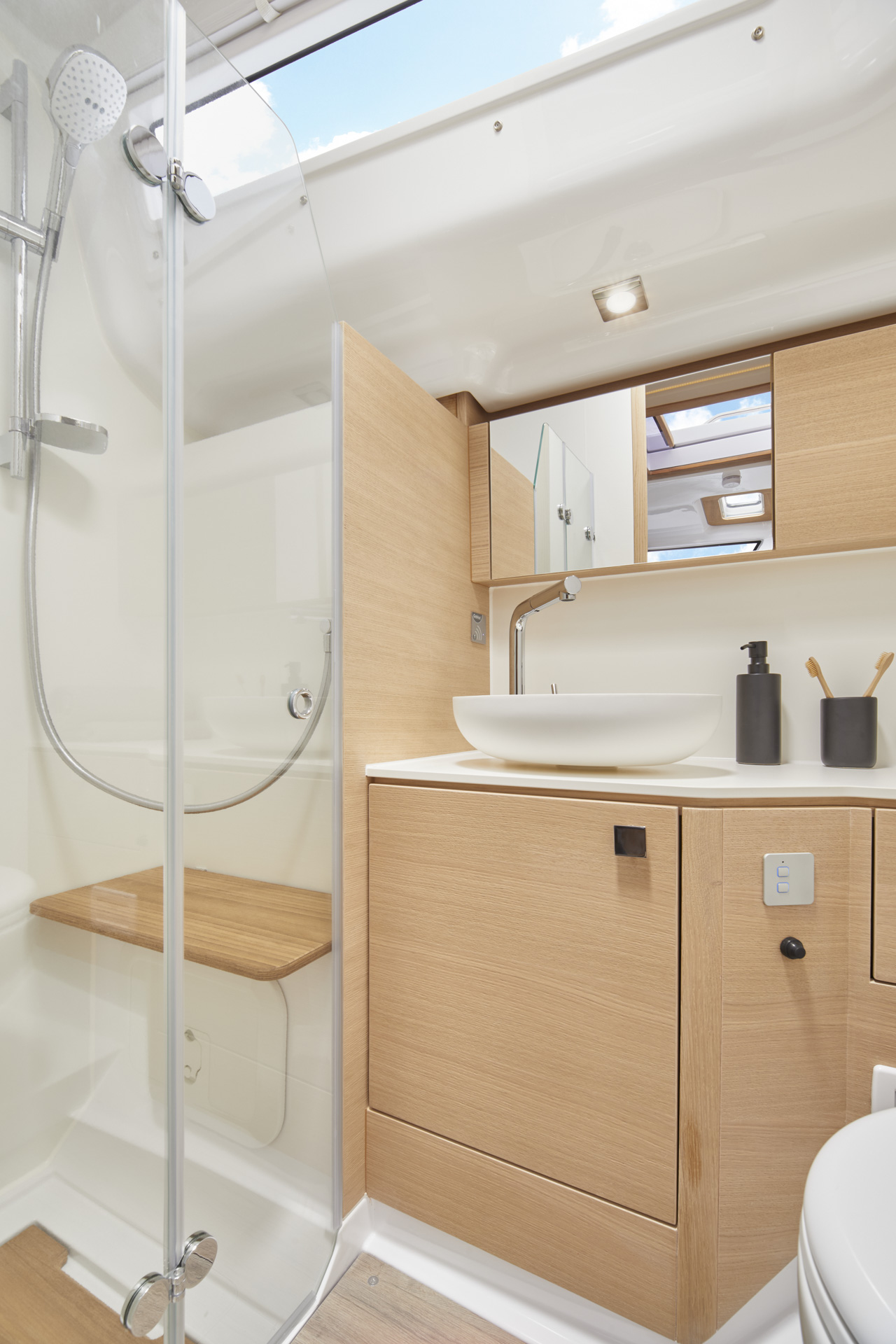

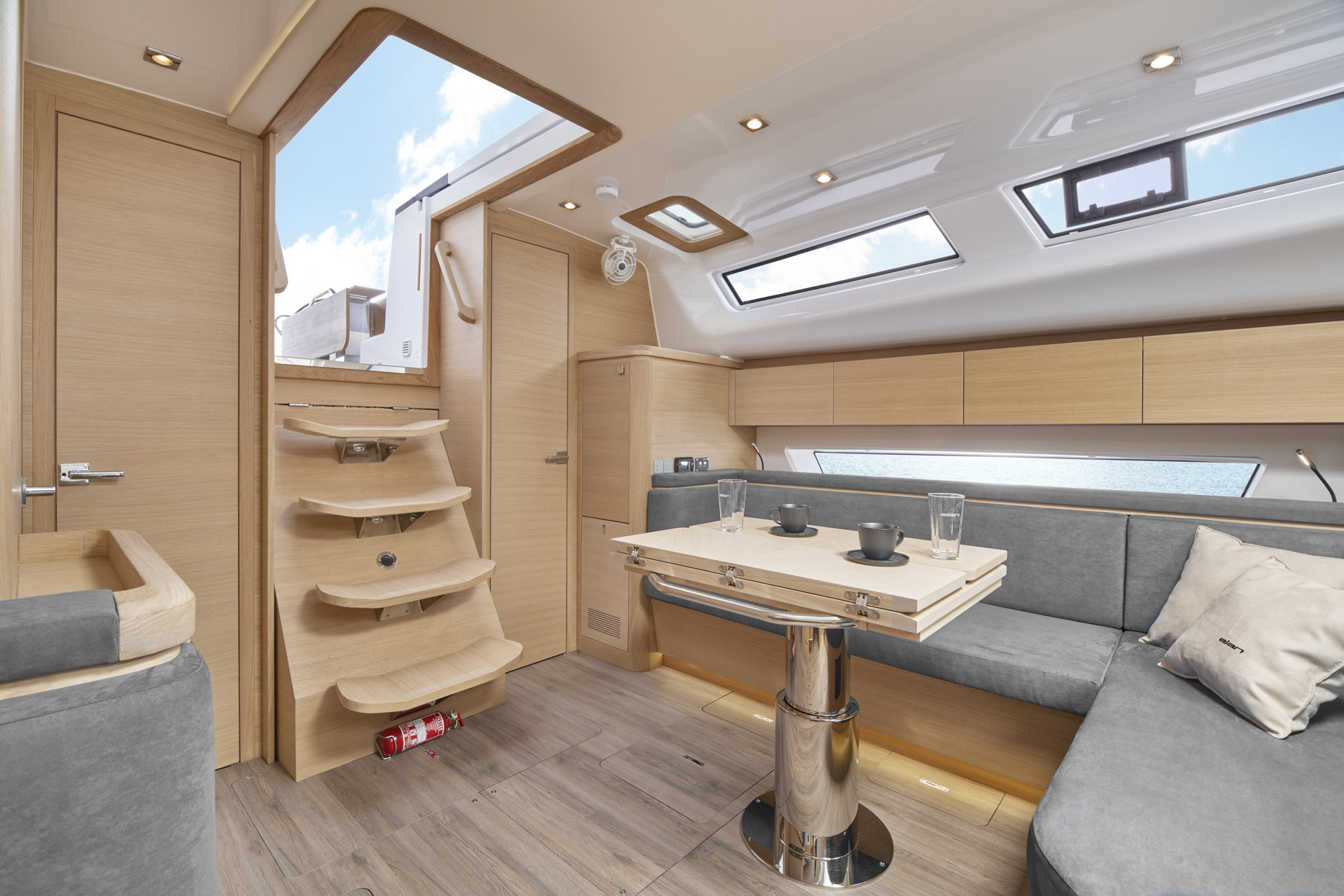

Interior Elegance: Comfort Meets Adventurous Spirit

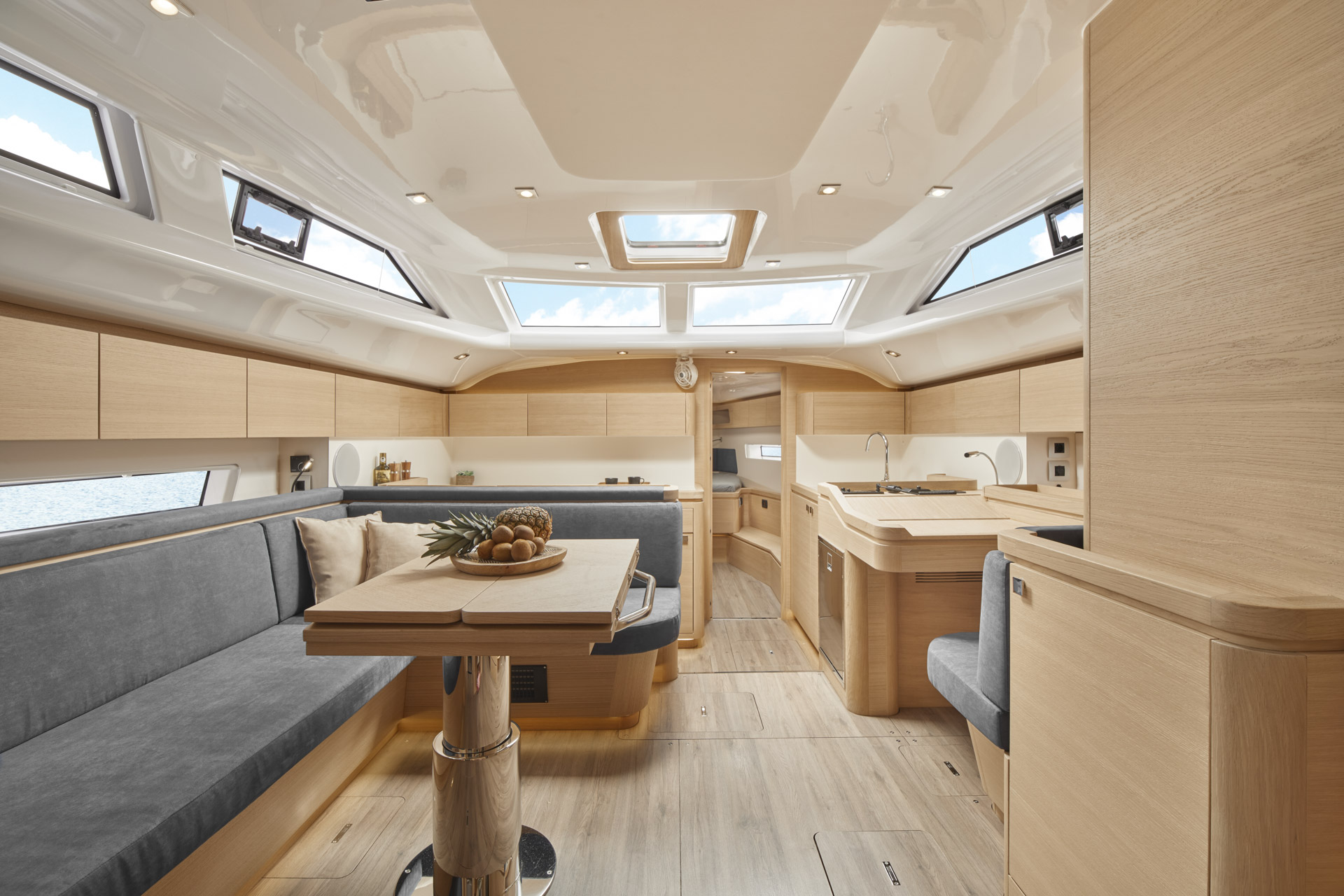

Upon stepping into the Elan GT6 X, one is immediately struck by the harmonious blend of luxury and functionality that defines the interior. Crafted through the expert touch of Studio F. A. Porsche, the space marries aesthetic finesse with practical features. Each facet of the design aims to serve dual purposes: offering comfort to the adventurous sailor and providing a serene sanctuary for those in search of respite.

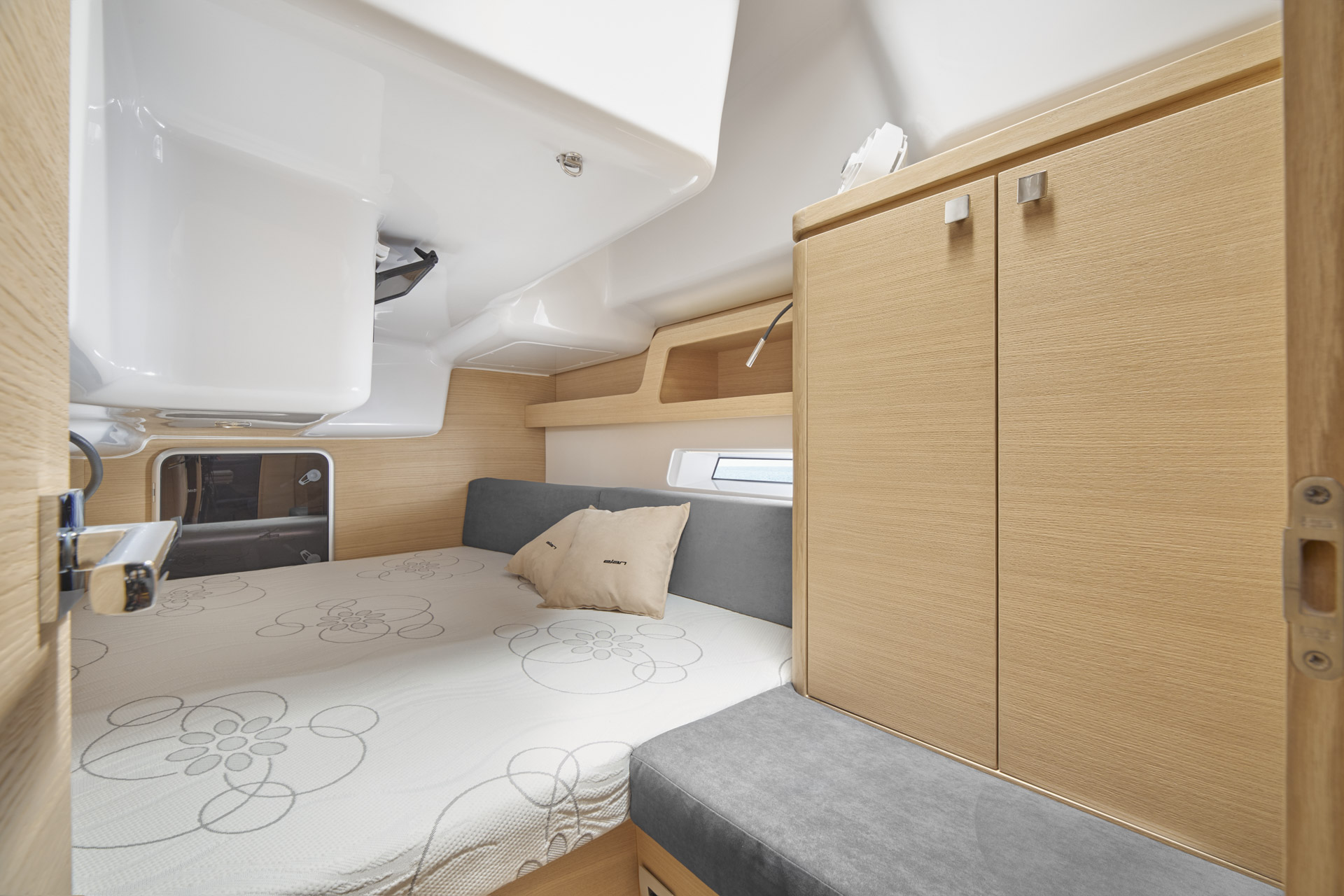

In crafting the Explorer, flexibility is key. Owners can choose between a two-cabin or a three-cabin layout to suit their specific needs and preferences. Opting for the two-cabin configuration repurposes the third cabin into a versatile utility hold. This thoughtful design decision creates dedicated spaces for wet and dry storage, accessible from the cockpit and the interior, or even the inclusion of a washing machine, adding another layer of practicality to this luxurious vessel.

GET IN TOUCH
GET IN TOUCH

Technical Specification

Length Overall 15.14 m | 49’8’’
Hull length 14.325 m | 47’
Length at waterline 13.495 m | 44’3’’
Beam 4.49 m | 14’9’’
Draft (standard) 2.45 m | 8’04’’ (not mounted)
Draft (option) 1.99 m | 6’6’’ (not mounted)
Light displacement 13.340kg | 29.409 lbs
Ballast 3.900 kg | 8.600 lbs
Water capacity 300 liters | 79.2 US gal
Fuel capacity 500 liters | 132 US gal
Engine (standard)

Yanmar 4JH57

41.9 kW / 57 mhp

Engine (option)

Yanmar 4JH80

58.8 kW / 80 mhp

Engine Oceanvolt (electric option)

15 kW twin Oceanvolt electric

Air draft 21.9 m | 71’10’’
Mainsail 62.6 m²  | 673 ft²
Jib 51.14 m² | 528 ft²

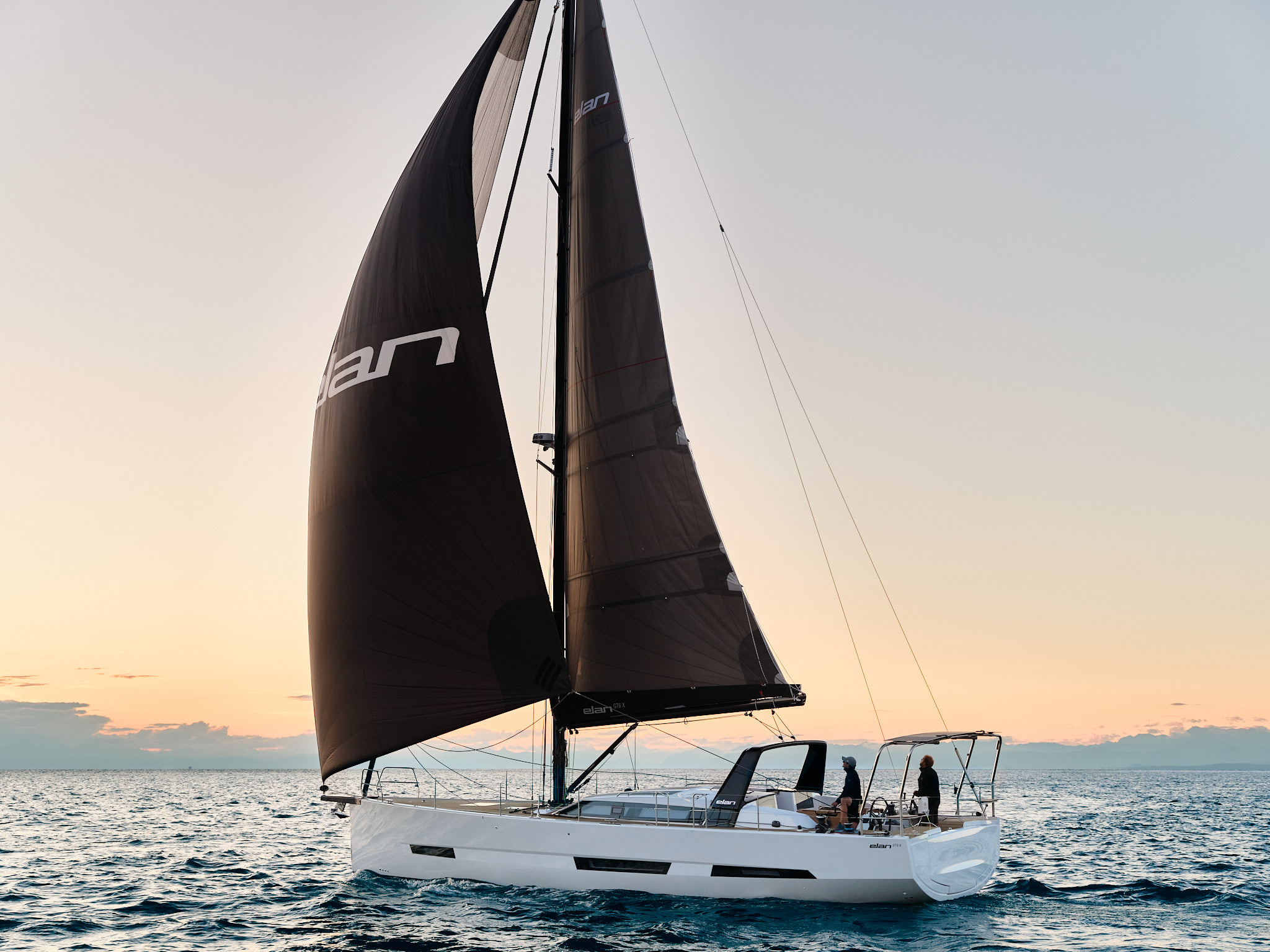

Asymetric (option) 153 m² | 1646 ft²
I 18.09 m | 58’8’
J 5.5 m | 16’10’’
P 17.15 m | 59’3’’
E 6.15 m | 20’2’’

EXTERIOR AND INTERIOR

DESIGN

Studio F. A. Porsche
NAVAL ARCHITECT Humphreys Yachts Design
GET IN TOUCH

Equipment Highlights

Equipment

Elan Yachts Full Teak Deck Icon
FULL TEAK DECK
bow-thruster
BOW THRUSTER
Large bathing platform for family cruising or charter yachts on elan yachts
LARGE BATHING PLATFORM
COCKPIT BOXES
IN-MAST FURLING MAIN
SPLIT TWIN COCKPIT TABLE
FIXED CARBON BOWSPRIT
FIXED CARBON BOWSPRIT
Ambient lights
Ambient lights
Yacht Hull symbol with anchor windlass
Anchor Windlass

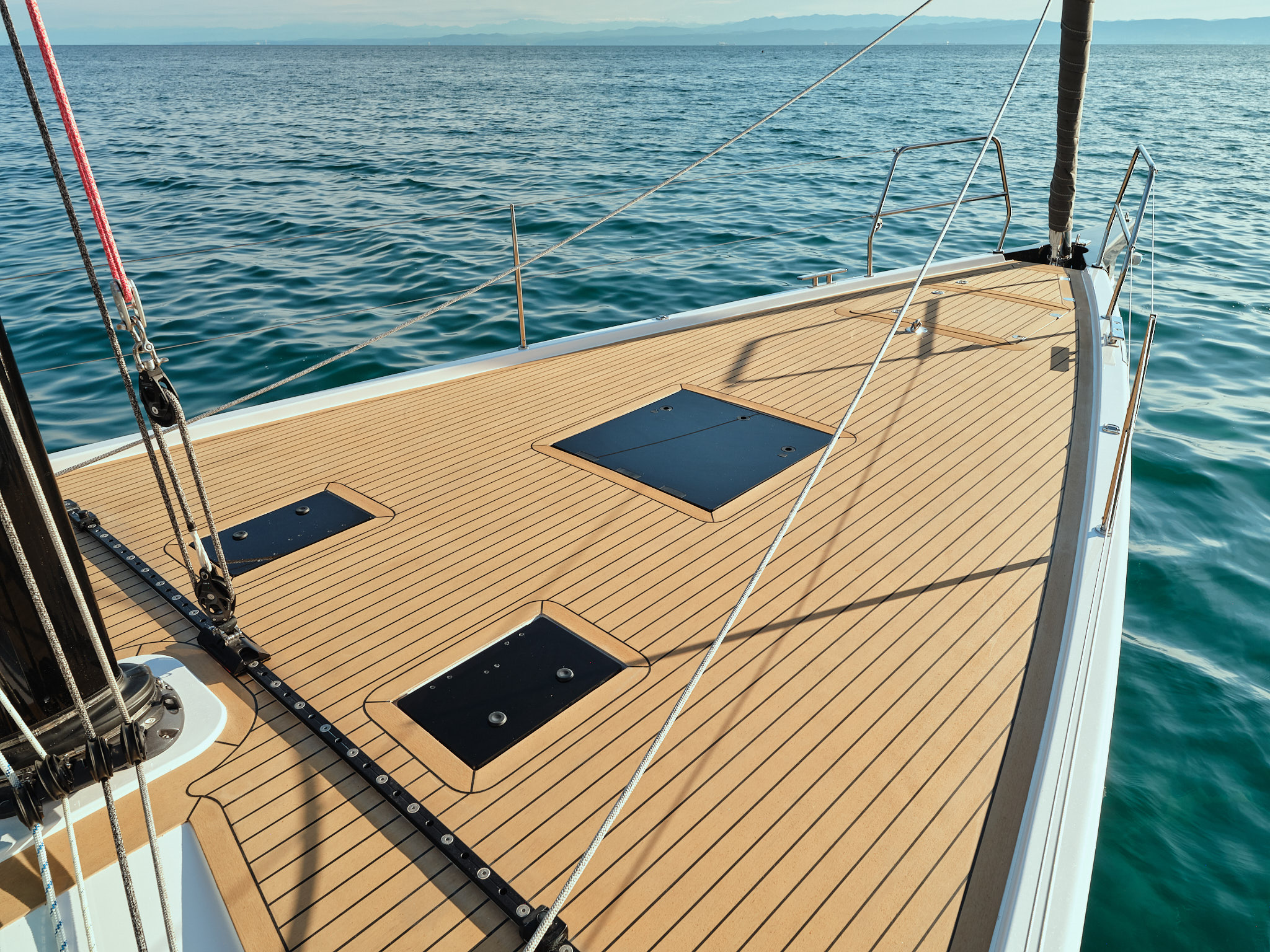

  • Full Synthetic Teak in Standard

    Elan Yachts Full Teak Deck Icon

    There is nothing that feels as luxurious as a full teak deck; that is why the GT6 comes equipped with a full synthetic teak deck in the standard configuration. Choose from a myriad of colour choices and create your dream deck look, or upgrade to real teak for that classic feel.

  • Bow Thruster

    bow-thruster

    The addition of a bow thruster makes the life of any skipper easier and the wallet of the investor less burdened in the long run. Enjoy the benefits of easy manoeuvrability in any marina and avoid collisions.

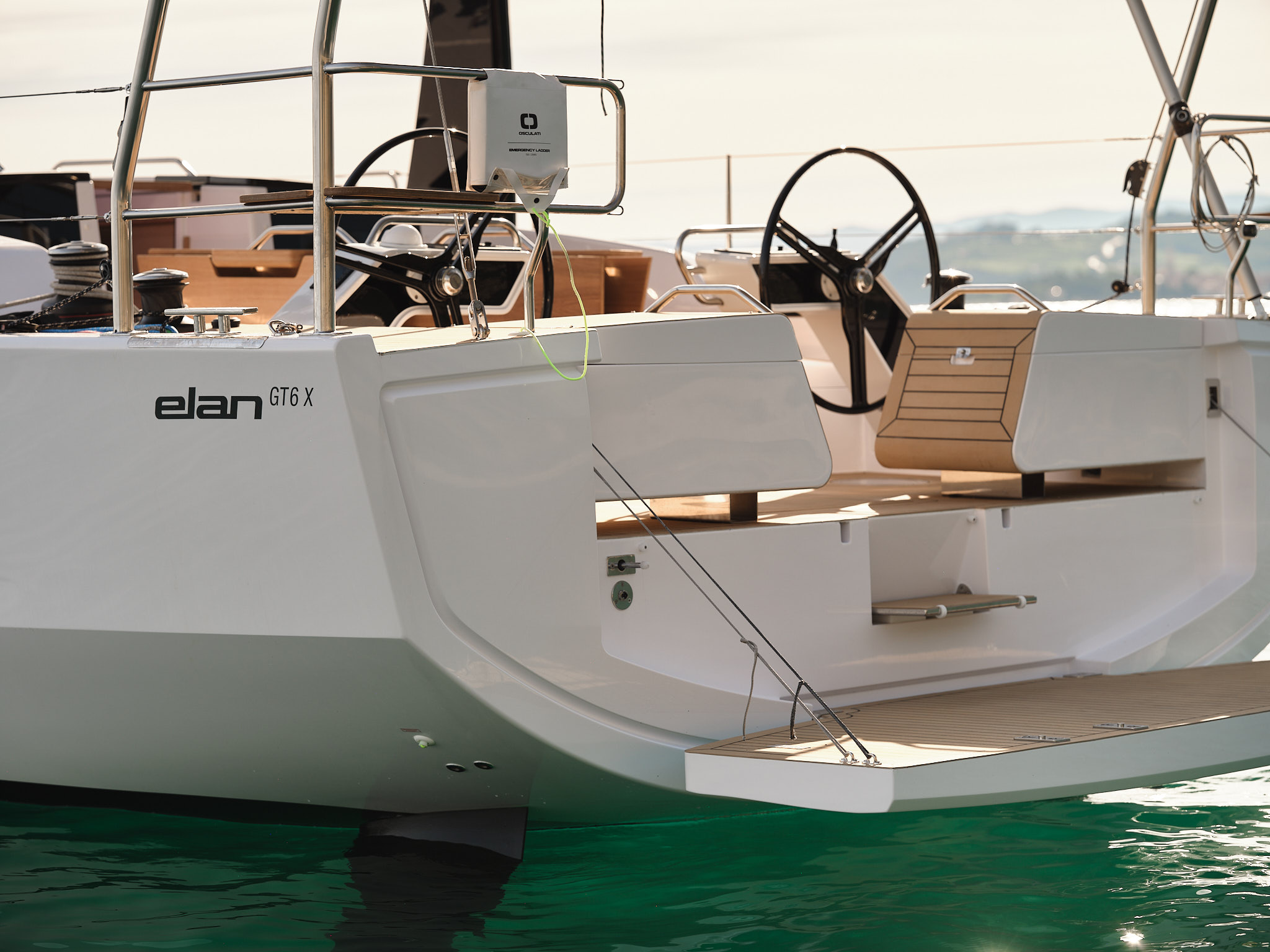

  • Large Bathing Platform

    Large bathing platform for family cruising or charter yachts on elan yachts

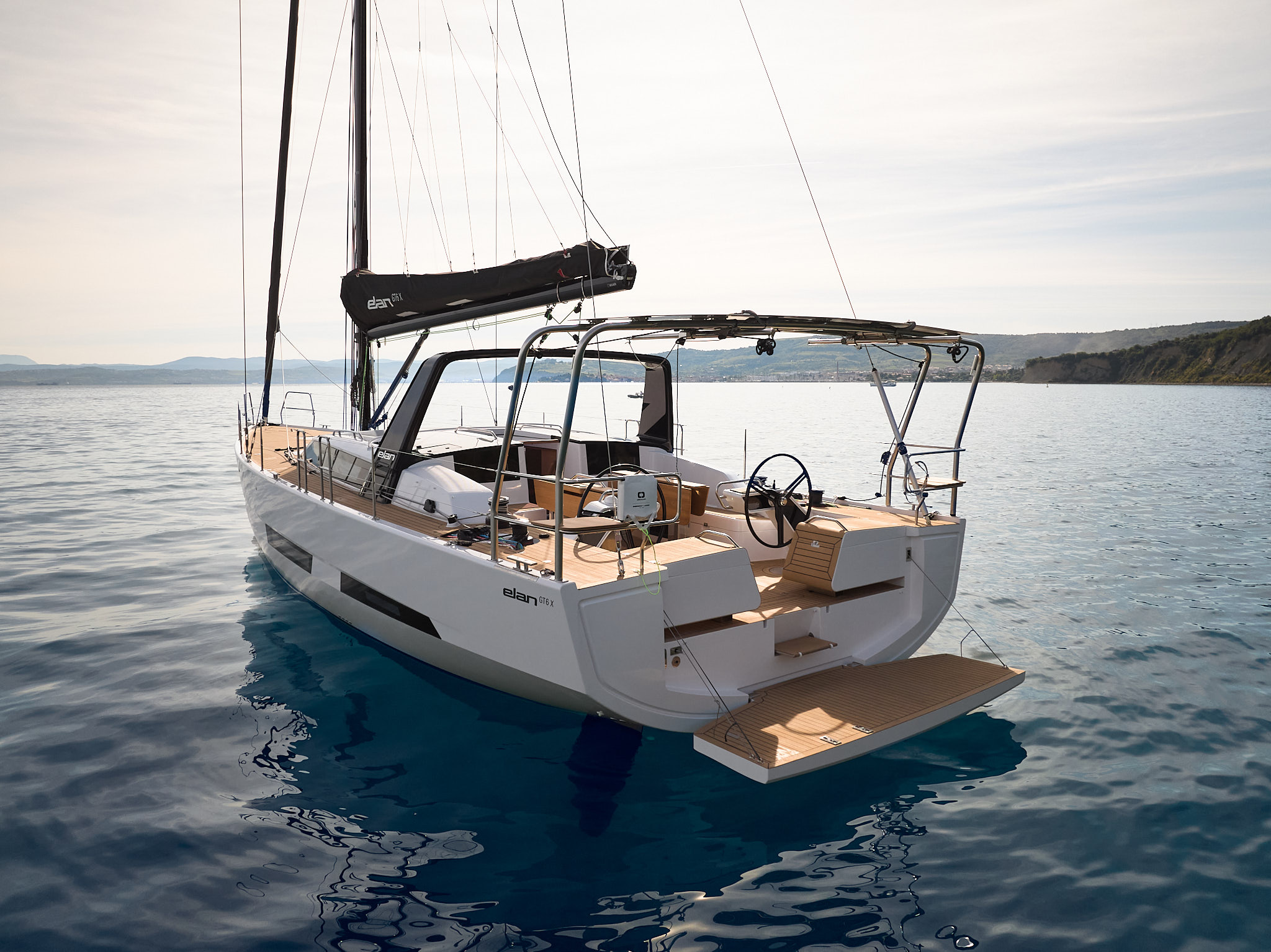

    Choose the large bathing platform and extend the outside living area substantially. Increase the safety for children and pets by closing up the transom. Sunbathe, fish, shower and enjoy life at sea, just above the water surface!

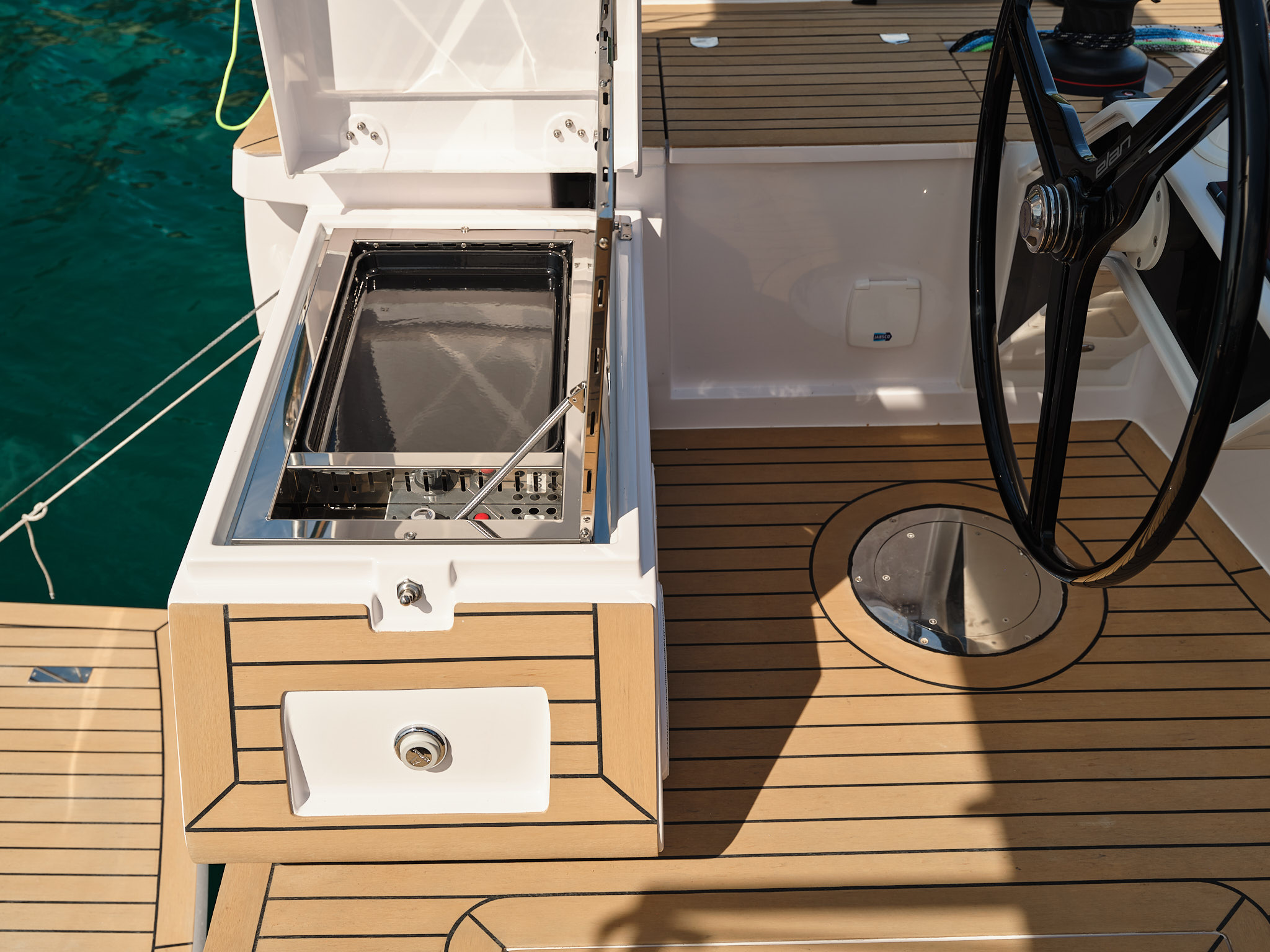

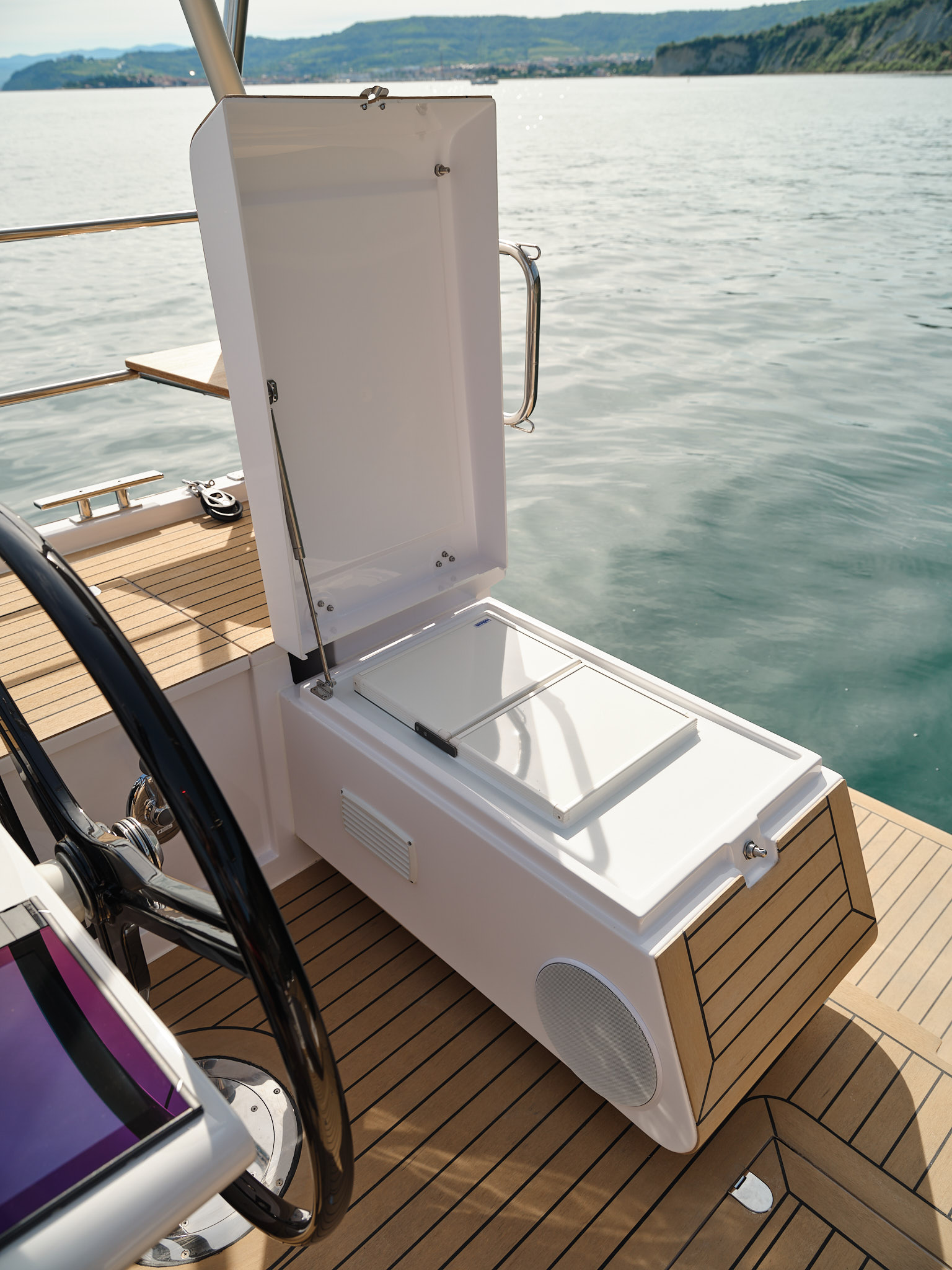

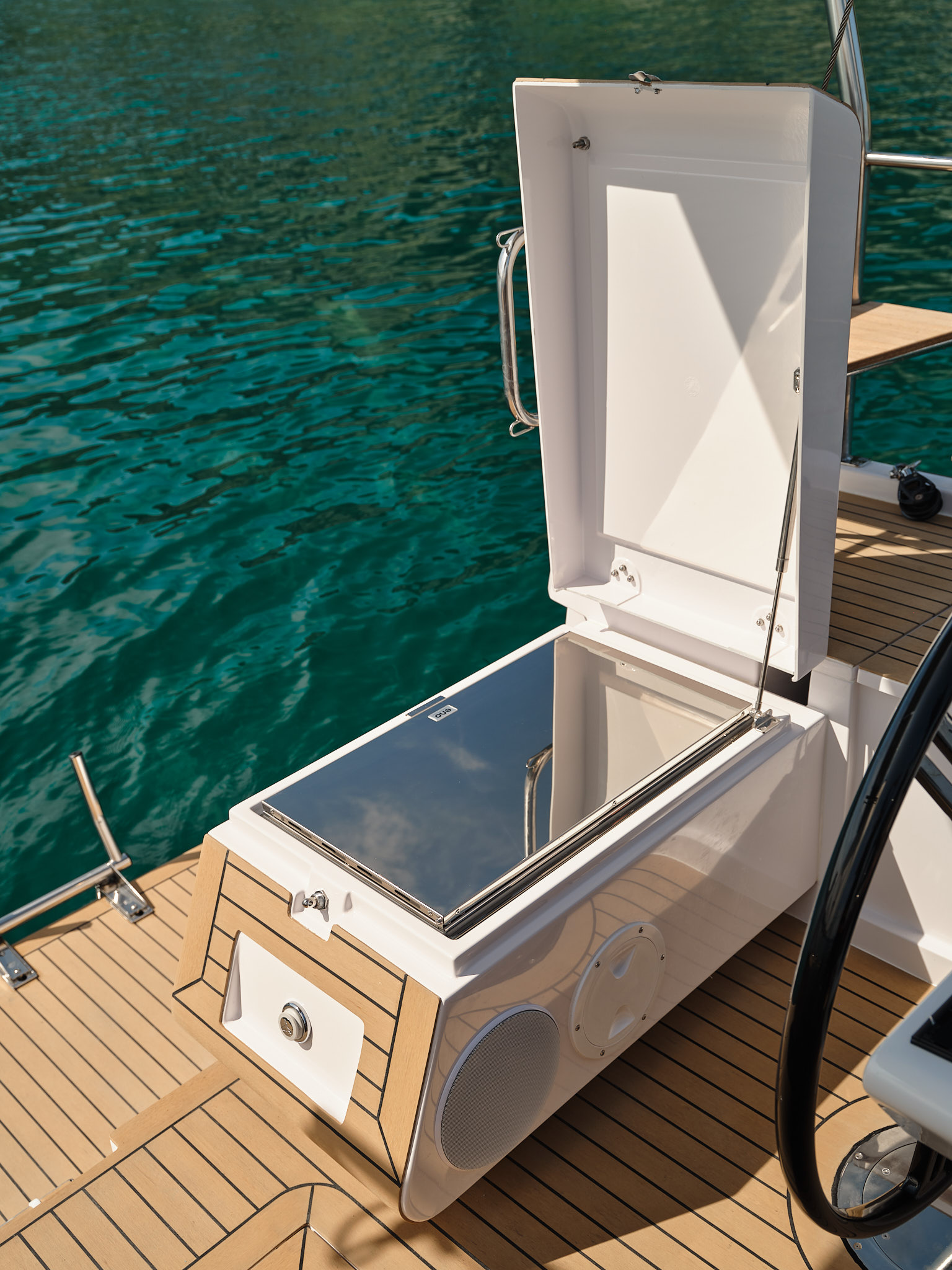

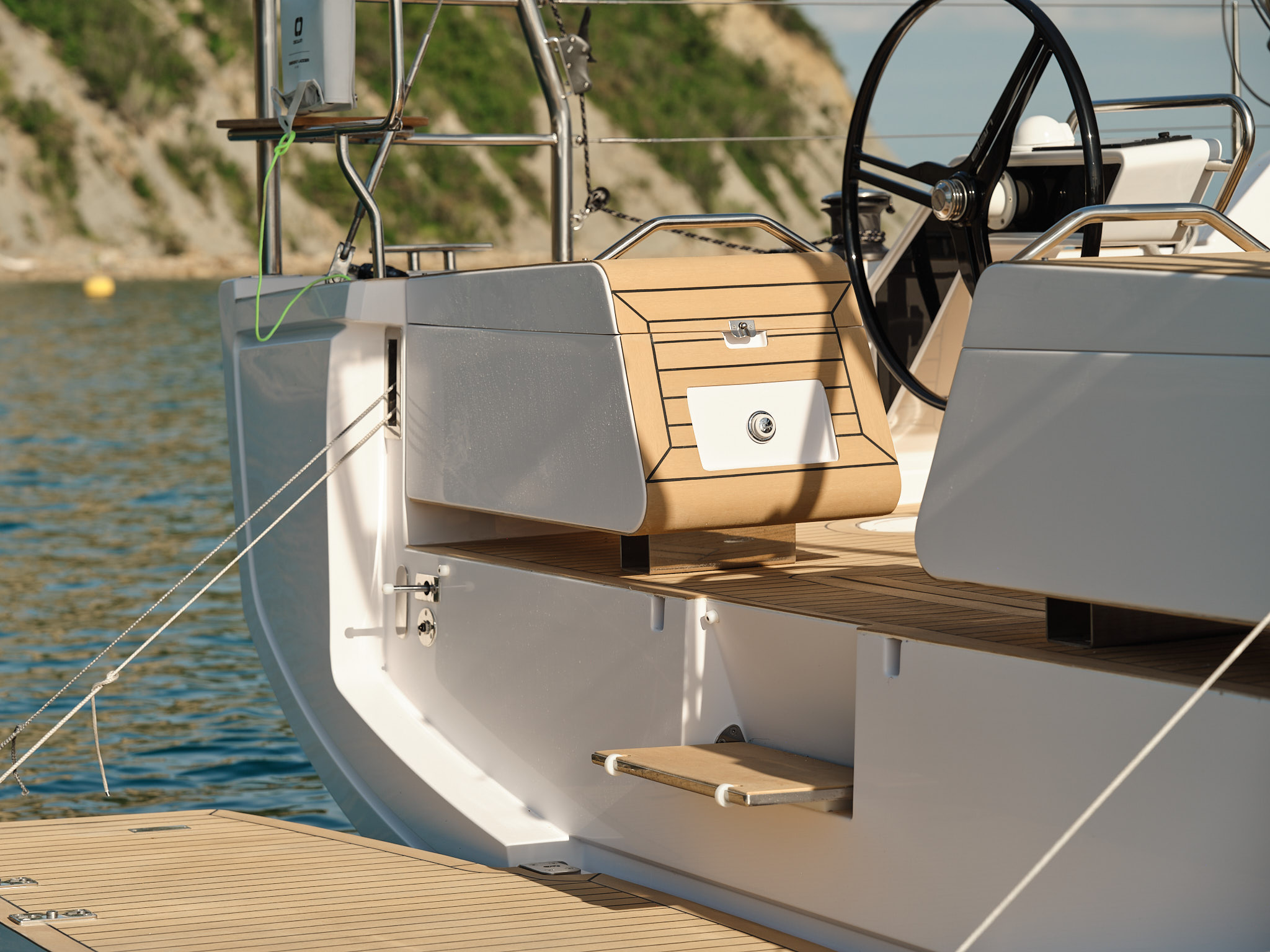

  • Cockpit Boxes

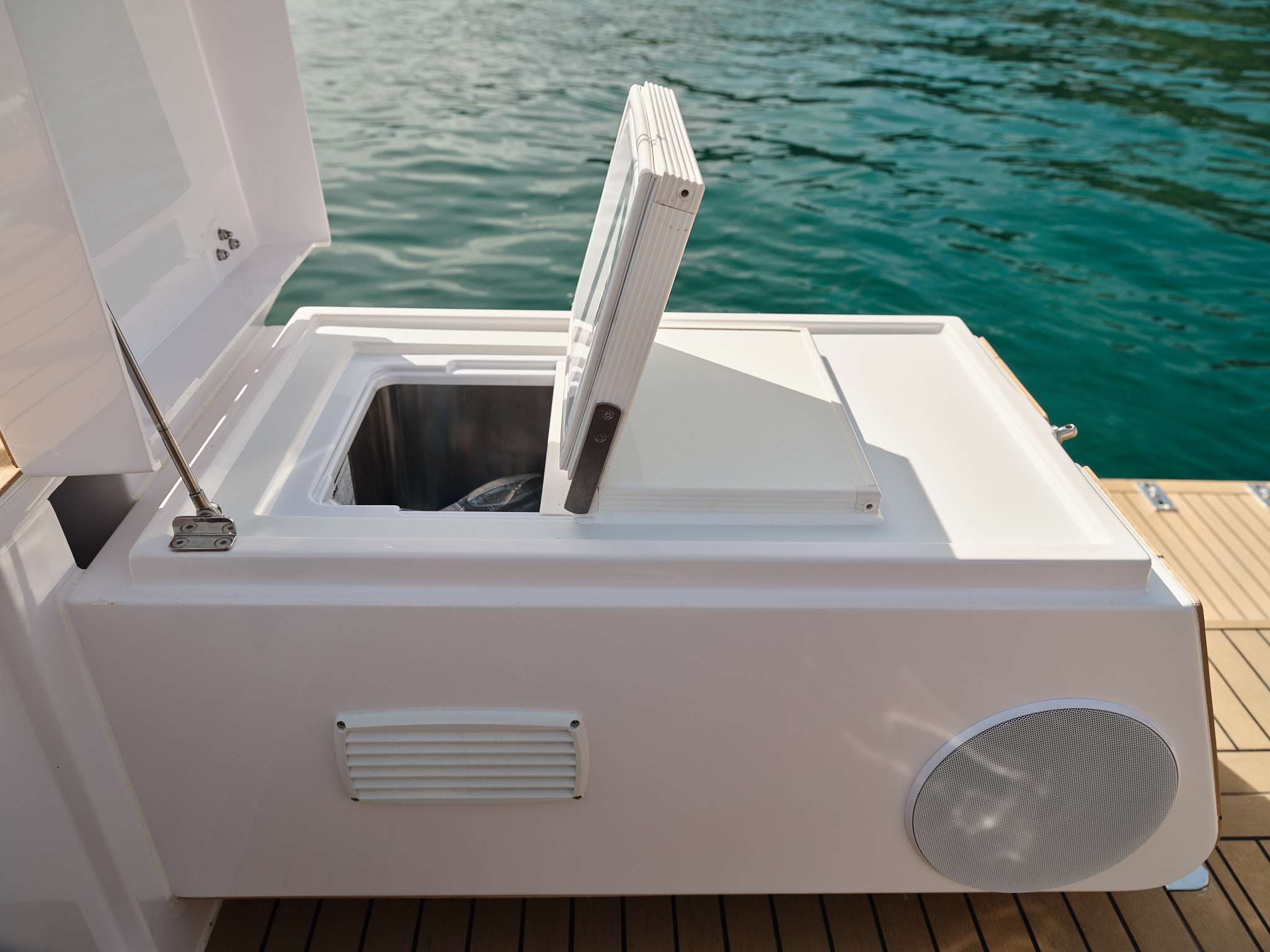

    An incredibly popular and innovative feature, the cockpit boxes provide additional storage and seating space. They can be upgraded to hold a cockpit grill and a refrigerator for ultimate enjoyment aboard!

  • In-Mast Furling Main Sail

    Upgrade your mainsail with in-mast furling. Enjoy the ease of sailing, easy reefing and managing the main with a smaller crew or single-handed. Open the sail with ease.

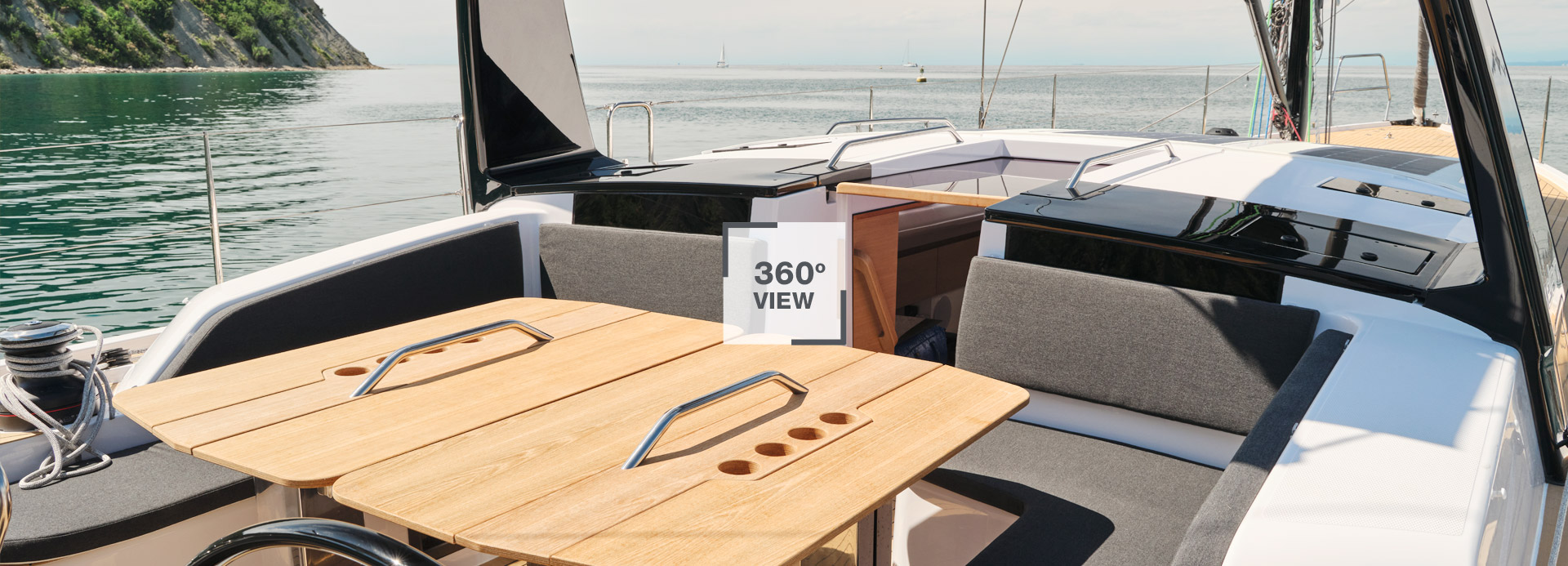

  • Split-Twin Cockpit Table

    The split cockpit table enables easy movement in the cockpit, around the table and from the cockpit to the interior. The table can be configured in numerous ways; the open side wings and closed mid-section provide small tables on each side for people to enjoy drinks and snacks, while still enabling easy movement into the yacht’s interior. The full open table offers enough space for lavish meals. The sunbed configuration offers a place to set down drinks, as well as widens the side-bench and converts it into a full-on sunbed.

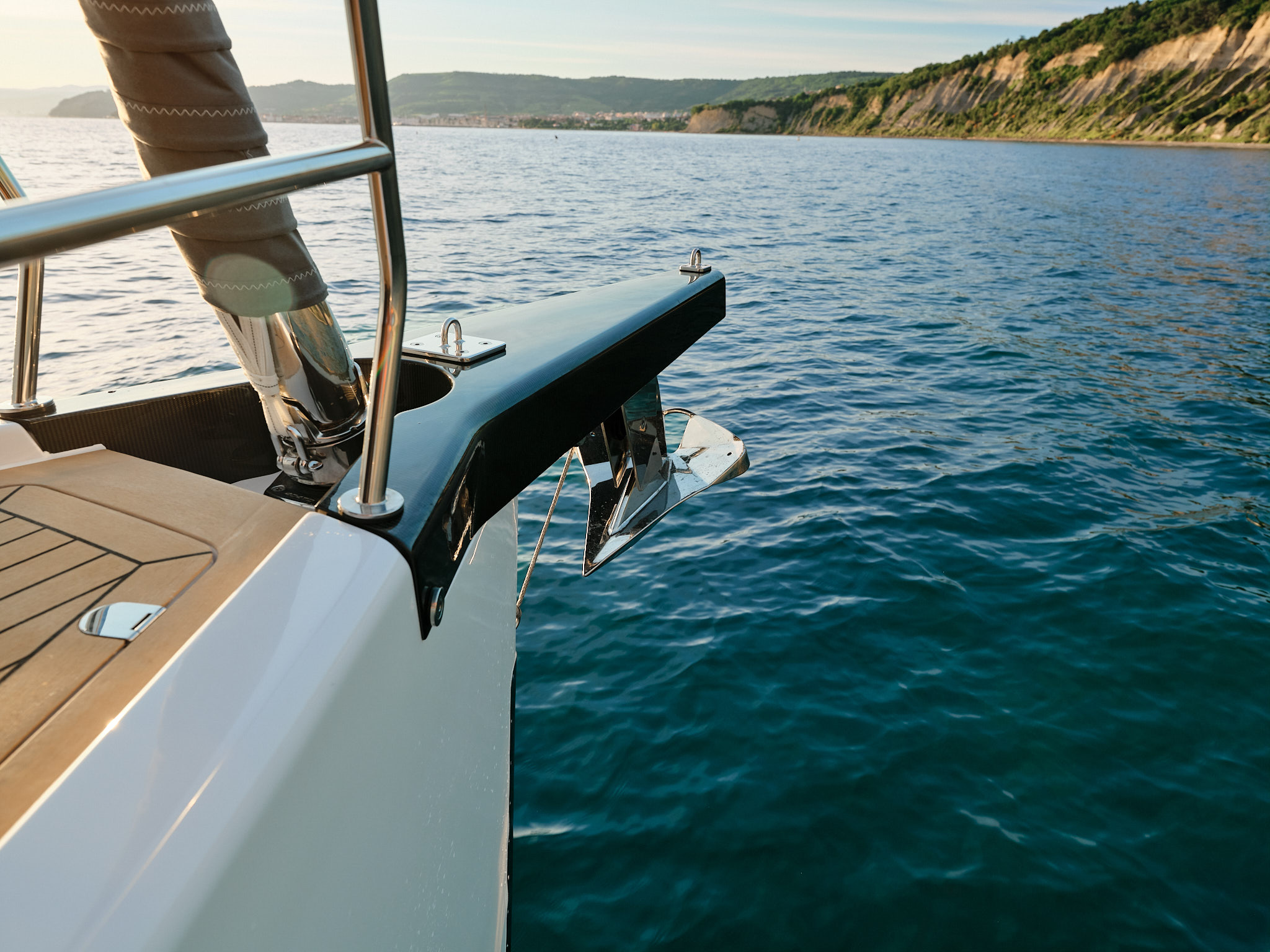

  • Fixed Carbon Bowsprit

    FIXED CARBON BOWSPRIT

    Installed in the standard configuration, the longer carbon bowsprit enables one to sail deeper downwind and makes sure the asymmetric gennaker or code 0 is less blanketed by the mainsail and more of the sail area is used.

  • Ambient lights

    Ambient lights

    Illuminate your yacht with beautiful ambient lighting including dimming options.

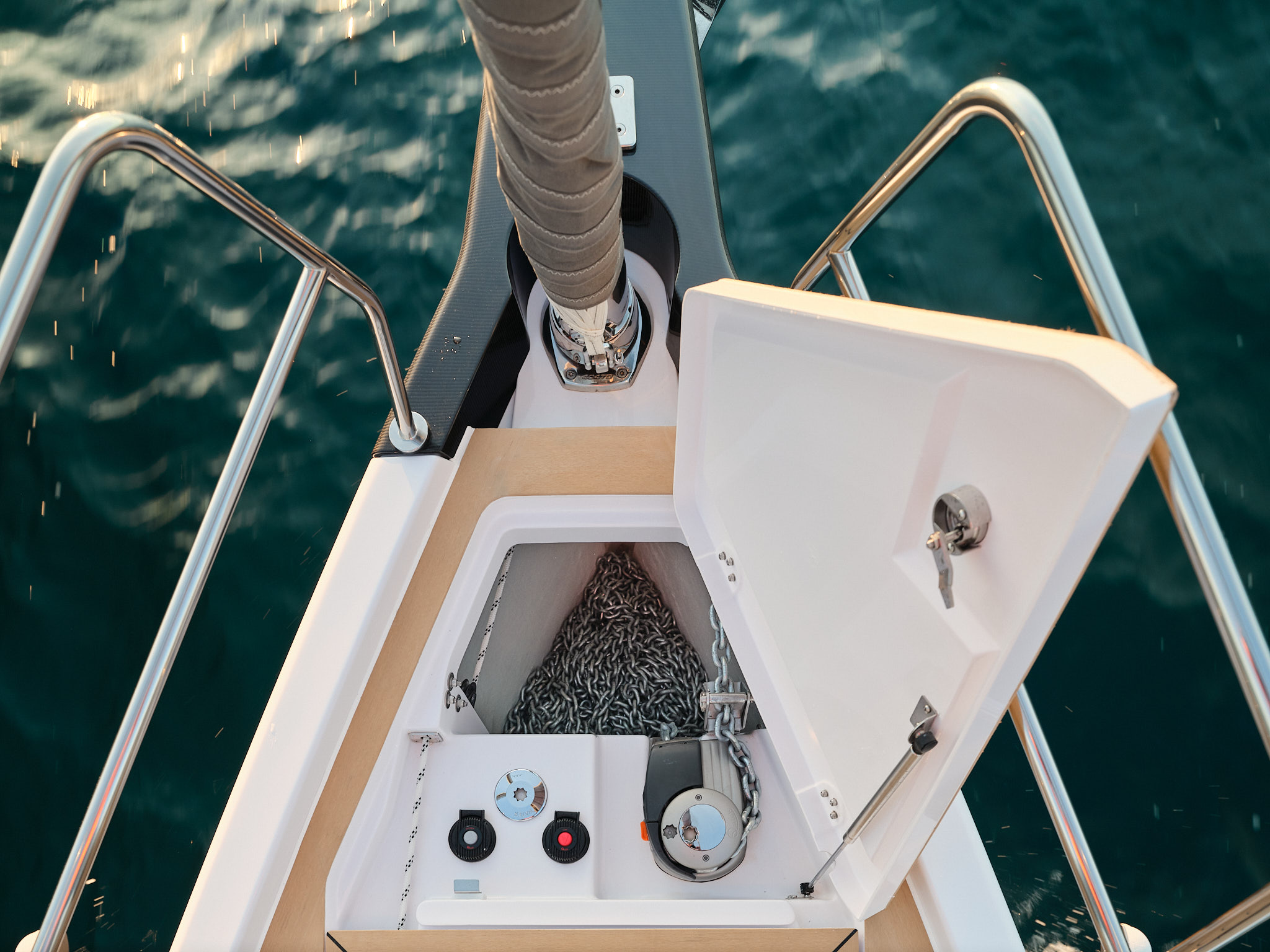

  • ANCHOR WINDLASS

    Yacht Hull symbol with anchor windlass

    Deploy your anchor with a simple and convenient push of a button. Manage it at the anchor locker or with a remote, a feature created for single-handed sailors. Be confident at your anchorage with a chaincounter.

  • Twin wheels

    Due to the wider and flatter hull design, twin rudders are more efficient than a single rudder, providing exceptional control and reducing the tendency to broach. The yacht does not stall easily, her pitching moment is reduced, and the directional control is superb!

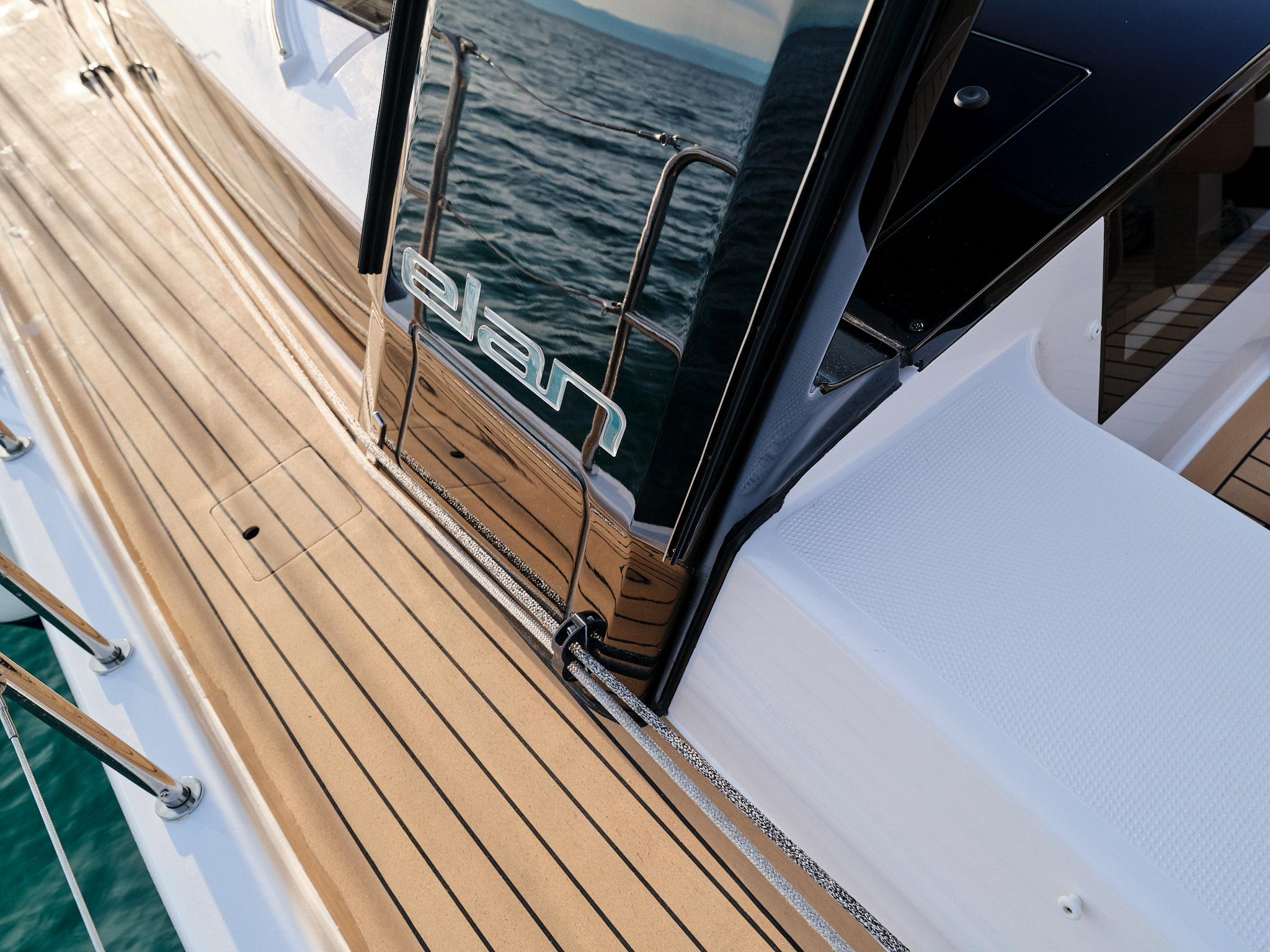

Full Synthetic Teak in Standard

There is nothing that feels as luxurious as a full teak deck; that is why the GT6 comes equipped with a full synthetic teak deck in the standard configuration. Choose from a myriad of colour choices and create your dream deck look, or upgrade to real teak for that classic feel.

Elan Yachts Full Teak Deck Icon

Bow Thruster

The addition of a bow thruster makes the life of any skipper easier and the wallet of the investor less burdened in the long run. Enjoy the benefits of easy manoeuvrability in any marina and avoid collisions.

bow-thruster

Large Bathing Platform

Choose the large bathing platform and extend the outside living area substantially. Increase the safety for children and pets by closing up the transom. Sunbathe, fish, shower and enjoy life at sea, just above the water surface!

Large bathing platform for family cruising or charter yachts on elan yachts

Cockpit Boxes

An incredibly popular and innovative feature, the cockpit boxes provide additional storage and seating space. They can be upgraded to hold a cockpit grill and a refrigerator for ultimate enjoyment aboard!

In-Mast Furling Main Sail

Upgrade your mainsail with in-mast furling. Enjoy the ease of sailing, easy reefing and managing the main with a smaller crew or single-handed. Open the sail with ease.



Split-Twin Cockpit Table

The split cockpit table enables easy movement in the cockpit, around the table and from the cockpit to the interior. The table can be configured in numerous ways; the open side wings and closed mid-section provide small tables on each side for people to enjoy drinks and snacks, while still enabling easy movement into the yacht’s interior. The full open table offers enough space for lavish meals. The sunbed configuration offers a place to set down drinks, as well as widens the side-bench and converts it into a full-on sunbed.

Fixed Carbon Bowsprit

Installed in the standard configuration, the longer carbon bowsprit enables one to sail deeper downwind and makes sure the asymmetric gennaker or code 0 is less blanketed by the mainsail and more of the sail area is used.

FIXED CARBON BOWSPRIT

Ambient lights

Illuminate your yacht with beautiful ambient lighting including dimming options.

Ambient lights

ANCHOR WINDLASS

Deploy your anchor with a simple and convenient push of a button. Manage it at the anchor locker or with a remote, a feature created for single-handed sailors. Be confident at your anchorage with a chaincounter.

Yacht Hull symbol with anchor windlass

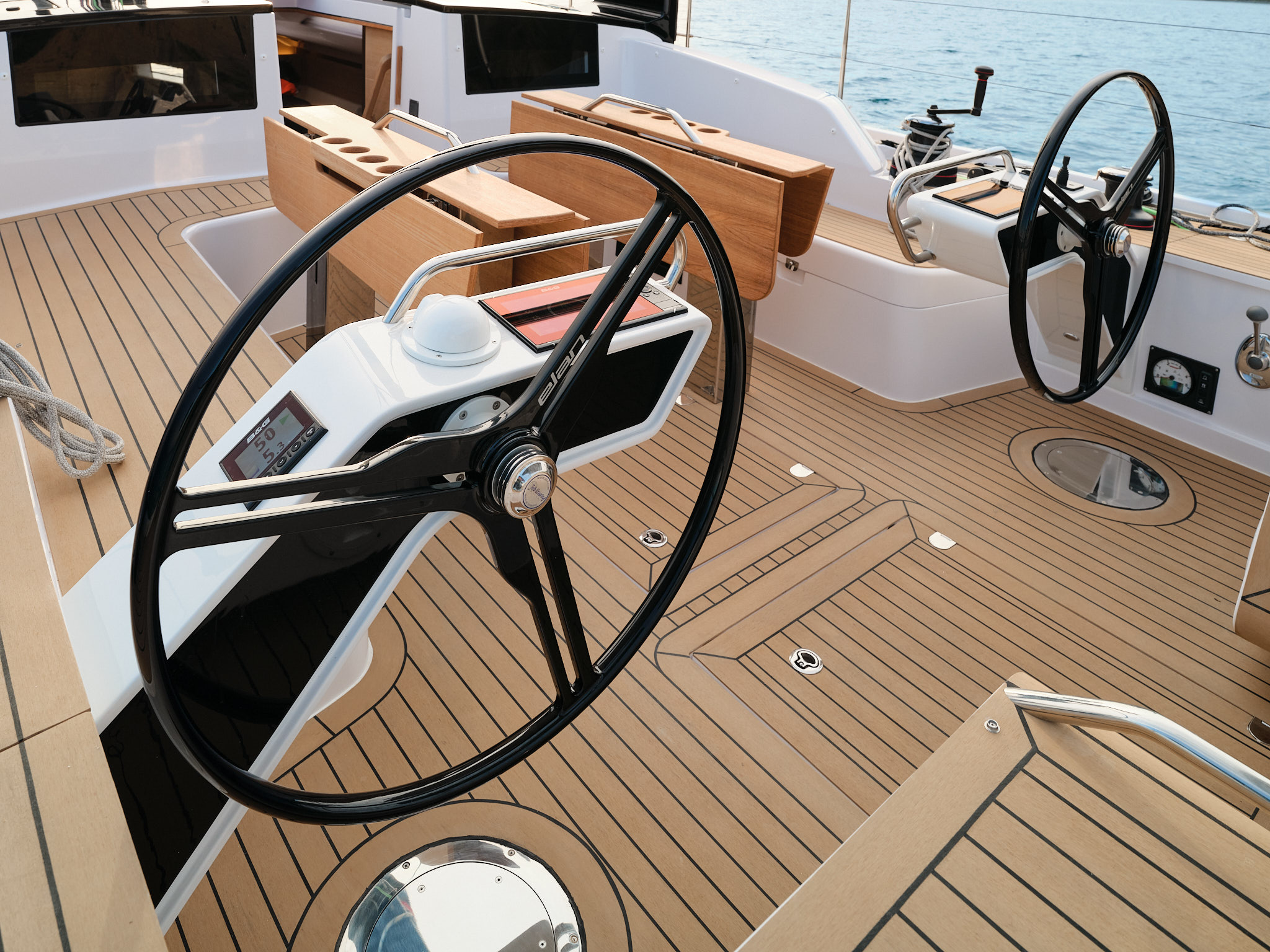

Twin wheels

Due to the wider and flatter hull design, twin rudders are more efficient than a single rudder, providing exceptional control and reducing the tendency to broach. The yacht does not stall easily, her pitching moment is reduced, and the directional control is superb!

GET IN TOUCH

Yacht Layout

Standard

2 cabins, 2 heads
elan-gt6-explorer-standard-layout

Option

3 cabins, 2 heads
Elan GT6 Explorer Optional Layout
  • Standard

    2 cabins, 2 heads
    elan-gt6-explorer-standard-layout
  • Option

    3 cabins, 2 heads
    Elan GT6 Explorer Optional Layout
