T SHAPED KEEL
  • PERFORMANCE

    two letters of P, indicating pure performance pack by Elan Yachts

    Lightness, sports equipment and a myriad of trimming options, these yachts are designed not only to be enjoyed by a cruising family, but also to be sailed fast by an ambitious crew. Join a regatta or two and be among the first around the buoy.

  • PLANING POTENTIAL

    PLANING POTENTIAL

    This yacht can be configured to a low displacement configuration, which allows the yacht to achieve it's full planing potential, designed into the hull and sailplan by Humphreys Yacht Design. Fly the kite, rise form the water and plane!

  • COMPOSITE BULKHEADS

    Composite Bulkheads

    Composite version ensure an unbroken surface along the bulkhead and an equal distribution of mechanical loads along the cross section. The vacuum-cured epoxy resin impregnated biaxial fabric take the stiffness and durability to the next level and ensure the highest compact structure.

  • TWIN RUDDERS

    Schematic icon showing twin rudders for elan yachts

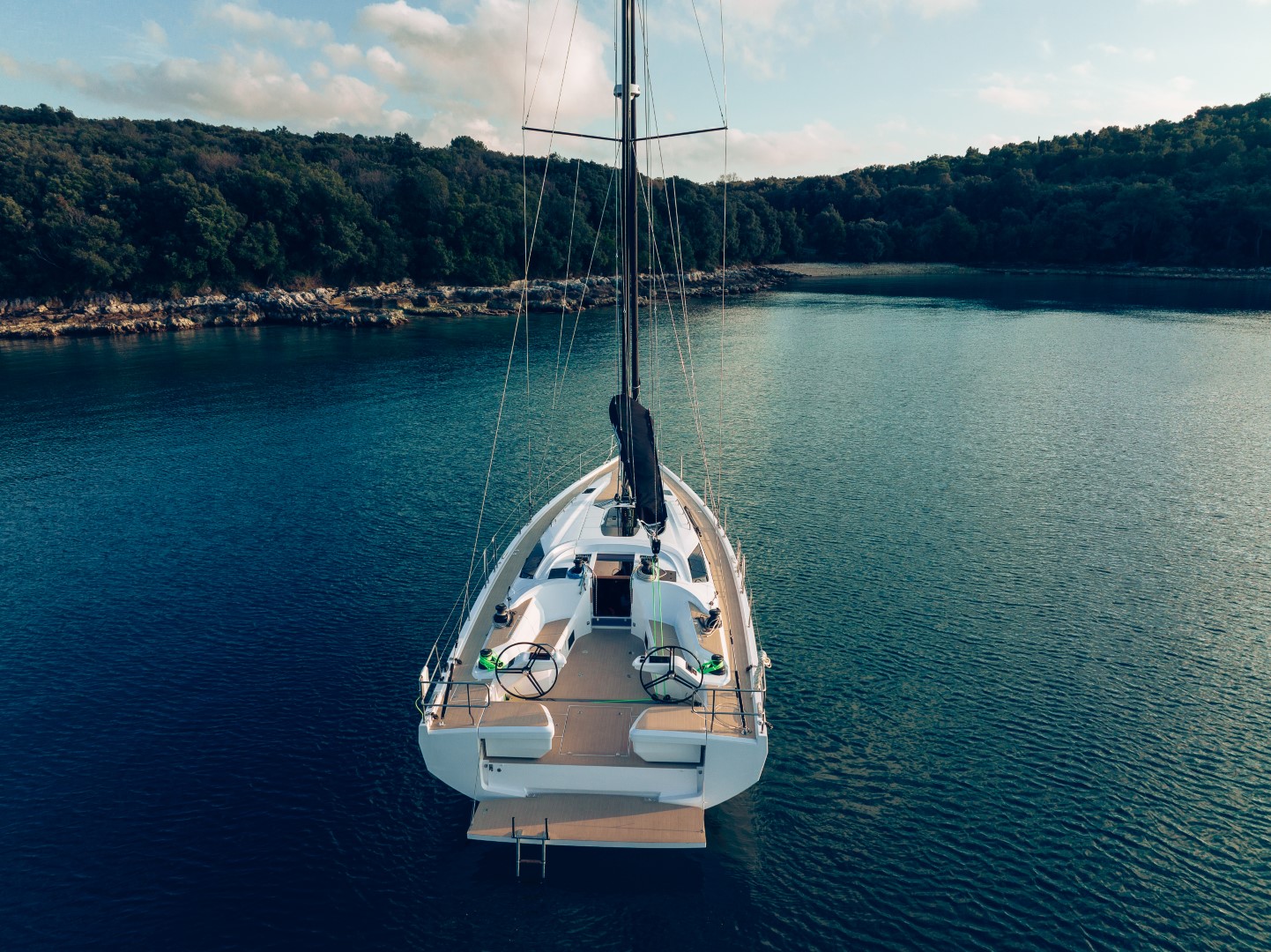

    Twin rudders provide exceptional control and reduce the tendency to broach. The yacht does not stall easily, as her pitching moment is reduced. The twin rudder system provides finger-tip directional control, especially when heeled.

  • TWIN HELM

    Schematic view of twin helms Elan Yachts have

    Elan yachts were one of the first production yachts that incorporated a twin helm system, borrowing the concept from the offshore racing world. Now a staple in yacht design, the Jefa steering twin wheel approach enables easy maneuvering from both sides of the yacht while not impeding movement in the cockpit. Twin helms also introduce a new level of redundancy on your blue water cruises, especially when paired with twin rudders.

  • VAIL HULL

    Vacuum Assisted Infusion Lamination icon for Elan Yacht HULLS

    As the only sure way to prevent osmosis, and ensure uniform stiffness, lightness and safety, Elan was one of the first serial yacht manufacturers to adopt the Vacuum Assisted Infusion Lamination back in 2003. VAIL enables a complete saturation of epoxy resin and removes human error from the process.

  • 3D VAIL

    Elan Yachts 3D VAIL Technology

    In essence, the 3D VAIL technology integrates the inner yacht structure, stringers and stringer supports into the hull itself using vacuum assisted infusion. When fully applied, this complicated and expensive process creates a one-piece laminated structure out of all load-bearing elements of the yacht, increasing the stiffness and lightness and ensures best mechanical properties.

  • T-SHAPED KEEL

    The T-shaped keel lowers the centre of gravity and enables enhanced sail-carrying power, increasing speed and stability of the yacht.

PERFORMANCE

Lightness, sports equipment and a myriad of trimming options, these yachts are designed not only to be enjoyed by a cruising family, but also to be sailed fast by an ambitious crew. Join a regatta or two and be among the first around the buoy.

two letters of P, indicating pure performance pack by Elan Yachts

PLANING POTENTIAL

This yacht can be configured to a low displacement configuration, which allows the yacht to achieve it's full planing potential, designed into the hull and sailplan by Humphreys Yacht Design. Fly the kite, rise form the water and plane!

PLANING POTENTIAL

COMPOSITE BULKHEADS

Composite version ensure an unbroken surface along the bulkhead and an equal distribution of mechanical loads along the cross section. The vacuum-cured epoxy resin impregnated biaxial fabric take the stiffness and durability to the next level and ensure the highest compact structure.

Composite Bulkheads

TWIN RUDDERS

Twin rudders provide exceptional control and reduce the tendency to broach. The yacht does not stall easily, as her pitching moment is reduced. The twin rudder system provides finger-tip directional control, especially when heeled.

Schematic icon showing twin rudders for elan yachts

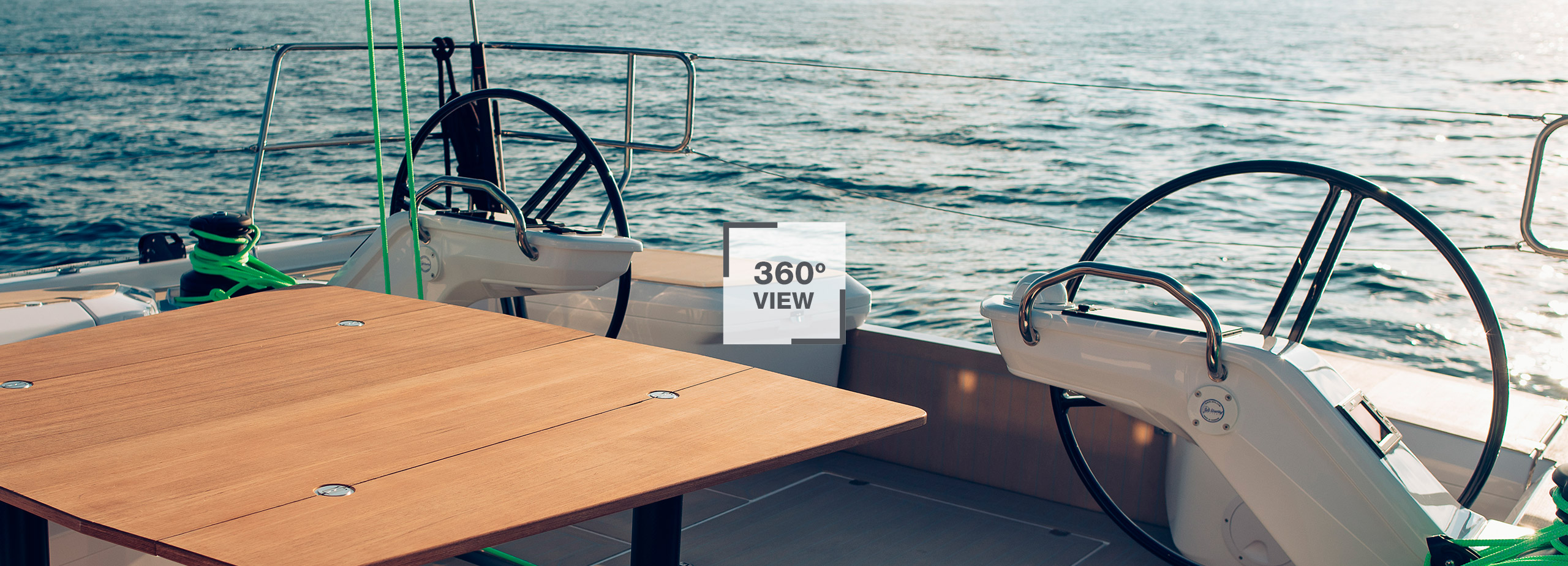

TWIN HELM

Elan yachts were one of the first production yachts that incorporated a twin helm system, borrowing the concept from the offshore racing world. Now a staple in yacht design, the Jefa steering twin wheel approach enables easy maneuvering from both sides of the yacht while not impeding movement in the cockpit. Twin helms also introduce a new level of redundancy on your blue water cruises, especially when paired with twin rudders.

Schematic view of twin helms Elan Yachts have

VAIL HULL

As the only sure way to prevent osmosis, and ensure uniform stiffness, lightness and safety, Elan was one of the first serial yacht manufacturers to adopt the Vacuum Assisted Infusion Lamination back in 2003. VAIL enables a complete saturation of epoxy resin and removes human error from the process.

Vacuum Assisted Infusion Lamination icon for Elan Yacht HULLS

3D VAIL

In essence, the 3D VAIL technology integrates the inner yacht structure, stringers and stringer supports into the hull itself using vacuum assisted infusion. When fully applied, this complicated and expensive process creates a one-piece laminated structure out of all load-bearing elements of the yacht, increasing the stiffness and lightness and ensures best mechanical properties.

Elan Yachts 3D VAIL Technology

T-SHAPED KEEL

The T-shaped keel lowers the centre of gravity and enables enhanced sail-carrying power, increasing speed and stability of the yacht.

Elan E6

Technology and Performance

Compared to other yachts in Elan’s repertoire, the Humphreys Yacht Design team distilled even more performance in this project, while keeping the dual-purpose ethos that has been the hallmark of the E Line range for years.



Powered by Elan’s high-tech composite know-how and pushed to the next level by industry-leading specialist Gurit, Elan’s E6 is built with the highest consumer-level technology on the market.



Lighter than competitors in its class, the E6 is the fusion of performance engineering and enriching sailing experiences. This twin rudder and helm yacht utilizes 3D VAIL technology for ultimate lightness and stiffness, and a dedicated hull with a T-shape keel.

Elan E6

Design and Comfort

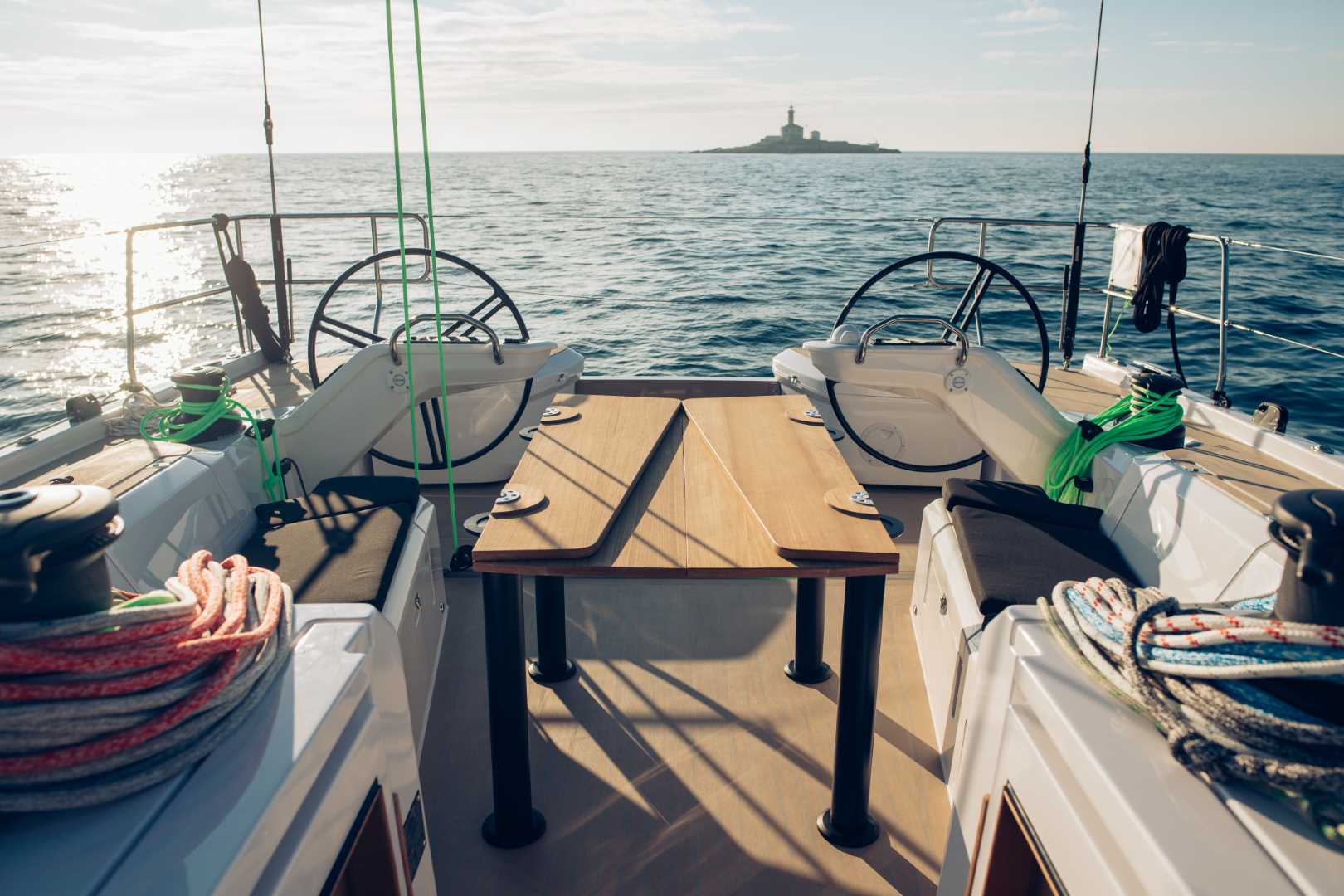

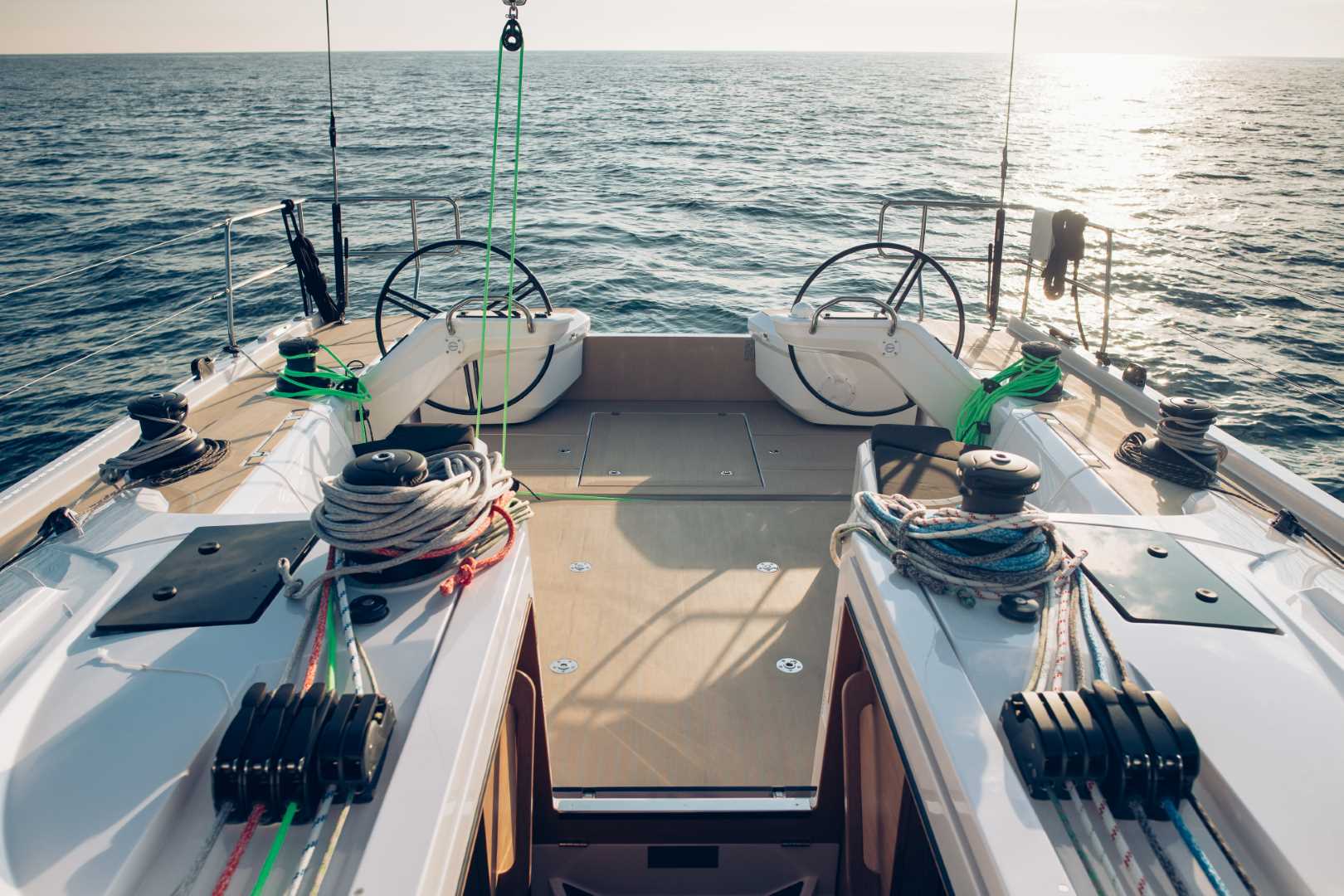

While the yacht has been designed to be easily sailed by an experienced couple, the E6 truly shines with a good crew. Three pairs of Harken winches, ideally positioned for precision trimming and fast unobstructed movements, are the result of 1:1 scale model in-house testing with an Olympic sailing team.



Optional storage boxes with a grill, sink and a refrigerator are available, as well as two sizes of bathing platforms. Along other lockers, mainsheet ropes are fed to dedicated boxes on the cockpit sides.

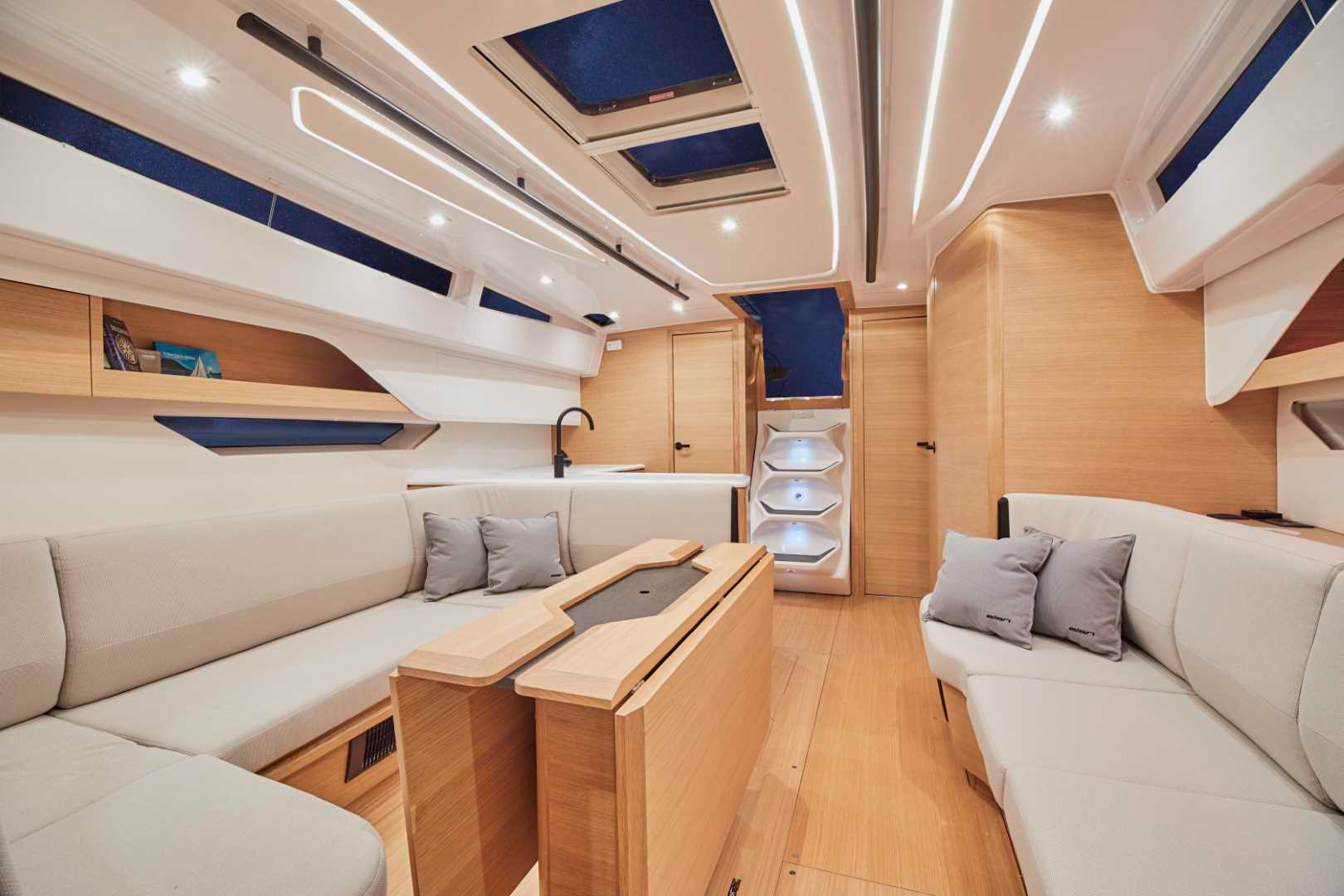

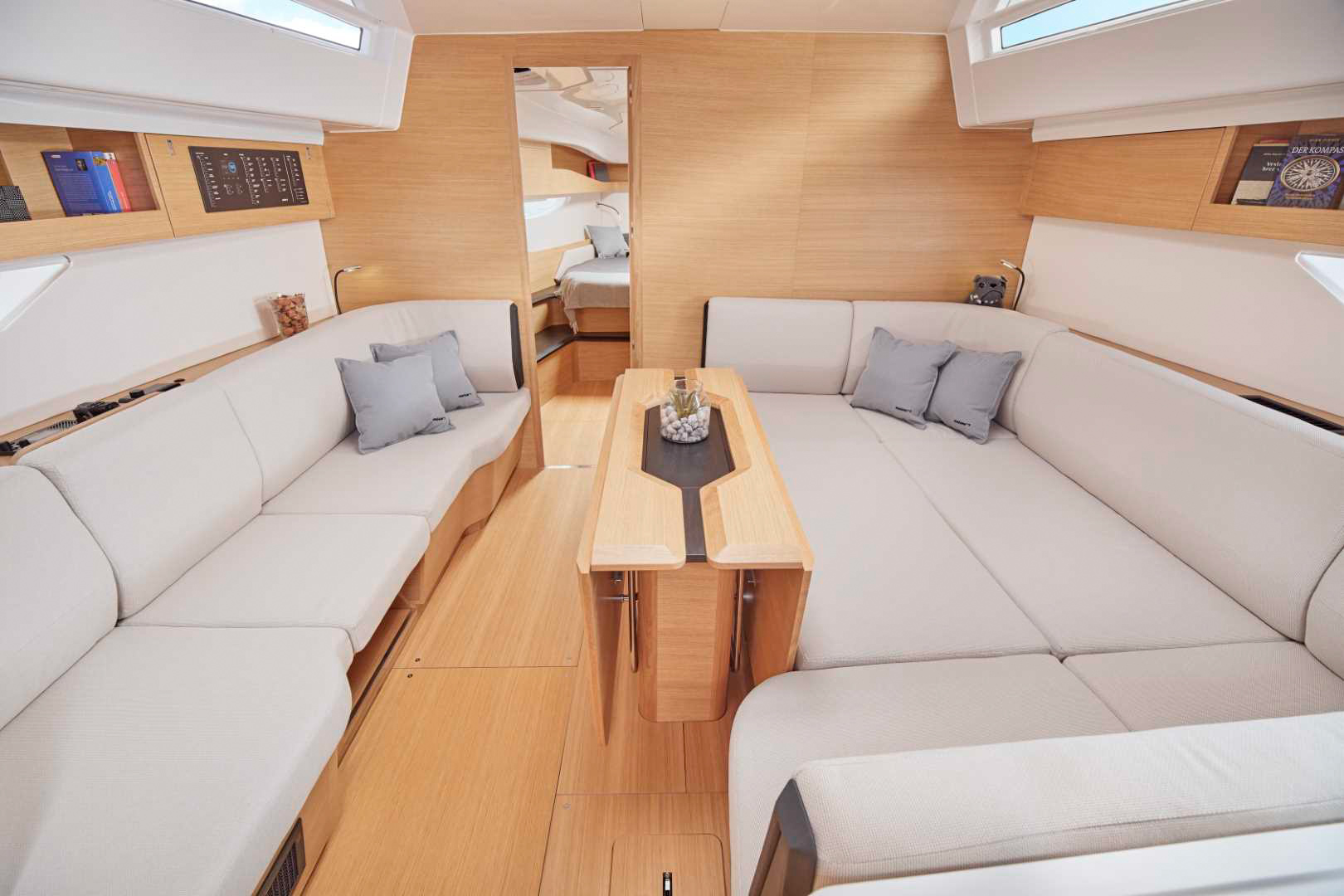

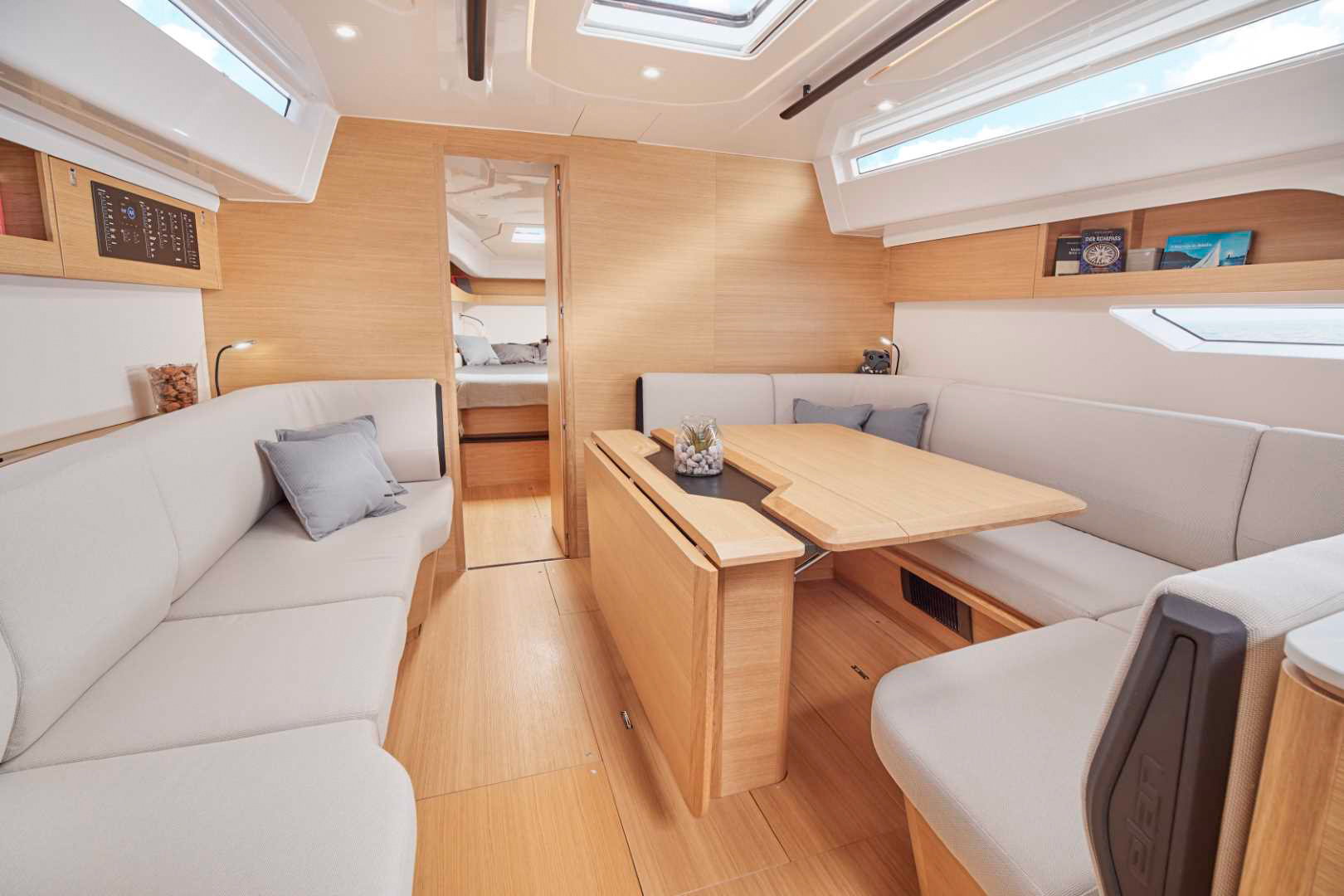

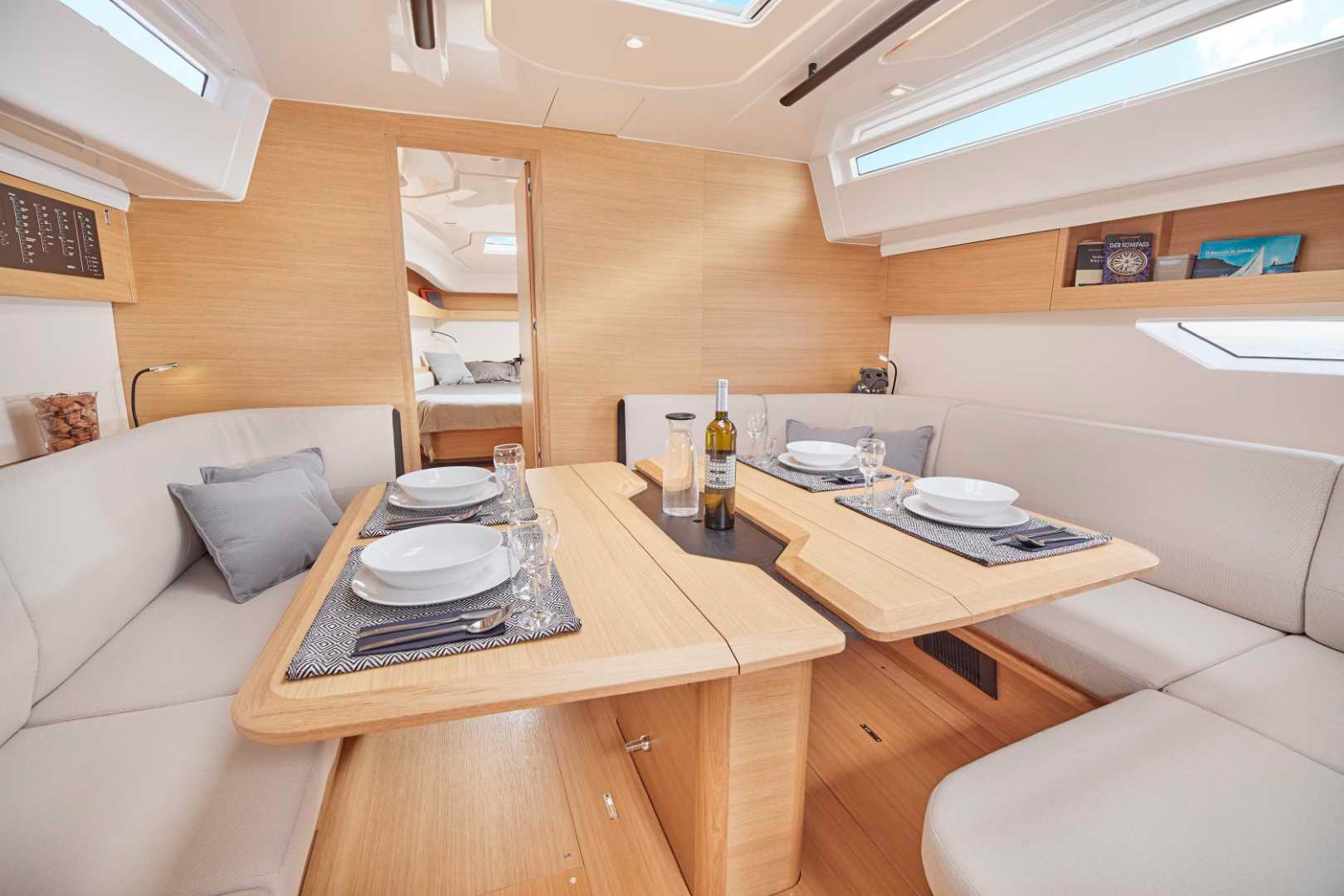

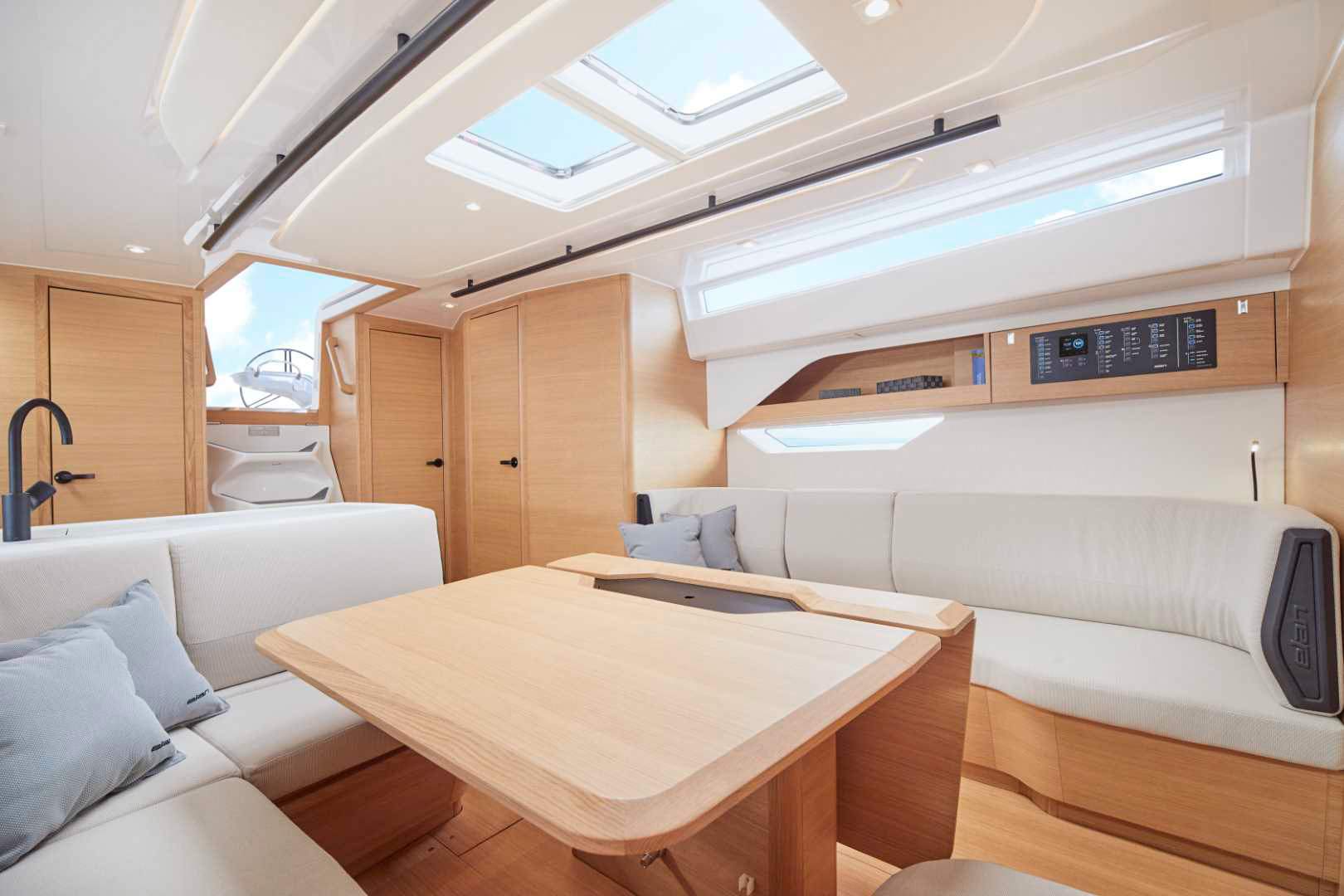

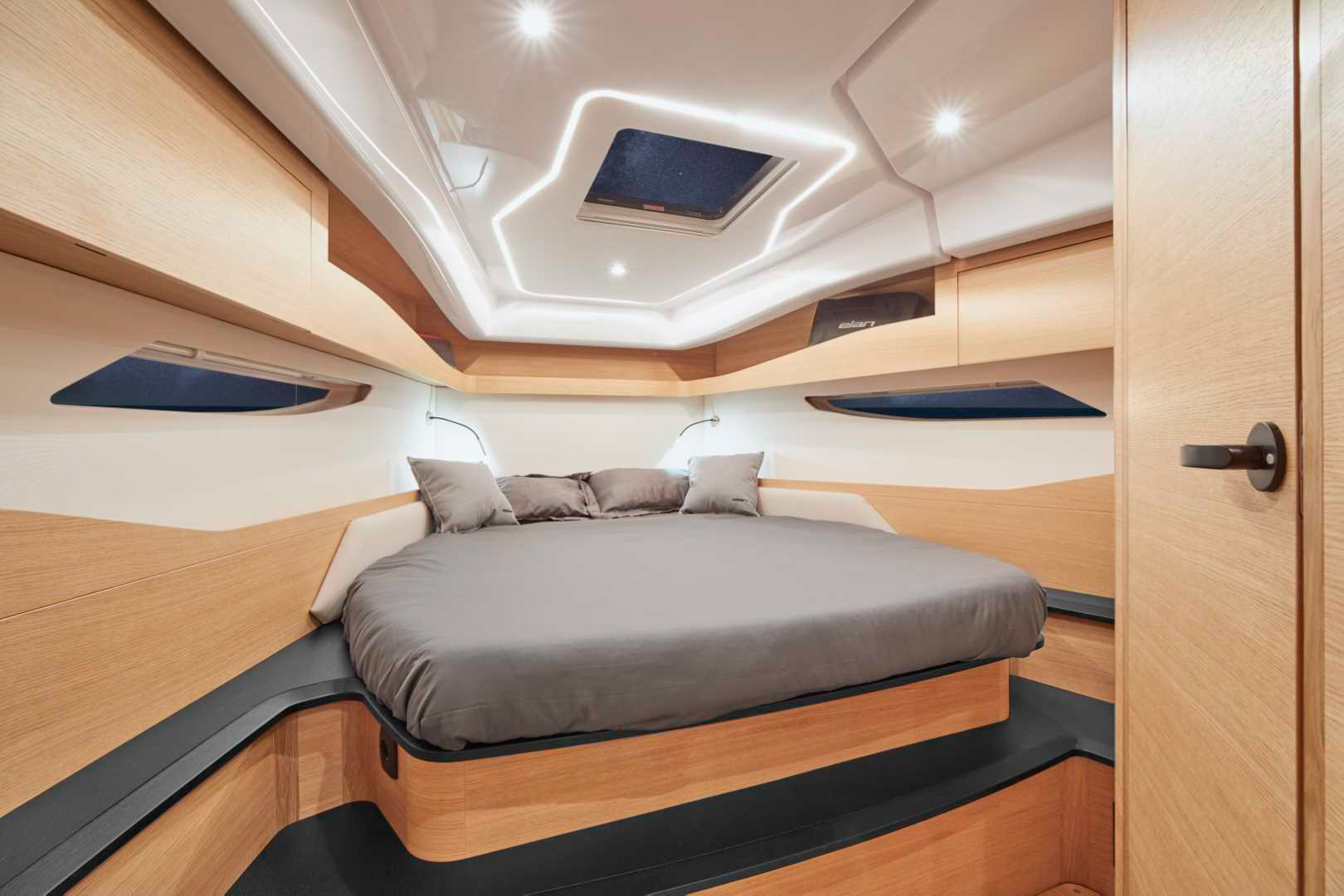

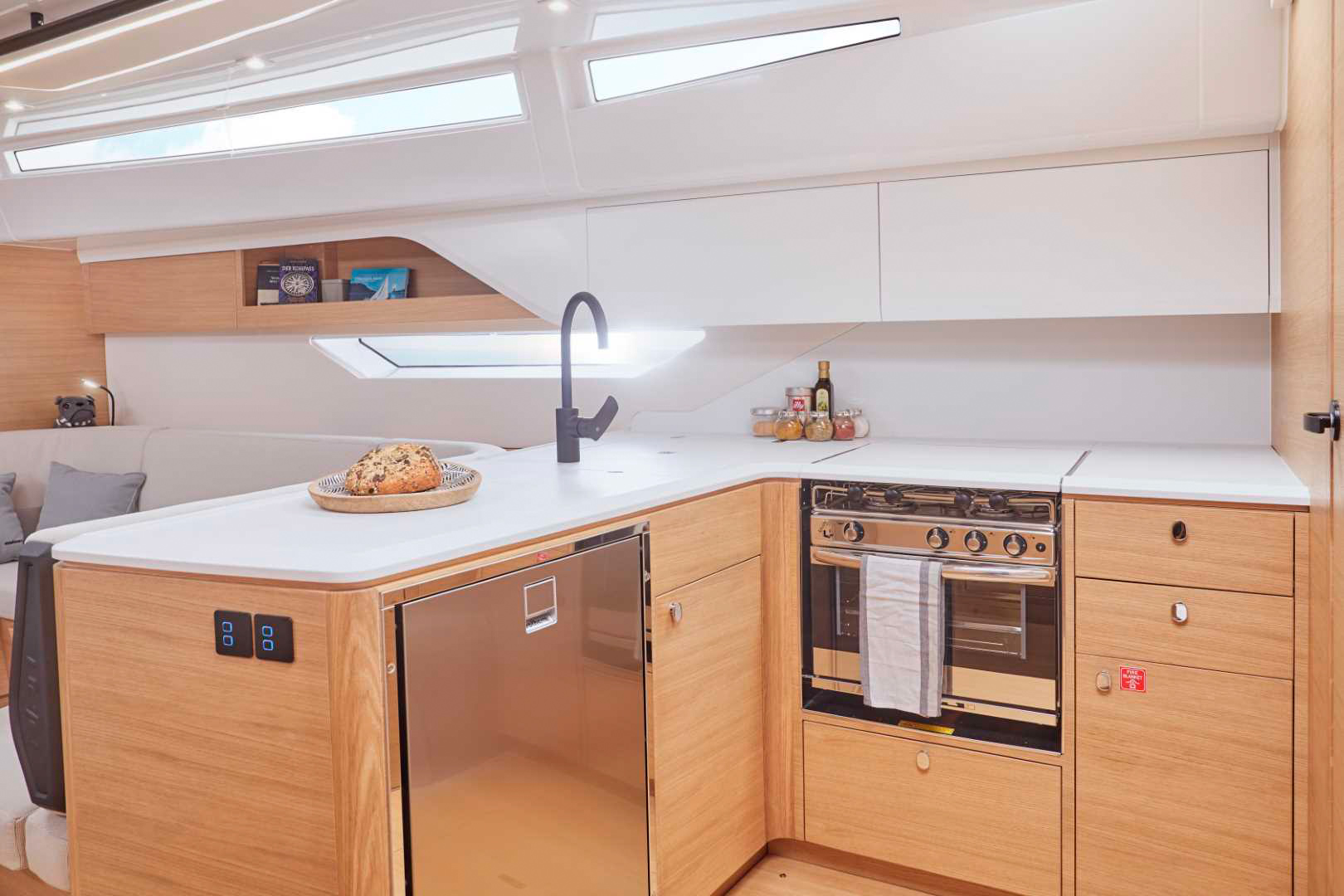

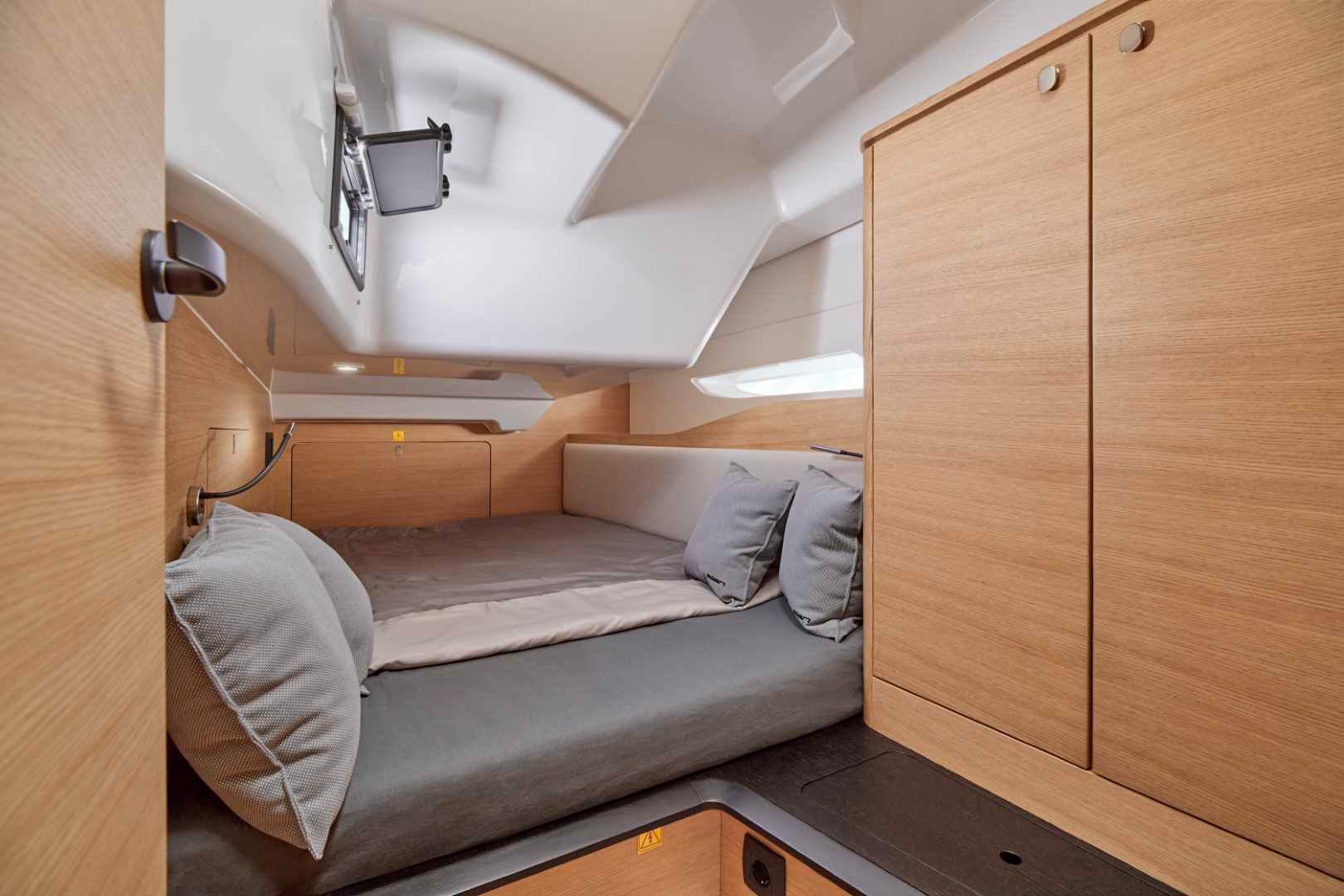

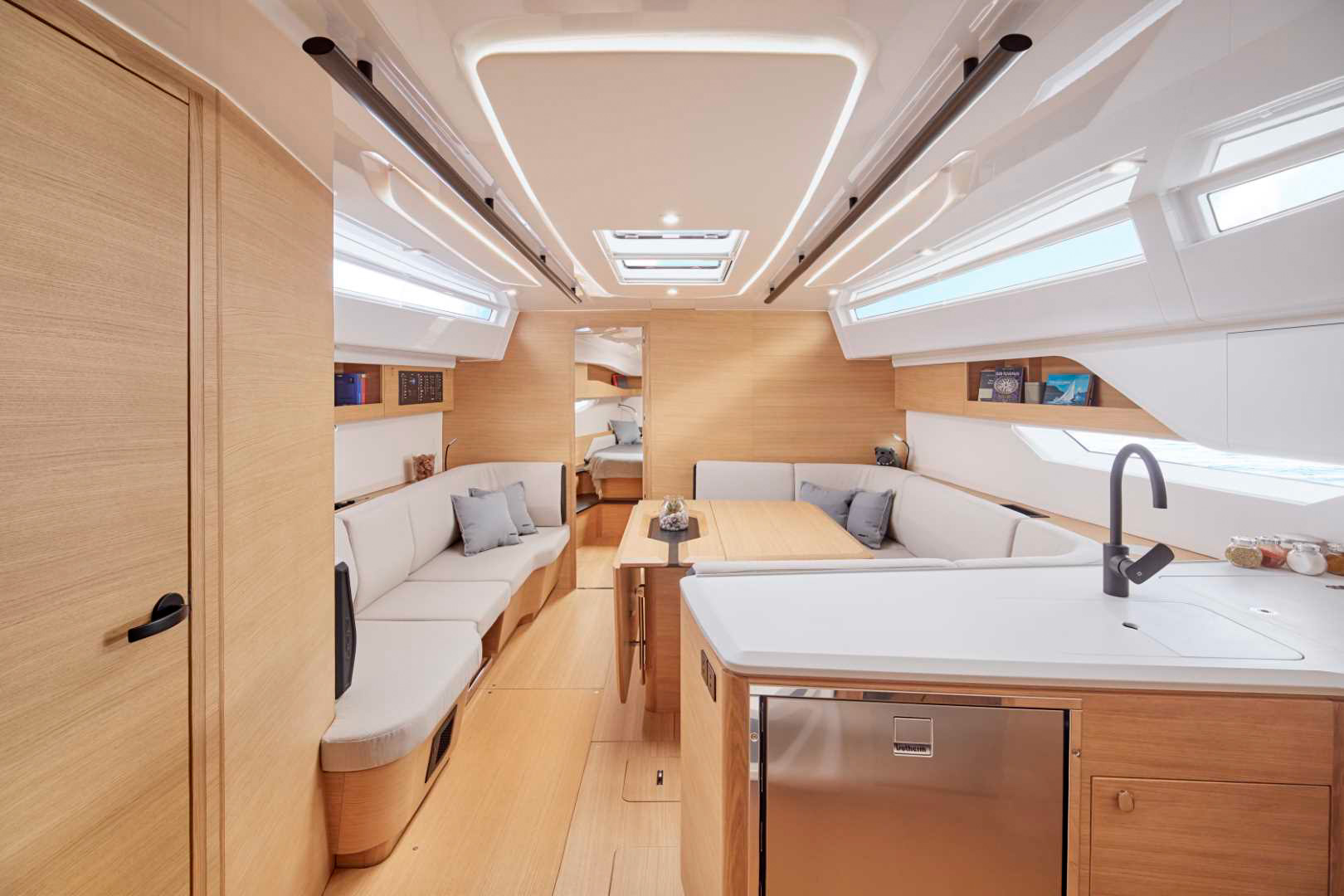

Carefully designed for the perfect blend of aesthetics and functionality by Pininfarina, the enticing and practical interior invites perfect living at sea. The creative form is brought alive by the natural oak veneered interior and enriched with solid wood finish.

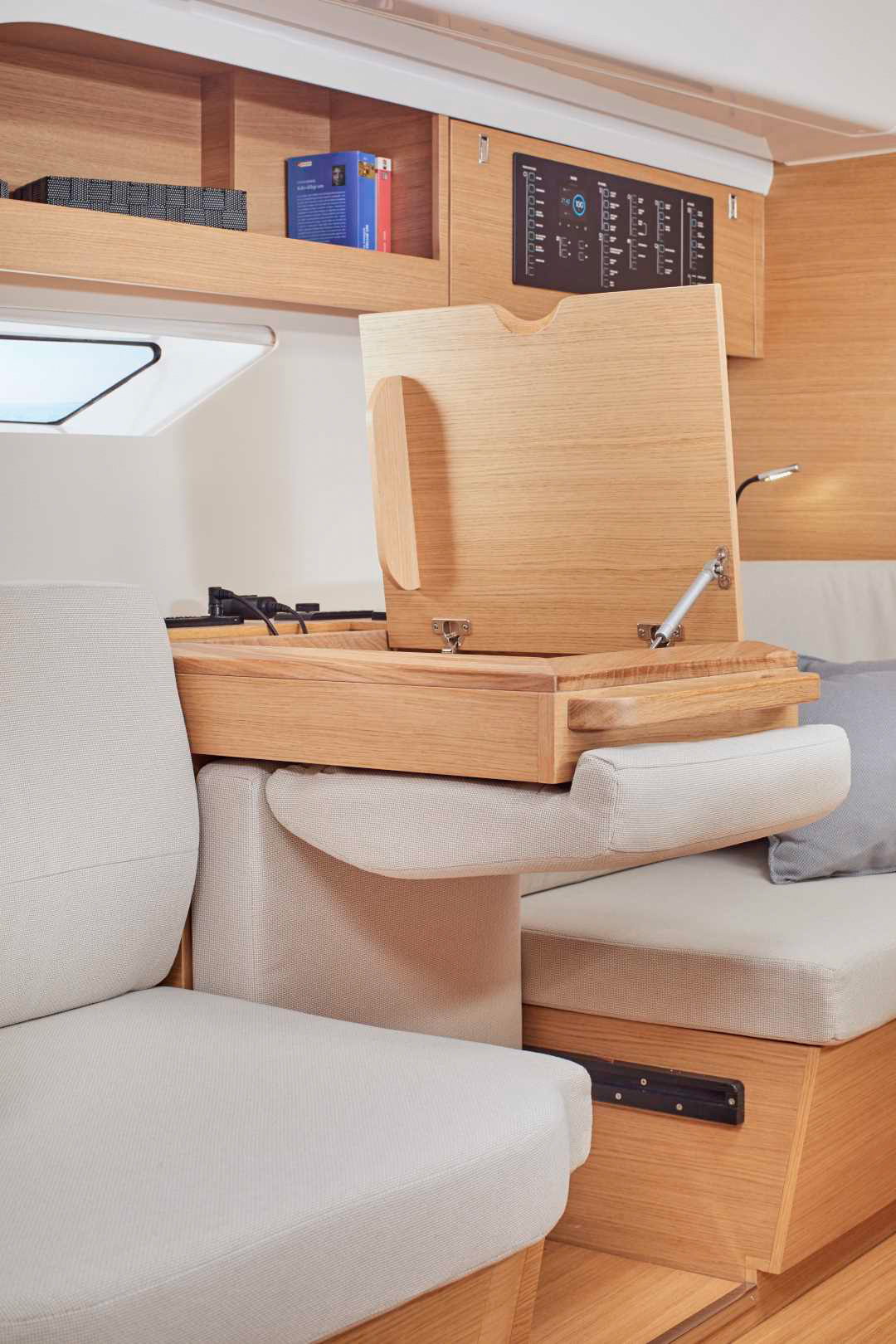

Optional performance okoume furniture keeps the weight down, while not hindering the boat’s luxurious look and feel. The carefully selected colour-scheme complements the yacht’s beautiful lines, flowing from the rear cabins all the way up to the master cabin’s island bed, invoking the feeling of elegance in motion.

Technical Specification

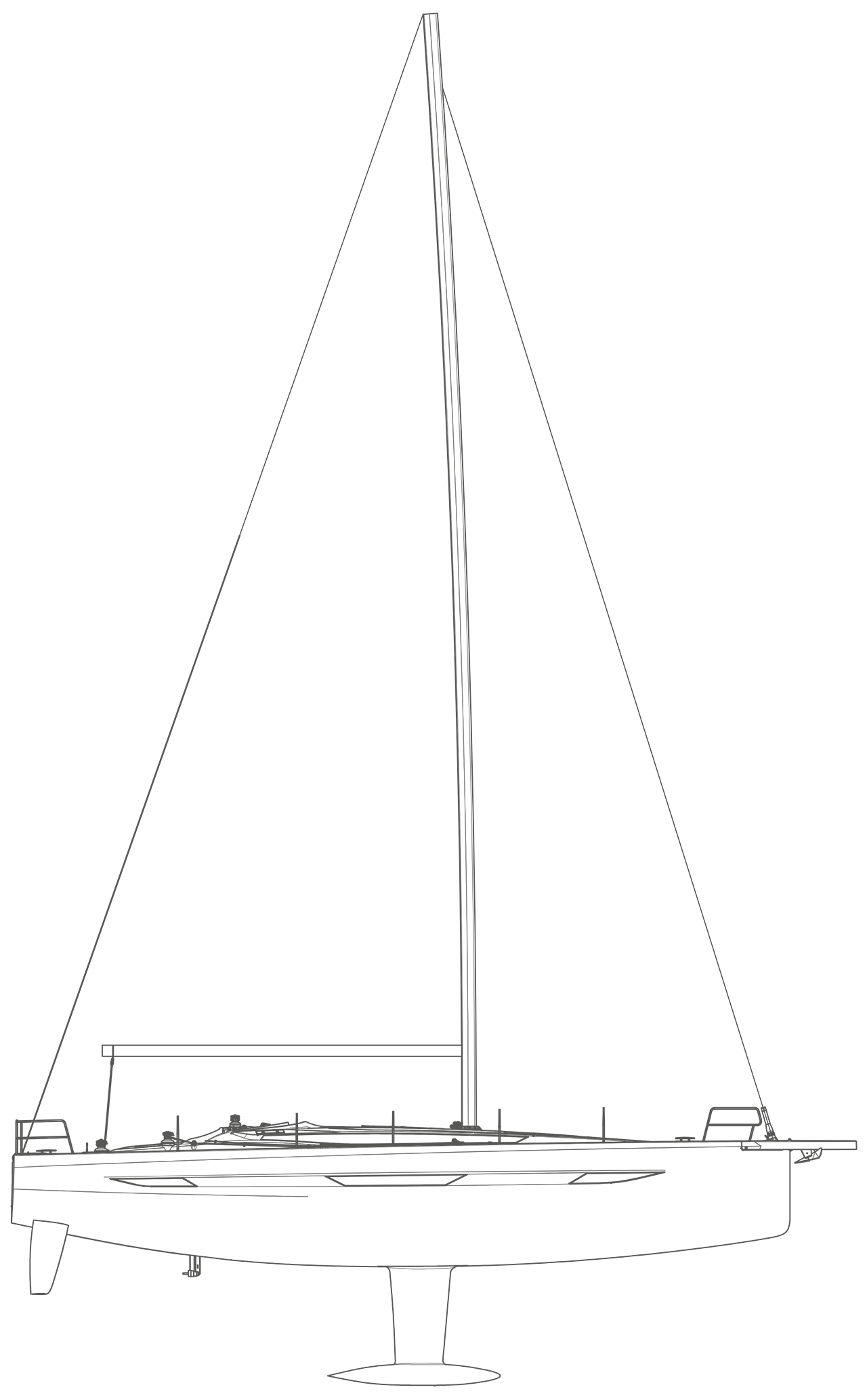

Elan E6 sailing yacht technical side-view drawing
Length Overall 15.30 m | 50’2’’
 Hull length 14.10 m | 46’3’’
 Length at waterline 13.68 m | 44’11’’
 Beam 4.49 m | 14’9’’
 Draft (standard) 2.80 m | 9’2’’
 Draft (option)

2.40 m | 7’10’’ (not mounted)

2.95 m | 9’8’’ (not mounted)

 Light displacement 11.250 kg | 24.802 lbs
 Ballast 3.267 kg | 7.202 lbs
 Water capacity 370 l | 97.7 US gal
 Fuel capacity 240 liters | 63.4 US gal
 Engine (standard)

Yanmar 4JH57

41.9 kW / 57 mhp

 Engine (option)

Yanmar 4JH80

58.8 kW / 80 mhp

 Engine

(electric option)

15 kW Oceanvolt electric
10 kW twin Oceanvolt electric
 Air draft (incl. antenna) 23.26 m | 76’4’’
 Mainsail 68.56 m² | 738 ft²
 Jib 53.71 m² | 578 ft²
 Gennaker (option) 201.7 m² | 2.171 ft²
 I 19.04 m | 62’6’’
 J 5.37 m | 17’4’’
 P 18.30 m | 60’
 E 6.31 m | 20’8’’
Boat design category CE A
Exterior and Interior Design Pininfarina
Naval Architect Humphreys Yacht Design

Equipment

FIXED CARBON BOWSPRIT

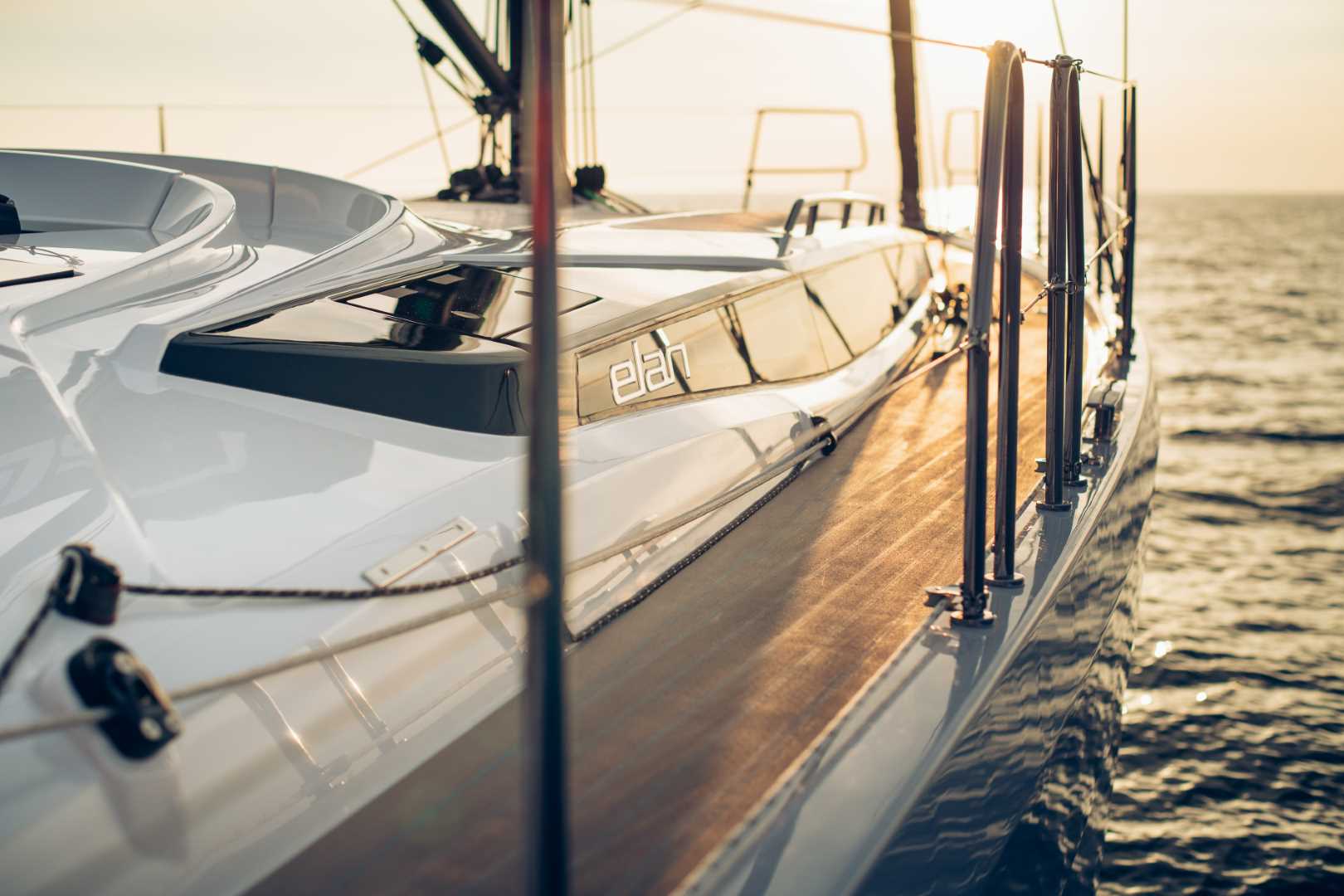

TEAK IN COCKPIT AND ON PLATFORM
Bow thruster
Large bathing platform for family cruising or charter yachts on elan yachts
LARGE BATHNIG PLATFORM
COCKPIT BOXES
Double berth icon
DOUBLE BERTH IN SALOON
Yacht Hull symbol with anchor windlass
Anchor Windlass

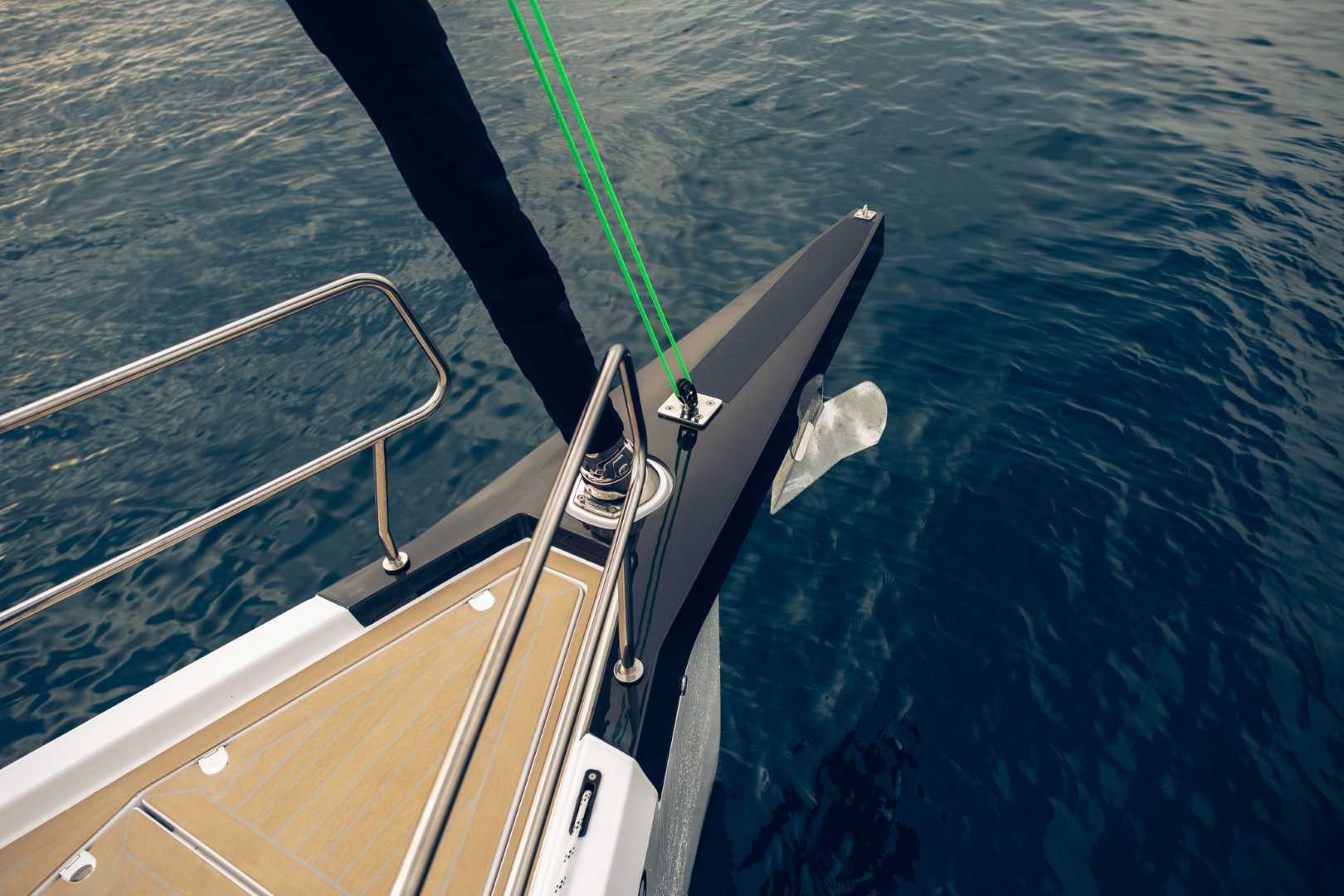

  • FIXED CARBON BOWSPRIT

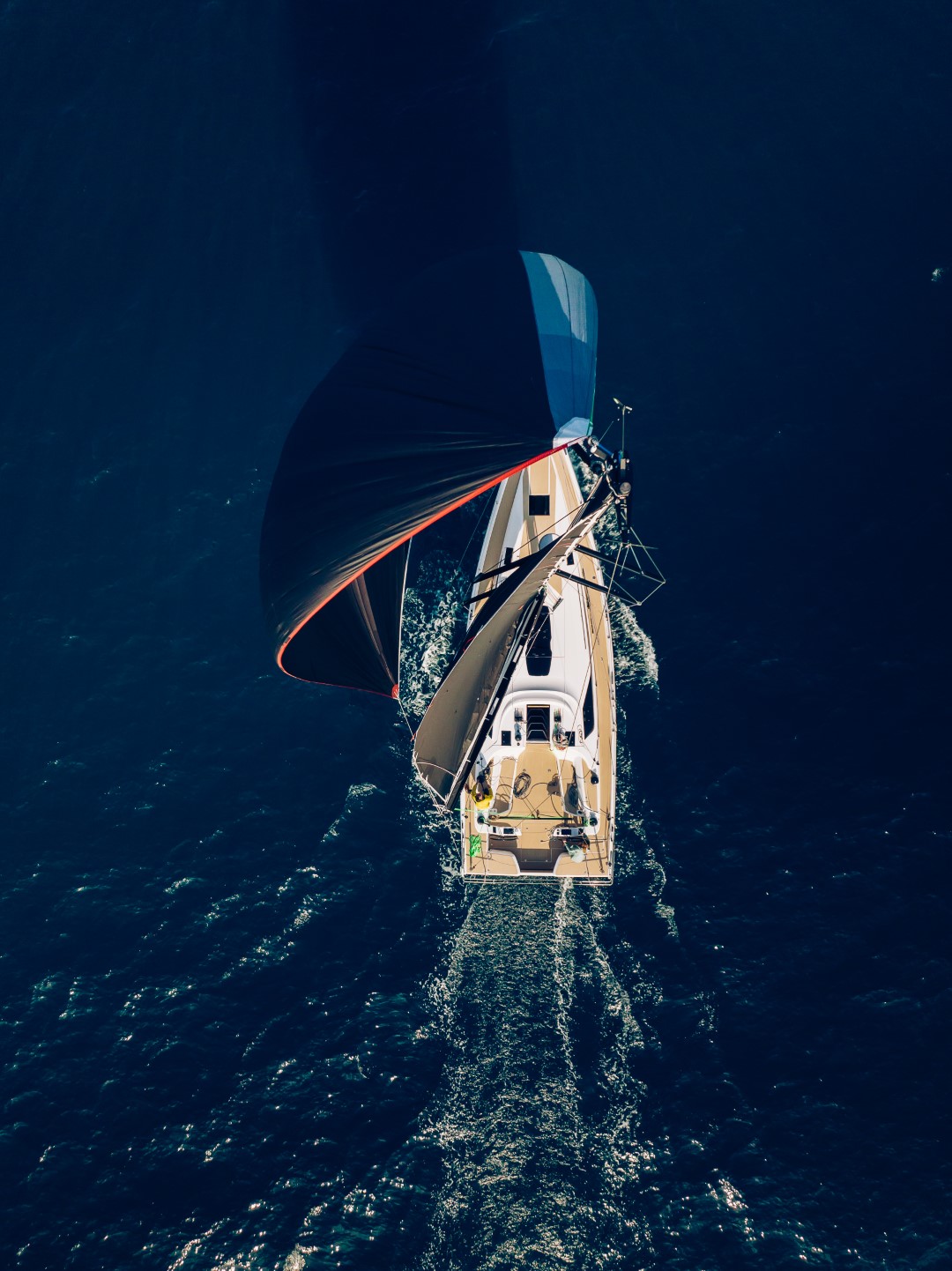

    Installed in standard, the longer carbon bowsprit enables one to sail deeper downing and makes sure the asymetric gennaker or code 0 is less blanketed by the mainsail and more of the sail area is used.

  • Teak in cockpit and on platform

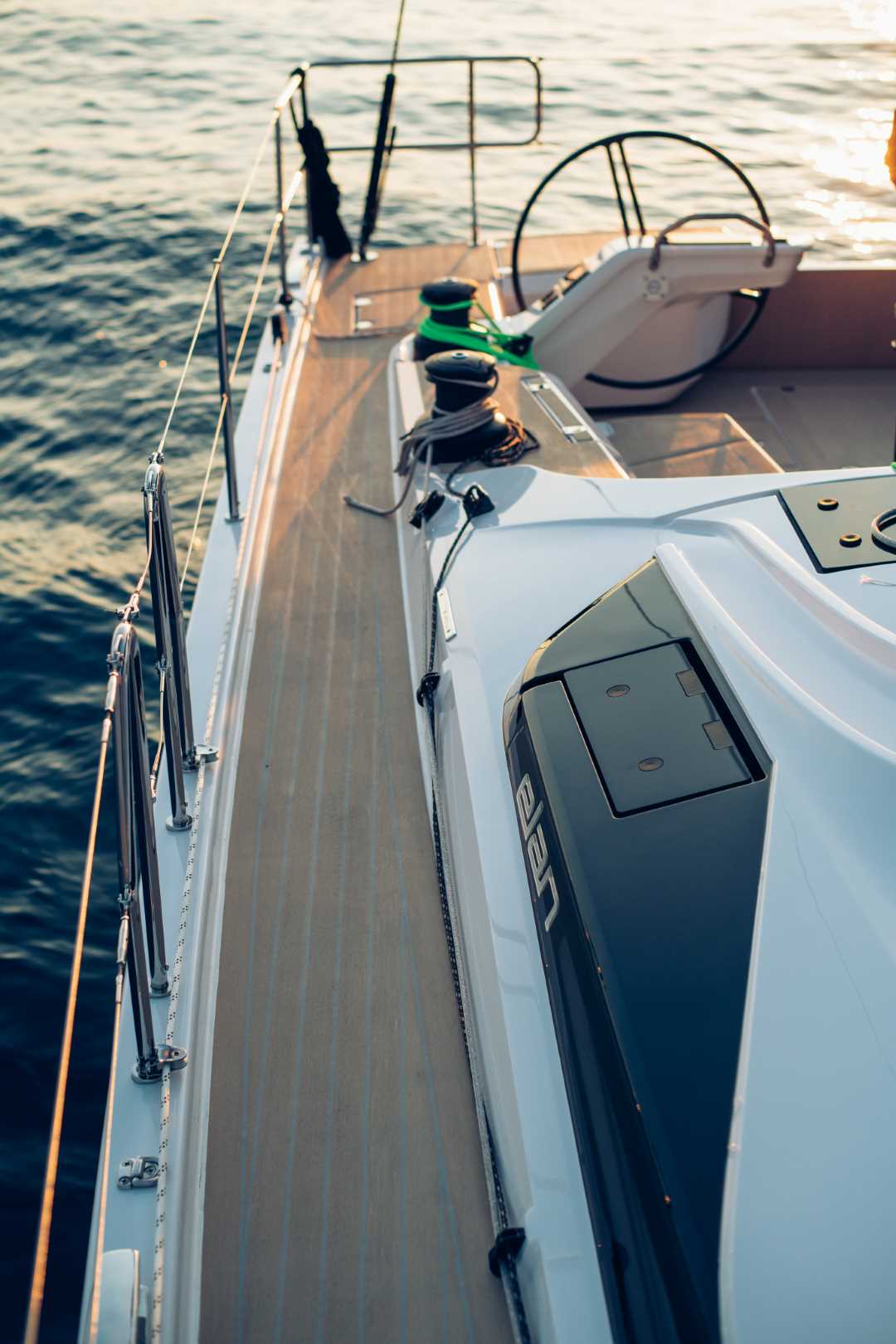

    All yachts come equipped with artificial teak in cockpit and on the bathing platform (if ordered). Can be upgraded to full teak deck and real teak.

  • BOW THRUSTER

    The addition of a bow-thruster makes the life of any skipper easier, and the wallet of the invester less burdened in the long run. Enjoy the benefits of easy manouverability in any marina and avoid collisions.

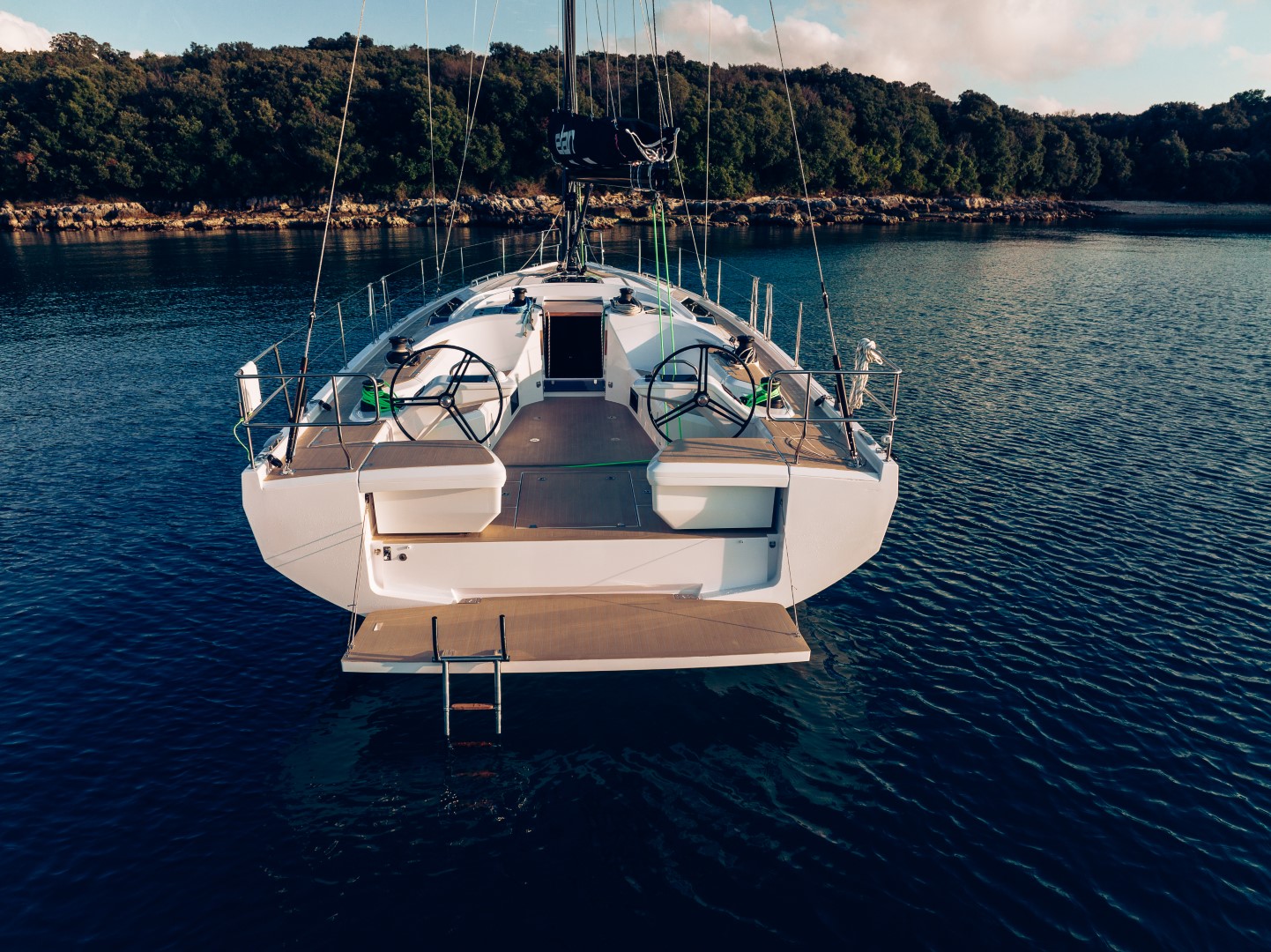

  • LARGE BATHING PLATFORM

    Large bathing platform for family cruising or charter yachts on elan yachts

    Choose the large bathing platform and extend the outside living area substantially. Increase safety for children and pets by closing up the transom. Sunbathe, fish, shower and enjoy life at sea, just above the water surface!

  • COCKPIT BOXES

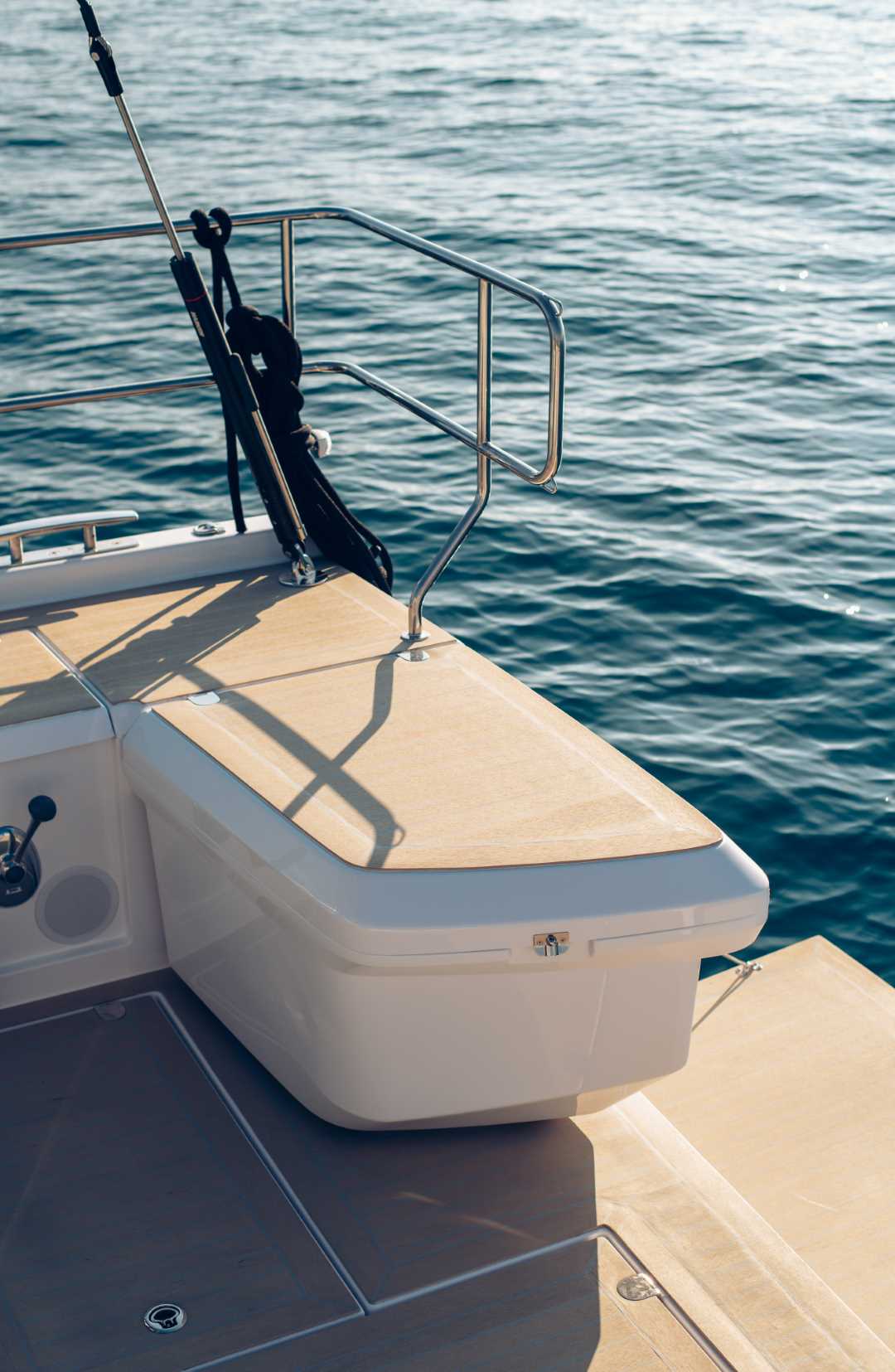

    Incredibly popular and innovative feature, the cockpit boxes serve as additional storage as well as seating space. They can be upgraded to hold a cockpit grill and a refrigerator for ultimate enjoyment aboard!

  • DOUBLE BERTH IN SALOON

    Double berth icon

    As an option, the saloon area can be easily converted into a double berth, enabling more accommodation for larger crews. Perfect for charter yachts and owners with large families or plenty of friends.

  • ANCHOR WINDLASS

    Yacht Hull symbol with anchor windlass

    Deploy your anchor with a simple and convenient push of a button. Manage it at the anchor locker, or with a remote, a feature built for single handed sailors. Be confident at your anchorage with a chaincounter.

FIXED CARBON BOWSPRIT

Installed in standard, the longer carbon bowsprit enables one to sail deeper downing and makes sure the asymetric gennaker or code 0 is less blanketed by the mainsail and more of the sail area is used.

Teak in cockpit and on platform

All yachts come equipped with artificial teak in cockpit and on the bathing platform (if ordered). Can be upgraded to full teak deck and real teak.

BOW THRUSTER

The addition of a bow-thruster makes the life of any skipper easier, and the wallet of the invester less burdened in the long run. Enjoy the benefits of easy manouverability in any marina and avoid collisions.

LARGE BATHING PLATFORM

Choose the large bathing platform and extend the outside living area substantially. Increase safety for children and pets by closing up the transom. Sunbathe, fish, shower and enjoy life at sea, just above the water surface!

Large bathing platform for family cruising or charter yachts on elan yachts

COCKPIT BOXES

Incredibly popular and innovative feature, the cockpit boxes serve as additional storage as well as seating space. They can be upgraded to hold a cockpit grill and a refrigerator for ultimate enjoyment aboard!

DOUBLE BERTH IN SALOON

As an option, the saloon area can be easily converted into a double berth, enabling more accommodation for larger crews. Perfect for charter yachts and owners with large families or plenty of friends.

Double berth icon

ANCHOR WINDLASS

Deploy your anchor with a simple and convenient push of a button. Manage it at the anchor locker, or with a remote, a feature built for single handed sailors. Be confident at your anchorage with a chaincounter.

Yacht Hull symbol with anchor windlass

Yacht Layout

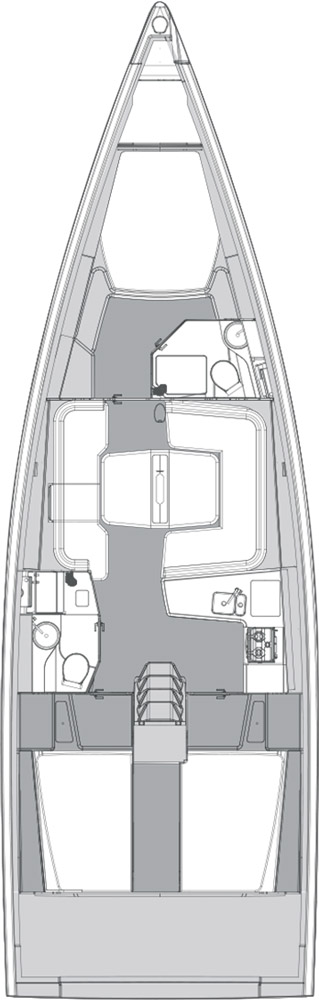

Option 1

3 cabins, 2 heads
Elan E6 Performance Cruiser yacht schematic layout with three cabins and two heads

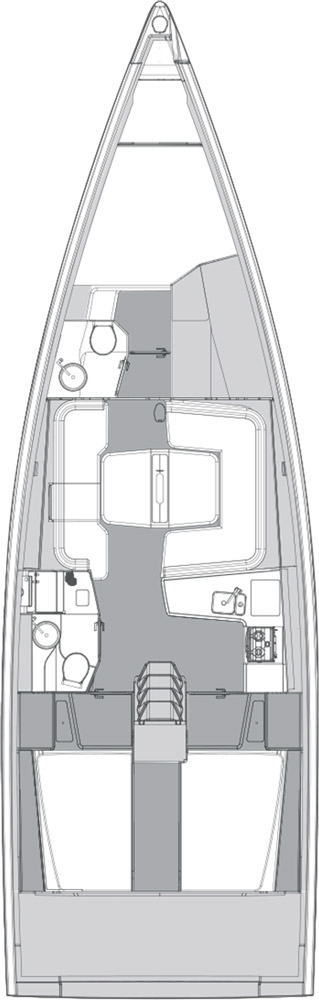

Option 2

3 cabins, 2 heads
Elan E6 yacht schematic view of cabins
  • Option 1

    3 cabins, 2 heads
    Elan E6 Performance Cruiser yacht schematic layout with three cabins and two heads
  • Option 2

    3 cabins, 2 heads
    Elan E6 yacht schematic view of cabins
  • Option 1

    3 cabins, 2 heads
    Elan E6 Performance Cruiser yacht schematic layout with three cabins and two heads
  • Option 2

    3 cabins, 2 heads
    Elan E6 yacht schematic view of cabins
